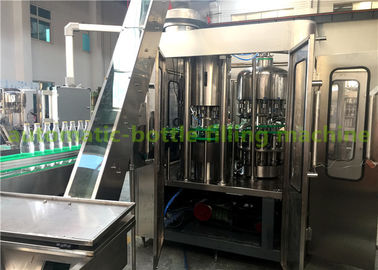

Flavor Water Liquid Bottle Filling Machine , 3 In 1 Juice Production Machine / Line

Flavor Water Liquid Bottle Filling Machine , 3 In 1 Juice Production Machine / Line
Flavor Water Liquid Bottle Filling Machine , 3 In 1 Juice Production Machine / Line

Large Image :  Flavor Water Liquid Bottle Filling Machine , 3 In 1 Juice Production Machine / Line

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF16-12-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Filling Type: Normal Pressure Driven Type: Electric Type
Automatic Grade: Fully-automatic Overall Dimension: 2100*1500*2200mm
Warranty: One Year For Free Capacity: 4000BPH(500ml)
Control System: PLC+Touch Screen Color: Silver Gray
High Light:

glass bottling equipment

,

glass bottle filling and capping machine

Flavor Water Liquid Bottle Filling Machine , 3 In 1 Juice Production Machine / Line



Video show

https://www.youtube.com/watch?v=GBgpzQLpioU



1. All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
2. 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
3. 304/316 stainless steel washing pump make the machine more durable .





1. 304/316 Stainless steel high precision filling nozzle
2. Filling volume adjustable in fine rank, same liquid level after filling
3. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4. 304/316 stainless steel filling pump
5. Efficient spray nozzle rinse thoroughly and save water for flushing





1. Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2. All 304/316 stainless steel construction
3. No bottle no capping
4. Automatic stop when lack of bottle
5. Capping effect is stable and reliable ,Defective rate ≤0.2% .



Technique parameter

Model CGF16-12-6 CGF18-18-6 CGF24-24-8
Productivity 3000BPH 6000BPH 10000BPH
Rinsing Head 16 18 24
Filling Head 12 18 24
Capping Head 6 6 8
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 1.5 m3/h 3 m3/h 6 m3/h
Rinsing Water Consumption 0.5 m3/h 1 m3/h 2 m3/h
Motor Power 5.88kW 6.68kW 7.68kW
Voltage 380V
Dimension

(L*W*H)

2100*1500*2200mm

(L×W×H) 2450*1800*2200mm (L×W×H) 2750*2180*2200mm
Weight 2500kg 3000kg 5300kg
Filling Principle Gravity Filling



Features:

The juice filling machine is used to fill PET heat-resistant bottle for fruit tea, juice and other high-temperature juice.

The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technology

The machine can be connected with UHT, CIP control center and bottle-invert sterilizer

The machine structure is reasonable and firm, the running state is stable

The suspension bottle neck catcher allows the machine change the bottle type easily

Safe protective devices ensure safety of operator and machine

Magnetic torsion type screw capper ensures the tightness of the cap and avoids bottle damage

The module of screw capper ensures the tightness of the cap and avoids bottle damage

Slight negative-pressure gravity circumfluence filling system increases juice filling accuracy and reduces contamination

Unique control mechanism keeps circumfluence volume below 5%





We can also provide you with water treatment system

1. Raw water tank + Raw water pump
2. Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3. Reverse Osmosis (one level)
4. UV sterilizer
5. Finished water tank + Pure water pump

1. Stainless steel high pressure film shell
2. All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3. Online type pressure auto self-protection device
4. Online type electricity indicator (with stable compensation)
5. System safe protecting and alarm system
6. System frame
