Automatic Glass Bottle Filling Machine For Water / Vodka / Wine / Rum / Whiskey

China Automatic Glass Bottle Filling Machine For Water / Vodka / Wine / Rum / Whiskey supplier
Automatic Glass Bottle Filling Machine For Water / Vodka / Wine / Rum / Whiskey supplier Automatic Glass Bottle Filling Machine For Water / Vodka / Wine / Rum / Whiskey supplier Automatic Glass Bottle Filling Machine For Water / Vodka / Wine / Rum / Whiskey supplier Automatic Glass Bottle Filling Machine For Water / Vodka / Wine / Rum / Whiskey supplier Automatic Glass Bottle Filling Machine For Water / Vodka / Wine / Rum / Whiskey supplier

Large Image :  Automatic Glass Bottle Filling Machine For Water / Vodka / Wine / Rum / Whiskey

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF16-12-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Filling Type: Normal Pressure Driven Type: Electric Type
Weight: 2000KG Overall Dimension: 2100*1500*2200mm
Power: 5.88kw Capacity: 4000BPH(500ml)
Control System: PLC+Touch Screen Color: Silver Gray



Automatic Glass Bottle Filling Machine For Water / Vodka / Wine / Rum / Whiskey



Video show

https://www.youtube.com/watch?v=GBgpzQLpioU

Automatic Glass Bottle Filling Machine For Water / Vodka / Wine / Rum / Whiskey



Features:

The juice filling machine is used to fill PET heat-resistant bottle for fruit tea, juice and other high-temperature juice.

The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technology

The machine can be connected with UHT, CIP control center and bottle-invert sterilizer

The machine structure is reasonable and firm, the running state is stable

The suspension bottle neck catcher allows the machine change the bottle type easily

Safe protective devices ensure safety of operator and machine

Magnetic torsion type screw capper ensures the tightness of the cap and avoids bottle damage

The module of screw capper ensures the tightness of the cap and avoids bottle damage

Slight negative-pressure gravity circumfluence filling system increases juice filling accuracy and reduces contamination

Unique control mechanism keeps circumfluence volume below 5%

Airtight valve made of non-plastic material prevents worn-out particles from dropping into bottles adversely affecting product quality

High efficient clean air filter circulation system ensures high sanitary requirements

Low overall machines noise that is comparable to any internationally known equipments in its class

Self-lubricationg system imported from America provides continuous smooth operation



Technique parameter

Model CGF16-12-6 CGF18-18-6 CGF24-24-8
Productivity 3000BPH 6000BPH 10000BPH
Rinsing Head 16 18 24
Filling Head 12 18 24
Capping Head 6 6 8
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 1.5 m3/h 3 m3/h 6 m3/h
Rinsing Water Consumption 0.5 m3/h 1 m3/h 2 m3/h
Motor Power 5.88kW 6.68kW 7.68kW
Voltage 380V
Dimension

(L*W*H)

2100*1500*2200mm

(L×W×H) 2450*1800*2200mm (L×W×H) 2750*2180*2200mm
Weight 2500kg 3000kg 5300kg
Filling Principle Gravity Filling



Automatic Glass Bottle Filling Machine For Water / Vodka / Wine / Rum / Whiskey

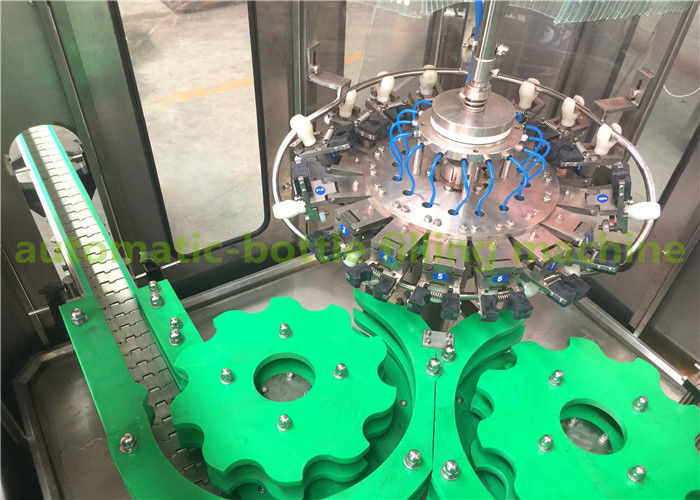

12 heads filling part

1). The washing bottle, filling, sealing are connecting with the thumbwheel card bottleneck transportation methods.

2). The rotating disk is all made of SUS304 stainless.

3). Filling method is gravity filling.

4). Filling valve manufactured by SUS304.

5). The filling valve structure design is reasonable, the filling quantity is accurate.

Automatic Glass Bottle Filling Machine For Water / Vodka / Wine / Rum / Whiskey

6 heads capping part

The capping machine is the highest precision in 3-in-1 unit machine, on the reliability of equipment operation, has enormous influence on the defective rate of the product.



Introduced the world's most advanced Italian AROL capping machine technology, combining with the filling machine production experience improvement, and ask college of Shanghai Jiaotong university mechanical engineering institute of electrical and mechanical design and automation technology of experts and professors to help design.
