| Material: | Stainless Steel SUS304 | Machine Name: | Carbonated Beverage Filling Machine |
|---|---|---|---|
| Function: | Rinse Fill Cap | Filling Material: | Carbonated Drink, Soda Water, Sparkling Water |
| Capacity: | 6000-8000BPH | Suitable Bottle: | 250-2000ml |
| High Light: | soda bottling machine,carbonated beverage filler |
||

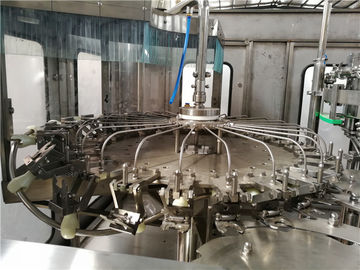

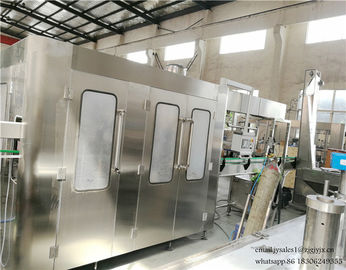

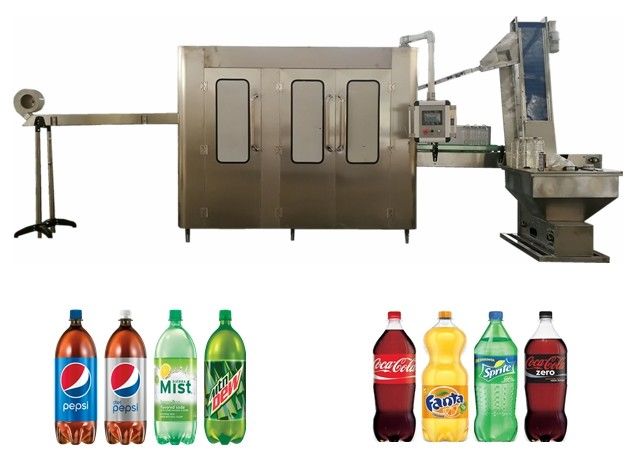

Automatic Carbonated Drink Filling Machine , Soft Drink Making Machine
1.This Bottle carbonated beverage filling machine is a unique design combining the three machines of can washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines.
2.It is applicable for carbonated drink filled in plastic bottles and capped withplastic caps, with optional capacity from 2000BPH to 30000BPH.
3.Bottle Carbonated beverage bottling machine is easy to change the shape of bottles, which can be done by changing thethumb wheel without adjusting the height of the machine.
4.Adopting suspensory transmission gear can easily upkeep and be repaired.
5.The machine case and the parts contacting with the materials are made ofstainless steel which ensures the good external look and easy washing.

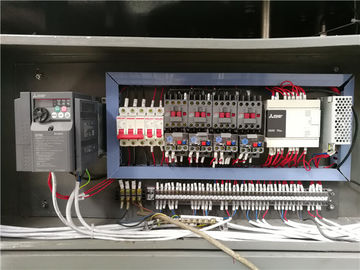

6. Bottle carbonated beverage filling machine uses frequency changer to conrtol the mainmachine motor. And it has an output number indicating function which is easy tocontrol the adjustment of the output.
| Model: | CGF24-24-8 |
| Capacity: 500ml | 5000-7000 |
| Bottle shape: | Roud or square |
| PET bottle: (mm) | (Bottle Diameter): φ50-φ110mm (Height): 150-340mm |
| cap: | PE srew cap |
| filling precision: | ≤ ± 5mm |
| filling pressure: (Mpa) | 0.15-0.35 |
| rinsing pressure: (Mpa) | 0.2-0.25 |
| filling volume: (L) | 8 |
| overall size: (mm) | 3800*2950*2400 |
| weight: (kg) | 6500 |
