Automatic Beverage Filling Machine For Bottling Water / Mineral Water Production Line

China Automatic Beverage Filling Machine For Bottling Water / Mineral Water Production Line supplier
Automatic Beverage Filling Machine For Bottling Water / Mineral Water Production Line supplier Automatic Beverage Filling Machine For Bottling Water / Mineral Water Production Line supplier Automatic Beverage Filling Machine For Bottling Water / Mineral Water Production Line supplier Automatic Beverage Filling Machine For Bottling Water / Mineral Water Production Line supplier Automatic Beverage Filling Machine For Bottling Water / Mineral Water Production Line supplier

Large Image :  Automatic Beverage Filling Machine For Bottling Water / Mineral Water Production Line

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Capacity: 10000BPH(500ml) Weight: 5500kg
Filling Type: Normal Pressure Warranty: One Year For Free
Control: PLC+touch Screen Power: 6.57kw
Structure: Washing Filling Capping 3-in-1 Monoblock

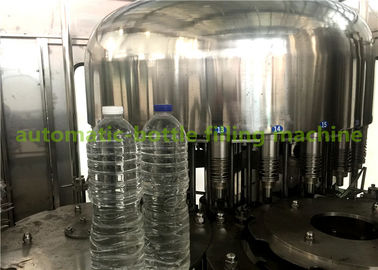

Automatic Beverage Filling Machine For Bottling Water / Mineral Water Production Line


Specifications

1. Capacity:10000bottles per hour based on 500ml PET bottle

2. Bottle volume:200ml-2000ml(if the bottle is larger than 2000ml,the machine need to be expanded)

3. Washing Filling Capping 3-in-1 unit

4. All the bottles' mouth diameter need to be kept the same,if they want to be filled in one machine.



Flow chart of complete bottled mineral water

A) Bottle production line

PET Resin--Injection moulding machine--Botlte blowing machine--PET bottle

B) Water treatment

system Raw water--Pump--Silica sand filter--Carbon filter--Water softner--Reverse Osmosis --UV sterilizer-Ozone generator--Finished water tank

C) Filling & Packing part

Bottle unscramble--Air conveyor--Washing, filling, capping 3in1machine—Lightchecker--Blow dryer--Dater printer --Lableing machine--Packing machine –Stock



Characteristics

1. This machine has a compact structure, perfect control system, easy to operate and highly automated

2. The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.

3. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

4. The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.

5. This machine has a high efficient cap arranging system, perfect cap feeding and protection device.

6. Equipped with perfect clean management system to ensure the bottle clean.

7. Only by changing the star-wheel, can realize to fill the changed bottle shape.

8. The machine adopts perfect overload protective device can ensure the operator and machine safe.

9. This machine adopts adjustable frequency converter.

10. The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.

11. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

12. The electric components and pneumatic components are all introduced from world famous brand products.



Technical parameter

Model CGF24-24-8
Production capacity(500ml)(b/h) 8000-10000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80;
Height Height:130-280
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa) 0.18
Water consumption for Water bottle (kg/h) 800
Spraying position 6
Dripping bottle position 3.5
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.4
Total power 6.57
Total weight 5500
Dimension(L*W*H) 2750*2180*2200


Automatic Beverage Filling Machine For Bottling Water / Mineral Water Production Line



Automatic Beverage Filling Machine For Bottling Water / Mineral Water Production Line



Automatic Beverage Filling Machine For Bottling Water / Mineral Water Production Line
