Coke Cola / Carbonated Beverage Bottling Machine For CSD Drink Filling Line 6.57kw

China Coke Cola / Carbonated Beverage Bottling Machine For CSD Drink Filling Line 6.57kw supplier
Coke Cola / Carbonated Beverage Bottling Machine For CSD Drink Filling Line 6.57kw supplier Coke Cola / Carbonated Beverage Bottling Machine For CSD Drink Filling Line 6.57kw supplier Coke Cola / Carbonated Beverage Bottling Machine For CSD Drink Filling Line 6.57kw supplier Coke Cola / Carbonated Beverage Bottling Machine For CSD Drink Filling Line 6.57kw supplier Coke Cola / Carbonated Beverage Bottling Machine For CSD Drink Filling Line 6.57kw supplier

Large Image :  Coke Cola / Carbonated Beverage Bottling Machine For CSD Drink Filling Line 6.57kw

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: DGCF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard Wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Bottle Volume: 200ml-2L Dimension(L*W*H): 2750*2180*2200mm
Power: 6.57kw Weight: 4000kg
Filling Pressure: Isobaric Pressure Filling Material: Gas Contained Beverage
Capacity: 6000BPH(500ml ) Machine Material: Stainless Steel 304





Coke Cola / Carbonated Beverage Bottling Machine For CSD Drink Filling Line 6.57kw



Characteristics

1. Multiple Usage: The filler provide a comprehensive range of different bottle sizes (height 150-320mm, Dia. 50-100mm)

2. Easy adjustment: An automatic height adjust device is available which offers you very easy operation only by pressing a button. For filling different size of bottles, relative parts can be easily and quickly changed without tools.

3. Advanced construction features: The filler carousel is mounted on a huge heavy duty combined bearing, which guarantees optimum smooth running of the filling bowl. The centering bell assemblies precisely locate the necks of bottles onto filling valves. The design of suspended and cantilevered bottle lift cylinders and bottle platforms allows easy, unrestricted remove of broken glass following bottle explosion which, with the addition of well protective of piston rods, minimizes the risk of damage of sliding surface of cylinders.

4. High efficiency and low beverage loss: Owing to the special constructions features the machinery can run at high speed with low rate of glass broken. In the event of bottle breakage a burst flushing system can remove any fragments from the bottle platform, filling valve and centering bell assembly, filling valve automatically be closed in very short time avoiding beverage and gas loss.

5. Sanitation: All parts which contact with beverage are made with high quality polished stainless steel. The CIP system offers automatically cleaning and sterilization of the filler.

6. Using PLC control the machine monitors, the filling liquid level automatically. Made up of high quality stainless steel, it is sanitation. Operation and maintenance is convenient.



Details

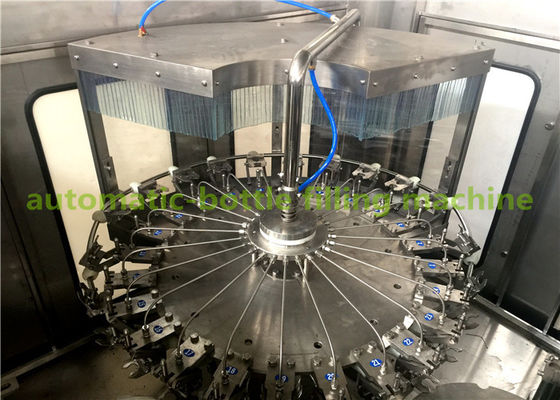

Washer Station

All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean

304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

304 stainless steel washing pumps



Filler Station:

The filling station using all metal (not plastic) 304 stainless steel contact parts gives consistent accurate, high precision filling nozzle together with vacuum pump regurgitant system, to ensure the high filling precision, ensure same filling level

Filling temperature is adjustable.

Centre 304L stainless steel filling nozzle used which are designed for maximum flow rate and minimum bottle distortion during filling.

All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean



Capper station:

Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

All 304stainless steel construction

No bottle no capping,

Automatic stop when lack of caps



Technique parameter

Model: DCGF16-12-6 DCGF18-18-6 DCGF24-24-8 DCGF32-32-10 DCGF40-40-12
Production Capacity(500ml)(B/H) 2000-4000 4000-6000 6000-8000 8000-10000 10000-12000
Bottle standard (mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
Suitable Cap shape

Plastic srew cap



Filling precision

≤±5mm



Filling pressure(Mpa) <0.4
Water pressure of Washing bottle(Mpa) 0.18-0.25
Water consumption for water bottle(kg/h) 1300 2000 2500 3000 3000
Spraying Position 5 5 6 12 12
Dripping Bottle Position 2.5 3.0 3.5 7 7
Gas source Pressure(Mpa) 0.4
Gas consumption(m³/min) 0.3 0.4 0.4 0.5 0.5
Total power(kw) 5.03 5.03 6.57 8.07 8.07
Overall size:(mm) 2100*1500*2200 2450*1800*2200 2750*2180*2200 3600*2200*2600 3600*2200*2600
Weight: (kg) 2000 3000 4000 5000

5000





Coke Cola / Carbonated Beverage Bottling Machine For CSD Drink Filling Line 6.57kw



Coke Cola / Carbonated Beverage Bottling Machine For CSD Drink Filling Line 6.57kw



Coke Cola / Carbonated Beverage Bottling Machine For CSD Drink Filling Line 6.57kw
