Semi - Auto 5 Gallon Water Filling Machine / 19 Liter Bottle Washing Machine

China Semi - Auto 5 Gallon Water Filling Machine  / 19 Liter Bottle Washing Machine supplier
Semi - Auto 5 Gallon Water Filling Machine  / 19 Liter Bottle Washing Machine supplier Semi - Auto 5 Gallon Water Filling Machine  / 19 Liter Bottle Washing Machine supplier Semi - Auto 5 Gallon Water Filling Machine  / 19 Liter Bottle Washing Machine supplier Semi - Auto 5 Gallon Water Filling Machine  / 19 Liter Bottle Washing Machine supplier Semi - Auto 5 Gallon Water Filling Machine  / 19 Liter Bottle Washing Machine supplier

Large Image :  Semi - Auto 5 Gallon Water Filling Machine / 19 Liter Bottle Washing Machine

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: QGF-150

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Material: Stainless Steel 304 Dimension(L*W*H): 2800*1100*1600mm
Processing Type: Water Bottle Volume: 3-5gallon
Power: 1.78kw Weight: 700kg
Voltage: 380V/50Hz Warranty: One Year For Free

Semi - Auto 5 Gallon Water Filling Machine / 19 Liter Bottle Washing Machine

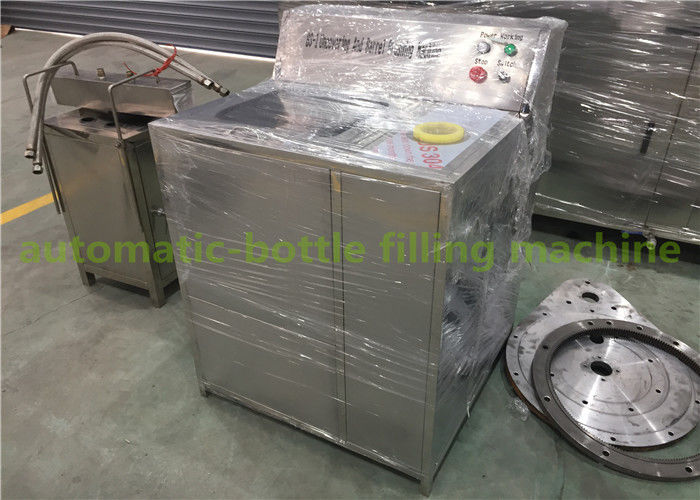

Semi-automatic 5 gallon bottle washing machine



Description

1. This semi-automatic decapper and washer is the corollary equipment of 5 gallon barrel drinking water production line. It is used for the decapping and washing of the recycled barrel before filling, increasing efficiency. It is suitable for the small capacity like 150bph.

2. The machine is made of high quality stainless steel (304#, 316#), resistant to corrosion, easy to clean.

3. Main part of the machine which contact with liquid is made of high quality stainless steel, resistant to corrosion, easy to clean.

4. Main electrical element is from SIEMENS, OMRON; pneumatic element is from AIRTAC.

Technical parameter:
Material: SUS304
Power: 0.37KW
Dimension: 900*800*1100mm
Weight: 100kg

Semi - Auto 5 Gallon Water Filling Machine  / 19 Liter Bottle Washing Machine



5 gallon water filling machine integrates bottle washer, filler and sealer into one unit.

Semi - Auto 5 Gallon Water Filling Machine  / 19 Liter Bottle Washing Machine
In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.

Features

1).It is ideal equipment for producing mineral water, super-pure water,space water and distilled water.

2).Advanced PLC control system

3).The key parts are imported and their quality is reliable.

4).Barreled water production line machine is made of stainless steel.

5).Its structure is reasonable and its operation is convenient.

6).Easy cleaning and corrosion.

Semi - Auto 5 Gallon Water Filling Machine  / 19 Liter Bottle Washing Machine

Main parameter

Model QGF-150 QGF-300 QGF-450 QGF-600 QGF-900
Filling heads 1 2 3 4 6
Volume 18.9 18.9 18.9 18.9 18.9
Barrel size 270*490 270*490 270*490 270*490 270*490
Capacity 150 300
Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
Gas consumption 0.37 0.6 0.8 1 1.2
Motor power 1.75 3.8 3.8 7.5 9
Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Weight 700 1200 1600 2000 3500
Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

4200*2300*1600

2800*1000*1600
