Aseptic 5-In-1 Milk / Coffee / Juice Hot Filling Machine Juice Bottle Filling Machine

Aseptic 5-In-1 Milk / Coffee / Juice Hot Filling Machine Juice Bottle Filling Machine
Aseptic 5-In-1 Milk / Coffee / Juice Hot Filling Machine Juice Bottle Filling Machine

Large Image :  Aseptic 5-In-1 Milk / Coffee / Juice Hot Filling Machine Juice Bottle Filling Machine

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF18-18-18-18-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Driven Type: Electric Bottle Volumn: 200-2000ml
Structure: Rotary Weight: 6000kg
Bottle Type: Glass Bottle Machiner Material: Stainless Steel 304
Filling Temperature: Hot Filling Capacity: 2000-3000BPH(500ML)
High Light:

fruit juice production line

,

juice bottling machine

Aseptic 5-In-1 Milk / Coffee / Juice Hot Filling Machine Juice Bottle Filling Machine


Video show

Specific information
1. This 5-in-1 unit machine is suitable for glass bottle
2. Capacity:2000-3000 bottles per hour
3. Hot filling machine with back-flow system
4. It can be used for filling juice,milk,tea,water,non-gas contained beverage.

This machine is my company's advanced technology development.It is customized according to our customer's special requirements. It intergrates washing by disinfectant,washing by pure water,sterilizing by steam,filling and capping in one unit machine.It also have beautiful overall appearance and excellent mechanical operation functions.

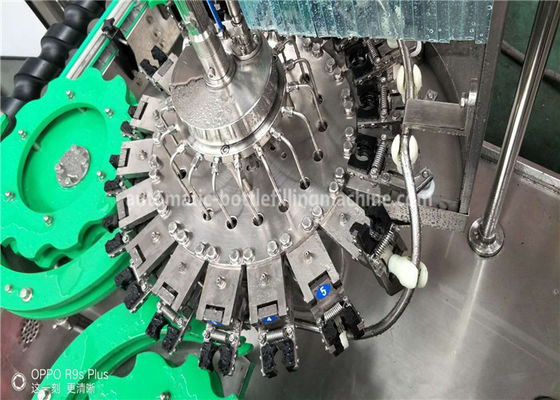

Rinsing(disinfectant,pure water): grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely.
Sterilzing:use a steam generator to provide the steam,the steam sterilzing part is isolated,It also use a cap sterilizer to sterilzing the caps.
Filling: hot filling with holding bottle neck; the special back-flow type of the filling valve can avoid leakage after filling and also control liquid level accurately.
Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.

Features

1. All the machine part which contact with liquid is high quality stainless steel 304.
2. The relative fittings and components are from international famous brands,such as Siemens,Mitsubishi.
3. The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technology
4. This machine is comprised of rinsing(disinfectant,pure water), sterilzing,filling and capping system.
5. This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
6. The machine can be connected with UHT, CIP control center and bottle-invert sterilizer
7. Safe protective devices ensure safety of operator and machine
8. Unique control mechanism keeps circumfluence volume below 5%
9. The machine has compact structure, complete control system, easy operation and high degree of automation

10. To change bottle shape, the operator only needs to replace the star-wheel, inlet bottle screw and arc guide plate
11. The parts contacting media are made from 304and have no process blind angles to enable easy cleaning
12. High speed filling valve, guarantees liquid has precise level and no waste is incurred
13. The capping head applies a constant magnetic torque device to secure capping quality and prevent damage to the bottle cap
14. The machine applies a highly effective cap arranging system that has complete self control and protective device


Technique parameter

Model RCGF18-18-18-18-6
Productivity 2000-3000BPH
Rinsing Head(disinfectant) 18
Rinsing Head(pure water) 18
Sterilizing by steam 18
Filling Head 18
Capping Head 6
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm Aluminum Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Gas Consumption 0.4 m3/min
Motor Power 9.68kW
Voltage 380V
Dimension (L×W×H) 2950*1800*2200mm
Weight 6000kg
Filling Principle Gravity Filling
