Carbonated Soda Water Drink Glass Bottle Filling Machine Linear Type

China Carbonated Soda Water Drink Glass Bottle Filling Machine Linear Type supplier
Carbonated Soda Water Drink Glass Bottle Filling Machine Linear Type supplier Carbonated Soda Water Drink Glass Bottle Filling Machine Linear Type supplier Carbonated Soda Water Drink Glass Bottle Filling Machine Linear Type supplier Carbonated Soda Water Drink Glass Bottle Filling Machine Linear Type supplier Carbonated Soda Water Drink Glass Bottle Filling Machine Linear Type supplier

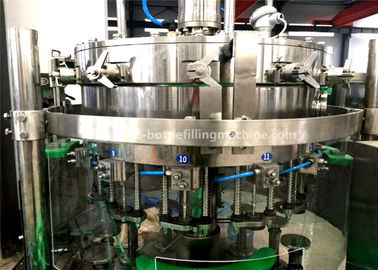

Large Image :  Carbonated Soda Water Drink Glass Bottle Filling Machine Linear Type

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE ISO SGS
Model Number: QS-12 DY-12 YG-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Warranty: One Year For Free Weight: 1600kg
Filling Material: Beer,Cola,Carbonated Soda Water Capacity: 1500BPH
Function: Bottle Washing Filling Capping Color: Silver Gray
Bottle Volume: 200-2000ml Control: Integrated Circuit

Carbonated Soda Water Drink Glass Bottle Filling Machine Linear Type



Video show

https://www.youtube.com/watch?v=klJ9mJvd5ac&feature=share



Specifications

small scale beer bottling machine
1) 3 parts: washing,filling,capping on a production line.
2) capacity:1000bph - 2000bph
3) volume:200ml - 2000ml.



Detailed features

1.The combined machine is used for filling carbonated beverage in glass bottle, such as beer, cola, energy drinks and soda water.

2. Different size(200-2000ml)of glass bottle is allowed.Just keep all the bottle mouth diameter same. We can design the equipment according to your requirements.

3. Advantages: stable filling, fast speed, control of liquid surface, reliable sealing, frequency modulation & speed adjustment, little loss of material.

4. Adopting crowning the caps with magnetic force, which passes the torque with powerful and constant magnet, and the torque can be adjusted to meet the need of many kind of plastic caps.

5. All the parts contact with liquid are made up of high quality stainless steel

6. This carbonated beverage can filling machine is quite easy to be operated and maintained with the adopting of PLC control of frequency conversion timing.

7. The sealing parts are all imported from foreign countries, which meets the requirement of the hygiene of the foodsafety.

8. Adopting the way of filling by holding the necks of the bottle, plus the function of pre-cover of the centralizing cover with high precise centralization, which ensure the right seating of mouth of the bottle and filling valve, with low liquid los

9. Host adopt integrated circuit, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

10. It can be adjusted in different sizes of bottles and different kinds of cap, Cap sorter is installed in a lower position, sending cap in a level position.

11. All the parts contact with liquid are made up of high quality stainless steel.

12. The sealing parts are all imported from foreign countries, which meets the requirement of the hygiene of the foodsafety.

13. Rotatory bottle-rinsing machine has the functions of not opening the valve and rinsing without bottle.

14. Its easy to be maintained and used with the adopting of concentrating or automatic lubrication system and the structure of full-open protection.



Main technical parameter

Model QS-12 DY-12 YG-6
Production capacity 1000-2000BPH
Number of washing head 12
Number of filling head 12
Number of capping head 6
Diameter of bottle 62-100mm
Height of bottle 160-320mm
Bottle volume 250,375,500,625ml
Bottle/can type glass bottle,PVC bottle,POP-top can
Filling pressure 0.2-0.3Mpa
Filling temperature 2-6.C
Cap type crown type
Power 1.5kw



Pictures

Carbonated Soda Water Drink Glass Bottle Filling Machine Linear Type



Carbonated Soda Water Drink Glass Bottle Filling Machine Linear Type



Carbonated Soda Water Drink Glass Bottle Filling Machine Linear Type
