Automatic Small Scale Glass Bottle Beer Washing Filling Capping Machine

China Automatic Small Scale Glass Bottle Beer Washing Filling Capping Machine supplier
Automatic Small Scale Glass Bottle Beer Washing Filling Capping Machine supplier Automatic Small Scale Glass Bottle Beer Washing Filling Capping Machine supplier Automatic Small Scale Glass Bottle Beer Washing Filling Capping Machine supplier Automatic Small Scale Glass Bottle Beer Washing Filling Capping Machine supplier Automatic Small Scale Glass Bottle Beer Washing Filling Capping Machine supplier

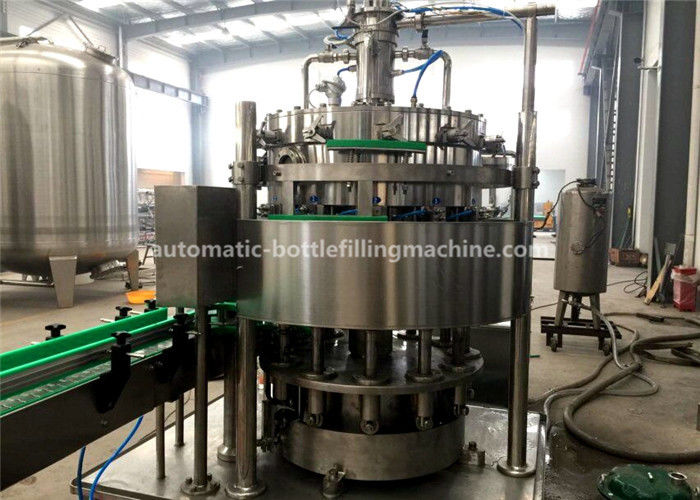

Large Image :  Automatic Small Scale Glass Bottle Beer Washing Filling Capping Machine

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE ISO SGS
Model Number: QS-12 DY-12 YG-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Dimension(L*W*H): 1100*1050*1800mm Weight: 1600kg
Filling Material: Beer,Cola,Carbonated Soda Water Capacity: 1500BPH
Function: Bottle Washing Filling Capping Material: Stainless Steel 304
Bottle Volume: 200-2000ml Control: Integrated Circuit

Automatic Small Scale Glass Bottle Beer Washing Filling Capping Machine



Video show

https://www.youtube.com/watch?v=klJ9mJvd5ac&feature=share



Main Features:

1. This carbonated beverage filling machine used for carbonated beverage,such as cola,beer,in glass bottle and PET bottle.

2. Host adopt integrated circuit, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

3. It can be adjusted in different sizes of bottles and different kinds of cap, Cap sorter is installed in a lower position, sending cap in a level position.

4. All the parts contact with liquid are made up of high quality stainless steel.

5. The sealing parts are all imported from foreign countries, which meets the requirement of the hygiene of the foodsafety.

6. Rotatory bottle-rinsing machine has the functions of not opening the valve and rinsing without bottle.

7. Adopting the way of filling by holding the necks of the bottle, plus the function of pre-cover of the centralizing cover with high precise centralization, which ensure the right seating of mouth of the bottle and filling valve, with low liquid los

8. Adopting crowning the caps with magnetic force, which passes the torque with powerful and constant magnet, and the torque can be adjusted to meet the need of many kind of plastic caps.

9. Its easy to be maintained and used with the adopting of concentrating or automatic lubrication system and the structure of full-open protection.



Specifications

small scale beer bottling machine
1) 3 parts: washing,filling,capping on a production line.
2) capacity:1000bph - 2000bph
3) volume:200ml - 2000ml.



Main technical parameter

Model QS-12 DY-12 YG-6
Production capacity 1000-2000BPH
Number of washing head 12
Number of filling head 12
Number of capping head 6
Diameter of bottle 62-100mm
Height of bottle 160-320mm
Bottle volume 250,375,500,625ml
Bottle/can type glass bottle,PVC bottle,POP-top can
Filling pressure 0.2-0.3Mpa
Filling temperature 2-6.C
Cap type crown type
Power 1.5kw



Pictures

Automatic Small Scale Glass Bottle Beer Washing Filling Capping Machine



Automatic Small Scale Glass Bottle Beer Washing Filling Capping Machine



Automatic Small Scale Glass Bottle Beer Washing Filling Capping Machine



Q1: Are you factory or trading company?

A1: We are factory or manufacturer.



Q2: Can you guarantee your quality?

A2: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.



Q3:What is your quality guarantee period?

A3:Quality guarantee term is for one year. Special circumstances can extend the shelf life of two years or three years.You are welcome to contact us at any time.



Q4:How about installation and training?

A4:For single production line machine,machine is set before delivery. When the machine arrives, connect with the electricity, then the machine can work.

For complicated production line, our engineer can be sent to clients' work shop to help install, adjust and train local workers until they master them all.



Q5:How about the spare parts?

A5;As for the spare parts, always suggest client buy machine together with some wearable spare parts. In case any damage, can change at once, will not delay the production.



Q6:Delivery method?

A6:We can send goods by sea, air, express, train,or by land, as customers' request
