200ml-2L Bottle Mineral Water Juice Bottle Filling Machine , Liquid Filling Bottling Machine

China 200ml-2L Bottle Mineral Water Juice Bottle Filling Machine , Liquid Filling Bottling Machine supplier
200ml-2L Bottle Mineral Water Juice Bottle Filling Machine , Liquid Filling Bottling Machine supplier 200ml-2L Bottle Mineral Water Juice Bottle Filling Machine , Liquid Filling Bottling Machine supplier 200ml-2L Bottle Mineral Water Juice Bottle Filling Machine , Liquid Filling Bottling Machine supplier 200ml-2L Bottle Mineral Water Juice Bottle Filling Machine , Liquid Filling Bottling Machine supplier 200ml-2L Bottle Mineral Water Juice Bottle Filling Machine , Liquid Filling Bottling Machine supplier

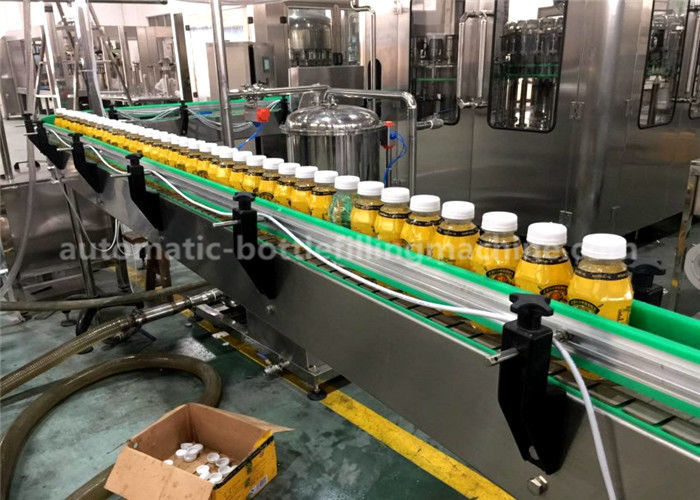

Large Image :  200ml-2L Bottle Mineral Water Juice Bottle Filling Machine , Liquid Filling Bottling Machine

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF32-32-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Capacity: 14000BPH(500ML) Color: Silver Gray
Overall Dimension: 3600*2800*3150mm Weight: 5000kg
Driven Type: Electric Power: 9.18KW
Filling Temperature: Hot Filling Warranty: One Year For Free

200ml-2L Bottle Mineral Water Juice Bottle Filling Machine , Liquid Filling Bottling Machine



Video show
https://www.youtube.com/watch?v=fh8grv8RlNw&feature=share



General Information

1. This Juice Filling Machine is for PET/Plastic Bottle.

2. It's a hot filling machine
3. Its Capacity is 14000BPH for 500ML Bottle. (BPH - Bottles Per Hour)
4. This Juice Filling Machine can be used for juice,tea,energy drink and other hot filling liquid beverage



Technique parameters

Model RCGF32-32-10
Productivity 14000BPH
Rinsing Head 32
Filling Head 32
Capping Head 10
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 1.5 m3/h
Rinsing Water Consumption 0.5 m3/h
Motor Power 9.18kW
Voltage 380V
Dimension(L*W*H) 3600*2800*3150mm
Weight 5000kg
Filling Principle Gravity Filling




Introduction

This product called RCGF series three-in-one set of machine is mainly used in the beverage filling process. The machine combines washing,filling and capping with complete automation,suitable for filling juice and tea beverage.With temperature controller,it can also conduct thermal filling.It is used for all kinds of bottles.The bottle neck hanging technology makes the process of changing bottles easily by only adapting the height of conveyor chain.The filling process adopts hot filling technology with water-supplying system under constant pressure,which makes filling process faster and more stable.Compared with other equipment of the same kind,this machine with a better quality and thus enjoys a high tatio of function against price.The hot filling type machine works with balanced tank and vacuum system.



Characteristics
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.



Some Pictures Show
Washing part

200ml-2L Bottle Mineral Water Juice Bottle Filling Machine , Liquid Filling Bottling Machine

Filling part

200ml-2L Bottle Mineral Water Juice Bottle Filling Machine , Liquid Filling Bottling Machine

Capping part
200ml-2L Bottle Mineral Water Juice Bottle Filling Machine , Liquid Filling Bottling Machine
