Rotary Automatic Juice Bottle Filling Machine Washer Filler Capper Monobloc Machine

China Rotary Automatic Juice Bottle Filling Machine Washer Filler Capper Monobloc Machine supplier
Rotary Automatic Juice Bottle Filling Machine Washer Filler Capper Monobloc Machine supplier Rotary Automatic Juice Bottle Filling Machine Washer Filler Capper Monobloc Machine supplier Rotary Automatic Juice Bottle Filling Machine Washer Filler Capper Monobloc Machine supplier Rotary Automatic Juice Bottle Filling Machine Washer Filler Capper Monobloc Machine supplier Rotary Automatic Juice Bottle Filling Machine Washer Filler Capper Monobloc Machine supplier

Large Image :  Rotary Automatic Juice Bottle Filling Machine Washer Filler Capper Monobloc Machine

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF32-32-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Color: Silver Gray Overall Dimension: 3600*2800*3150mm
Weight: 5000kg Warranty: One Year For Free
Power: 9.18KW Filling Temperature: Hot Filling
Voltage: 380V 50Hz Structure: Rotary

Rotary Automatic Juice Bottle Filling Machine Washer Filler Capper Monobloc Machine



Video show
https://www.youtube.com/watch?v=fh8grv8RlNw&feature=share



General Information

1. RCGF32-32-10 Juice Washing Filling Capping 3-in-1 monoblock Machine is for PET/Plastic Bottle.

2. It's a hot filling machine
3. Its Capacity is 14000BPH for 500ML Bottle. (BPH - Bottles Per Hour)
4. This Juice Filling Machine can be used for juice,tea,energy drink and other hot filling liquid beverage



Main Features
(1) The combination of suspending bottleneck clamping and the filling valve design make the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.
(2) The new generation of stainless steel spring is used in the washing clamps, and the clamps have no contact with the area above the bottle's screw thread. So many micro-holes in the washing-nozzle are used to wash the bottom of the bottle, and this guarantees the complete wash of the interior of the bottle.
(3) The advanced micro-negative pressure-filling technology used in this machine makes the filling quick, steady and accurate. The beverage feed-back system is well-designed, the gas can be fed back separately and has no contact with the beverage. This can reduce the second-time pollution and oxidation.
(4) This machine can meet all the technical requirements for hot-filling below 95º C.
(5) Magnetic torque is used for screw capping, and the power of screw capping can be adjusted infinitely. It can use constant power to screw the plastic caps.
(6) Advanced technologies, such as human-machine interface touch-screen and PLC computer program control are adopted in this machine.
(7) All parts that have direct contact with the beverages are made of SUS304 material. And many critical components, such as the decelerator, the motor, are introduced from international famous companies.


Technique parameters

Model RCGF32-32-10
Productivity 14000BPH
Rinsing Head 32
Filling Head 32
Capping Head 10
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 1.5 m3/h
Rinsing Water Consumption 0.5 m3/h
Motor Power 9.18kW
Voltage 380V
Dimension(L*W*H)

3600*2800*3150mm

Weight 5000kg
Filling Principle Gravity Filling



Some Pictures Show

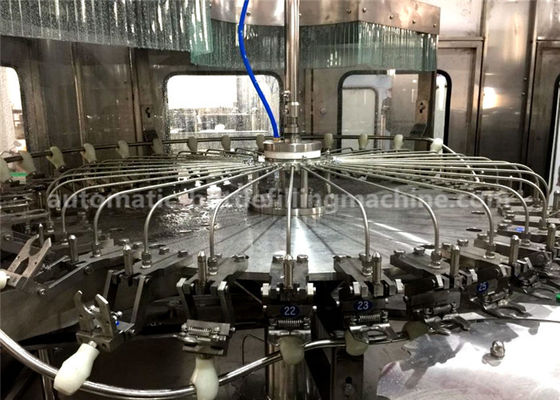

Rotary Automatic Juice Bottle Filling Machine Washer Filler Capper Monobloc Machine

Rotary Automatic Juice Bottle Filling Machine Washer Filler Capper Monobloc Machine

Rotary Automatic Juice Bottle Filling Machine Washer Filler Capper Monobloc Machine

Quality Control

We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
If you want to know more information about the product,You can send an inquiry, we will solve any of your problems and send you running vedio.


FAQ

Q: Are you a factory or trading company?

A: We are a factory


Q: How long Is the warranty period?
A: All of our products have one year warranty


Q: What's the main market of your company?
A: We have customers all over the world


Q: What's your delivery time and payment Terms?
A:Normally,it need about 30 wprking days.The exact time depends on your quantity. The payment terms always 30% deposits,70% to be paid before shipment


Q:Can we visit your machine operation in your factory?
A:Welcome to you go to our factory to see the machine operation
