3-In-1 Monoblock Juice Bottle Filling Machine For Juice Plant Equipment

China 3-In-1 Monoblock Juice Bottle Filling Machine For Juice Plant Equipment supplier
3-In-1 Monoblock Juice Bottle Filling Machine For Juice Plant Equipment supplier 3-In-1 Monoblock Juice Bottle Filling Machine For Juice Plant Equipment supplier 3-In-1 Monoblock Juice Bottle Filling Machine For Juice Plant Equipment supplier 3-In-1 Monoblock Juice Bottle Filling Machine For Juice Plant Equipment supplier 3-In-1 Monoblock Juice Bottle Filling Machine For Juice Plant Equipment supplier

Large Image :  3-In-1 Monoblock Juice Bottle Filling Machine For Juice Plant Equipment

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF32-32-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Capacity: 14000BPH(500ML) Color: Silver Gray
Overall Dimension: 3600*2800*3150mm Weight: 5000kg
Warranty: One Year For Free Power: 9.18KW
Filling Temperature: Hot Filling Voltage: 380V 50Hz

3-In-1 Monoblock Juice Bottle Filling Machine For Juice Plant Equipment



Video show
https://www.youtube.com/watch?v=fh8grv8RlNw&feature=share



Introduction

This machine is my company's introduction of German technology. The machine has excellent mechanical operation reliability, improved rinsing, filling, cover screwing, disinfection sterilization and other functions.

All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.The automatic 3 in 1 juice filling machine was equipped with suspension type air conveyor and frequency control of motor speed.

This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: hot filling with holding bottle neck; the special back-flow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.

General Information

1. This Juice Filling Machine is for PET/Plastic Bottle.

2. It's a hot filling machine
3. Its Capacity is 14000BPH for 500ML Bottle. (BPH - Bottles Per Hour)
4. This Juice Filling Machine can be used for juice,tea,energy drink and other hot filling liquid beverage

Features

a. The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technology

b. The machine can be connected with UHT, CIP control center and bottle-invert sterilizer

c. Safe protective devices ensure safety of operator and machine

d. Magnetic torsion type screw capper ensures the tightness of the cap and avoids bottle damage

e. The module of screw capper ensures the tightness of the cap and avoids bottle damage

f. Slight negative-pressure gravity circumfluence filling system increases juice filling accuracy and reduces contamination

g. Unique control mechanism keeps circumfluence volume below 5%

h. Airtight valve made of non-plastic material prevents worn-out particles from dropping into bottles adversely affecting product quality

i. High efficient clean air filter circulation system ensures high sanitary requirements

j. Low overall machines noise that is comparable to any internationally known equipments in its class

k. Self-lubricationg system imported from America provides continuous smooth operation



Some Pictures Show

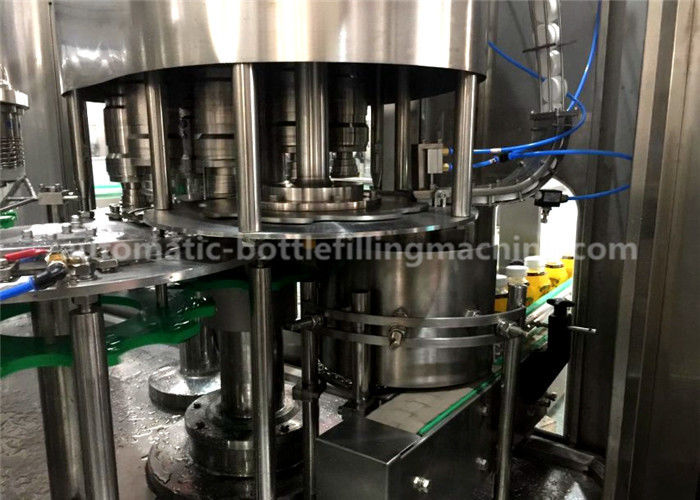

32 heads Filling part
3-In-1 Monoblock Juice Bottle Filling Machine For Juice Plant Equipment
3-In-1 Monoblock Juice Bottle Filling Machine For Juice Plant Equipment
Air conveyor
3-In-1 Monoblock Juice Bottle Filling Machine For Juice Plant Equipment
Technique parameters

Model RCGF32-32-10
Productivity 14000BPH
Rinsing Head 32
Filling Head 32
Capping Head 10
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 1.5 m3/h
Rinsing Water Consumption 0.5 m3/h
Motor Power 9.18kW
Voltage 380V
Dimension(L*W*H)

3600*2800*3150mm

Weight 5000kg
Filling Principle Gravity Filling
