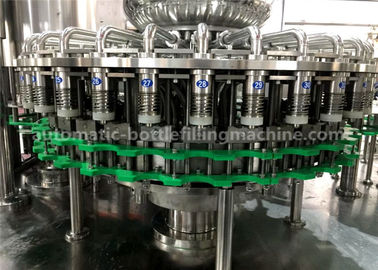

Ice Tea Juice Filling Machine / Juice Production Line With Plastic Bottles 380V 50Hz

Large Image : Ice Tea Juice Filling Machine / Juice Production Line With Plastic Bottles 380V 50Hz

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	Jinyate
Certification:	CE,ISO,SGS
Model Number:	RCGF32-32-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set/Sets
Price:	Negotiable
Packaging Details:	Plastic film wrapping,standard wooden boxes packing
Delivery Time:	45 working days
Payment Terms:	L/C, T/T
Supply Ability:	10 Set/Sets per Month

Contact Now

Detailed Product Description

Capacity:	14000BPH（500ML)	Machine Material:	Stainless Steel 304
Overall Dimension:	360028003150mm	Weight:	5000kg
Control:	PLC+ Touch Screen	Power:	9.18KW
Filling Temperature:	Hot Filling	Voltage:	380V 50Hz
High Light:	fruit juice production line , small scale juice bottling equipment

Ice Tea Juice Filling Machine / Juice Production Line With Plastic Bottles 380V 50Hz

Video show
https://www.youtube.com/watch?v=fh8grv8RlNw&feature=share

General Information
1. This Juice Filling Machine is for PET/Plastic Bottle.
2. It's a hot filling machine
3. Its Capacity is 14000BPH for 500ML Bottle. (BPH - Bottles Per Hour)
4. This Juice Filling Machine can be used for juice,tea,energy drink and other hot filling liquid beverage

Features of juice bottle rinsing filling capping 3-in-1 unit machine
1. The juice filling line processing capacity is 14000 bottles per hour
2. The juice production line Can deal with similar characteristic of fruits
3. Using the high efficient of destoner to improve the mango output percentage effectively
4. Using efficient belt juice extractor to improve the juice efficiency and the output percentage
5. The production process fully automatic PLC control to save labor and Facilitate production management
6. Low-temperature vacuum evaporation, maximize reserve the flavor substances and nutrients also save energy
7. Tubular UHT sterilizer and Aseptic filling machine, produce high-quality aseptic juice products
8. Automatic CIP cleaning, ensure the entire juice filling line equipment of food hygiene and safety requirements

Technique parameters

Model	RCGF32-32-10
Productivity	14000BPH
Rinsing Head	32
Filling Head	32
Capping Head	10
Bottle Volume	350ml~2000ml±10ml
Bottle Diameter	φ50-92mm
Bottle Height	150-310 mm
Filling Tolerance	±2%
Cap Size	28mm and 30mm PE Standard Caps
Air Pressure	0.6MPa
Air Consumption	500 L/min
Filling Water Consumption	1.5 m3/h
Rinsing Water Consumption	0.5 m3/h
Motor Power	9.18kW
Voltage	380V
Dimension(LWH)	360028003150mm
Weight	5000kg
Filling Principle	Gravity Filling

Description of Juice production line

1). The raw water will be purified and sterilized after passing through the water treatment system, and will be stored in the purified water storage tank;
2). The juice will be prepared by the juice preparation system, the prepared juice is stored in the insulation tank (for heat preservation) temporarily;
3). Automatic heat resistance PET bottle blow molding machine is connected with the water filling machine by the Air conveyor;
4). Prepared juice will be pumped into the juice filling machine; At the same time, empty bottles pass through the rinsing, filling and capping 3-in-1 monoblock, the bottles will be rinsed, filled and capped.
5). Bottled water goes out from the water filling machine and will be transferred to the bottle over-turn sterilizing machine, the cap and the bottle mouth will be sterilized after passing through the sterilizing machine, then the bottles will be transferred to the bottle cooling machine;
6). The bottles are getting dried after passing through the blowing dryer, and the dried bottle will go to the labeling machine and PE film shrink wrapping machine;
7). The packed bottle water will come out from the PE film shrink wrapping machine.
