| Capacity: | 14000BPH（500ML) | Driven Type: | Electric |
|---|---|---|---|
| Overall Dimension: | 3600*2800*3150mm | Weight: | 5000kg |
| Control: | PLC+ Touch Screen | Power: | 9.18KW |
| Filling Temperature: | Hot Filling | Voltage: | 220V/380V |
| High Light: | fruit juice production line,small scale juice bottling equipment |
||
Video show
https://www.youtube.com/watch?v=fh8grv8RlNw&feature=share
General Information
1. This Juice Filling Machine is for PET/Plastic Bottle.
2. It's a hot filling machine
3. Its Capacity is 14000BPH for 500ML Bottle. (BPH - Bottles Per Hour)
4. This Juice Filling Machine can be used for juice,tea,energy drink and other hot filling liquid beverage
Detailed description
All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.The automatic 3 in 1 juice filling machine was equipped with suspension type air conveyor and frequency control of motor speed.

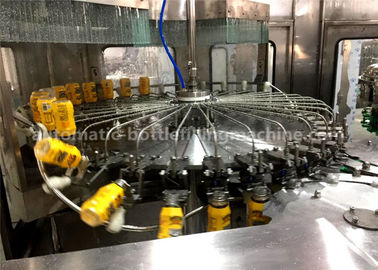

This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: hot filling with holding bottle neck; the special back-flow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
Technique parameters
| Model | RCGF32-32-10 |
| Productivity | 14000BPH |
| Rinsing Head | 32 |
| Filling Head | 32 |
| Capping Head | 10 |
| Bottle Volume | 350ml~2000ml±10ml |
| Bottle Diameter | φ50-92mm |
| Bottle Height | 150-310 mm |
| Filling Tolerance | ±2% |
| Cap Size | 28mm and 30mm PE Standard Caps |
| Air Pressure | 0.6MPa |
| Air Consumption | 500 L/min |
| Filling Water Consumption | 1.5 m3/h |
| Rinsing Water Consumption | 0.5 m3/h |
| Motor Power | 9.18kW |
| Voltage | 380V |
| Dimension(L*W*H) |
3600*2800*3150mm |
| Weight | 5000kg |
| Filling Principle | Gravity Filling |
Features of juice bottle rinsing filling capping 3-in-1 unit machine
a. The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technology
b. The machine can be connected with UHT, CIP control center and bottle-invert sterilizer
c. Safe protective devices ensure safety of operator and machine
d. Magnetic torsion type screw capper ensures the tightness of the cap and avoids bottle damage
e. The module of screw capper ensures the tightness of the cap and avoids bottle damage
f. Slight negative-pressure gravity circumfluence filling system increases juice filling accuracy and reduces contamination
g. Unique control mechanism keeps circumfluence volume below 5%
h. Airtight valve made of non-plastic material prevents worn-out particles from dropping into bottles adversely affecting product quality
i. High efficient clean air filter circulation system ensures high sanitary requirements
j. Low overall machines noise that is comparable to any internationally known equipments in its class
k. Self-lubricationg system imported from America provides continuous smooth operation
