Industrial Pet Bottled Sparkling Wine / Soda Water Filling / Making Machine

China Industrial Pet Bottled Sparkling Wine / Soda Water Filling / Making Machine supplier
Industrial Pet Bottled Sparkling Wine / Soda Water Filling / Making Machine supplier Industrial Pet Bottled Sparkling Wine / Soda Water Filling / Making Machine supplier Industrial Pet Bottled Sparkling Wine / Soda Water Filling / Making Machine supplier Industrial Pet Bottled Sparkling Wine / Soda Water Filling / Making Machine supplier Industrial Pet Bottled Sparkling Wine / Soda Water Filling / Making Machine supplier

Large Image :  Industrial Pet Bottled Sparkling Wine / Soda Water Filling / Making Machine

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: DGF12-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard Wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Power: 5.03kw Overall Dimension(L*W*H): 2100*1500*2200mm
Warranty: 1 Year For Free Material: Food Grade Stainless Steel 304
Voltage: 380V 50Hz Driven Type: Electric
Filling Type: Isobaric Filling Machine Filling Material: Cola,beer,carbonated Soda Water,gas Drink

Industrial Pet Bottled Sparkling Wine / Soda Water Filling / Making Machine

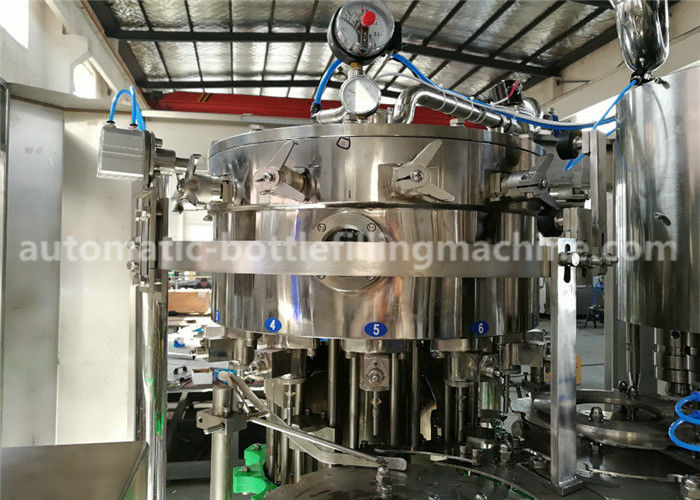

Features of Filling Part
Industrial Pet Bottled Sparkling Wine / Soda Water Filling / Making Machine

1. The rotate plate is made of stainless steel 304, large flat toothed bearing.

2. The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of food grade stainless steel.

3. The beverage supply adopts the automatic pneumatic valve magnetic liquid-level switch to control the liquid tank automatically.

4. Sliding bearing is anti-corrosion non-maintaining bearing, which can reduce the pollution of filling to the environment. Rolling bearing made of stainless steel, the sealing ring is made of EPDM material, plastics is made of UMPE.

5. The motivation of the filler is derived from the driven system in the framework and passed by gear.

6. The main drive adopts gear drive, with high efficiency, low noise, long life, easy maintenance, sufficient lubrication, grease can lubricate centralizing automatically, adopts transducer to the speed of main motor to control, the machine adopts step-less frequency conversion timing. The material for the whole platform and frame is carbon steel with stainless steel outside.

7. The machine is automatically controlled by PLC, fault on line display, like bottle block, cap shortage etc.

8. The key parts and electric elements of the machine are adopting famous brand products.



Feature Of Screw Capping Part

Industrial Pet Bottled Sparkling Wine / Soda Water Filling / Making Machine

This unit is the highest degree of accuracy of 2-in-1 machine, it is important for the machine to run stably and the product quality.

It is suitable for aluminum screw cap on standard glass bottles. It is provided with a hopper to feed caps on to neck of bottles. No bottle-no capping. It is provided with a self-releasing clutch mechanism to tighten the caps uniformly to a pre-set torque. It is provided with attachments suitable for any one size of bottle.


Summary Description
This monobloc machine is quite easy to be operated and maintained with the adopting of SIEMENS PLC control of frequency conversion Timing.
All the parts contact with liquid are made up of high quality stainless steel 304 , both exterior and interior of the machine are polished for easily cleaning and good hygiene codition. The sealing parts are all imported from foreign countries, which meets the requirement of the hygiene of the foodsafety.

Industrial Pet Bottled Sparkling Wine / Soda Water Filling / Making Machine


Technical parameter

Model: DGF12-6 DGF18-6 DGF24-8 DGF32-10
Capacity :(BPH)500ml 2000-4000 4000-6000 6000-8000 8000-12000
Bottle shape: rouNd or square
PET bottle: (mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
Cap: PE srew cap
Filling precision: ≤±5mm
Filling pressure:(Mpa) 0.15-0.35
Rinsing pressure:(Mpa) 0.2-0.25
Power(KW) 5.03 5.03 6.57 8.07
Overall size:(mm) 2100*1500*2200 2450*1800*2200 2750*2180*2200 3600*2200*2600
Weight: (kg) 2000 3000 4000 5000

Please kindly leave me information about your requirements,for example:your bottle size;your capacity of filling(how many bottles do you want to fill per hour);And Do you want only the filling machine or the whole line.Once I get these information,I can do the detailed quotation for you,Thanks!!!!!!!
