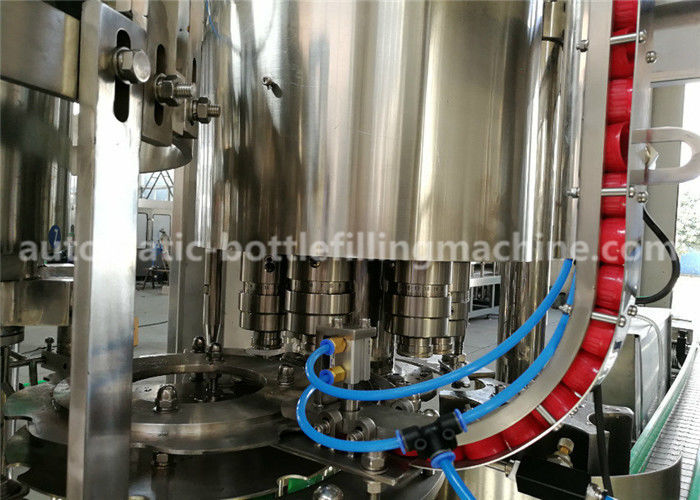

Pet Bottled Carbonated Drink Filling Machine For Cola / Beer / Soda Water

Pet Bottled Carbonated Drink Filling Machine For Cola / Beer / Soda Water
Pet Bottled Carbonated Drink Filling Machine For Cola / Beer / Soda Water

Large Image :  Pet Bottled Carbonated Drink Filling Machine For Cola / Beer / Soda Water

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: DGF12-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard Wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Power: 6.57kw Overall Dimension(L*W*H): 2750*2180*2200mm
Warranty: 1 Year For Free Material: Food Grade Stainless Steel 304
Voltage: 380V 50Hz Driven Type: Electric
Filling Pressure: Balanced Pressure Filling Filling Material: Gas Contained Beverage
High Light:

soda bottling machine

,

carbonated beverage bottling equipment

Pet Bottled Carbonated Drink Filling Machine For Cola / Beer / Soda Water


 Main parameter of 2-in-1 unit carbonated drink filling capping machine:

1. Filling heads:12

2. Capping heads:6

3. Filling pressure:balanced pressure

4. Capacity:2000-4000BPH based on 500ml

5. Total weight:1800kg

6. Overall dimension:1800*1500*2100mm



PRODUCT DESCRIPTION

The high-quality stainless machine is made and designed through introduce of technology from Germany KRONES Co., which has stained to the national top. It is mainly used for filling carbonated beverage with the method of holding the bottoms of the bottles. Adopting PLC control, automatic liquid level inspecting and hygienic structure, which is convenient to be operated and maintained.

1. Multiple Usage: The filler provide a comprehensive range of different bottle sizes (height 150-320mm, Dia. 50-100mm)

2. Easy adjustment: An automatic height adjust device is available which offers you very easy operation only by pressing a button. For filling different size of bottles, relative parts can be easily and quickly changed without tools.

3. Advanced construction features: The filler carousel is mounted on a huge heavy duty combined bearing, which guarantees optimum smooth running of the filling bowl. The centering bell assemblies precisely locate the necks of bottles onto filling valves. The design of suspended and cantilevered bottle lift cylinders and bottle platforms allows easy, unrestricted remove of broken glass following bottle explosion which, with the addition of well protective of piston rods, minimizes the risk of damage of sliding surface of cylinders.

4. High efficiency and low beverage loss: Owing to the special constructions features the machinery can run at high speed with low rate of glass broken. In the event of bottle breakage a burst flushing system can remove any fragments from the bottle platform, filling valve and centering bell assembly, filling valve automatically be closed in very short time avoiding beverage and gas loss.

5. Sanitation: All parts which contact with beverage are made with high quality polished stainless steel.

6. The CIP system offers automatically cleaning and sterilization of the filler.

7. Using PLC control the machine monitors, the filling liquid level automatically. Made up of high quality stainless steel, it is sanitation. Operation and maintenance is convenient.



Technical parameter

Model: DGF12-6 DGF18-6 DGF24-8 DGF32-10
Capacity :(BPH)500ml 2000-4000 4000-6000 6000-8000 8000-12000
Bottle shape: rouNd or square
PET bottle: (mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
Cap: PE srew cap
Filling precision: ≤±5mm
Filling pressure:(Mpa) 0.15-0.35
Rinsing pressure:(Mpa) 0.2-0.25
Power(KW) 5.03 5.03 6.57 8.07
Overall size:(mm) 2100*1500*2200 2450*1800*2200 2750*2180*2200 3600*2200*2600
Weight: (kg) 2000 3000 4000 5000



THis is Jane,If any requirments you need from me,please inquiry to me.If you want to the detailed quotation,please leave me these message

1, bottle volume

2, bottle materail (machines for glass bottle and plastic bottle are different)

3, how many bottles per hour you want to produce ?

4, do you need this water filling machines only or whole water production line
