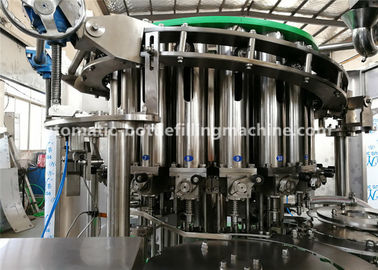

Monobloc 2-In-1 Automatic Edible Oil Filling Capping Machine With 500ml-5L Bottle

China Monobloc 2-In-1 Automatic Edible Oil Filling Capping Machine With 500ml-5L Bottle supplier
Monobloc 2-In-1 Automatic Edible Oil Filling Capping Machine With 500ml-5L Bottle supplier Monobloc 2-In-1 Automatic Edible Oil Filling Capping Machine With 500ml-5L Bottle supplier Monobloc 2-In-1 Automatic Edible Oil Filling Capping Machine With 500ml-5L Bottle supplier Monobloc 2-In-1 Automatic Edible Oil Filling Capping Machine With 500ml-5L Bottle supplier Monobloc 2-In-1 Automatic Edible Oil Filling Capping Machine With 500ml-5L Bottle supplier

Large Image :  Monobloc 2-In-1 Automatic Edible Oil Filling Capping Machine With 500ml-5L Bottle

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: YGF24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes packaging
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Capacity: 5000BPH Filling Type: Piston Volumetric Filling,rotary Type
Function: Bottle Filling ,sealing Driven Type: Electric
Power: 3.5kw Application: Beverage, Food,Commodity
Overall Dimensions (LxWxH): 2200x1800x2200mm Machine Material: Stainless Steel 304

Monobloc 2-in-1 Automatic Edible Oil Filling Capping Machine With 500ml-5L Bottle

Basic Specification

Model YGF Series
Applicable Container Round PET and glass bottles and containers
Labeling Material PET,PVC film in roller
Capacity Speed 3000BPH to 24000 BPH

Note: the filling range and speed can be designed according to user needs to design

different filling head number.



Product Description of Oil Filling Machine

The automatic oil filling machine is mainly used for quantitative filling of various oil liquids, sch as edible oil lubricating oil, peanut oil, soybean oil, corn oil, oil, antifreeze and so on.

1. Digital display, setting the amount of filling directly

2. PLC program control, frequency converter speed line filling

3. High-precision volumetric flowmeter, quantitative accurate and reliable

4. Mechanical seal plus vacuum suction double anti-drip

5. Fast and then slow down the first high-speed filling



If you want to know how this oil filling machine works,just click here

https://www.youtube.com/watch?v=yGhNXFRf_oM&feature=share

Monobloc 2-In-1 Automatic Edible Oil Filling Capping Machine With 500ml-5L Bottle

Main Features of Oil Filling Machine
Using in lubricating oil, edible oil, chemical products, spices and other oil, oil, oil food filling. With the overall structure is simple, small footprint, the advantages is easy to operate. Using quantitative cup structure, through the cylinder to drive the cylinder piston repeated movement, the oil is poured into the bottle quantitatively and the quantitative accuracy is high, filling speed, two-speed filling, fast first then slow down, quantitative and more accurate.



Advantages of our oil filling machine

1. The world famous brands of electrical and pneumatic components, low failure rate,long service life.

2. Automatic cooking oil filling machine works stably, fills precisely, and suits for cold and hot filling.

3. The piston and piston barrel after the treatment of top technology cooperate accurately, durable and

wearable.

4. It is equipped with material stirring system, three point liquid level control, frequency conversion adjustment, bottle in and out protection, automatic speed adjustment, filling with bottle and no filling without bottles.

5. It adopts good stainless steel material, which meet the requirement of food sanitation.

6. Vacuum pump can make sure there is no dripping oil on bottle body or machine surface,keep the bottle and machine clean.



Technical parameter

Model YGF24-8
Capacity/1L BOTTLE 5000BPH
Filling head 24
Capping head 8
Filling time 5 second(approx)(100ml/min)
Filling temperature 18-20℃
Filling tank Semi closed type filling tank, using worm gear to adjust the height
Filling valve Using cam to force down
Speed control AC MOTOR+REDUCER+INVERTER
Gas consumption 100NL/min(5-6Kg/cm²)(take 100EA as the base)
Power 3.5Kw
Weight 2500 Kg

Overall dimensions(LxWxH)

2200x1800x2200mm



Monobloc 2-In-1 Automatic Edible Oil Filling Capping Machine With 500ml-5L Bottle

Monobloc 2-In-1 Automatic Edible Oil Filling Capping Machine With 500ml-5L Bottle
