Rotary 8 Head Automatic MIlk Hot Filling Machine , Milk / Juice Packing Machine

China Rotary 8 Head Automatic MIlk Hot Filling Machine , Milk / Juice Packing Machine supplier
Rotary 8 Head Automatic MIlk Hot Filling Machine , Milk / Juice Packing Machine supplier Rotary 8 Head Automatic MIlk Hot Filling Machine , Milk / Juice Packing Machine supplier Rotary 8 Head Automatic MIlk Hot Filling Machine , Milk / Juice Packing Machine supplier Rotary 8 Head Automatic MIlk Hot Filling Machine , Milk / Juice Packing Machine supplier Rotary 8 Head Automatic MIlk Hot Filling Machine , Milk / Juice Packing Machine supplier

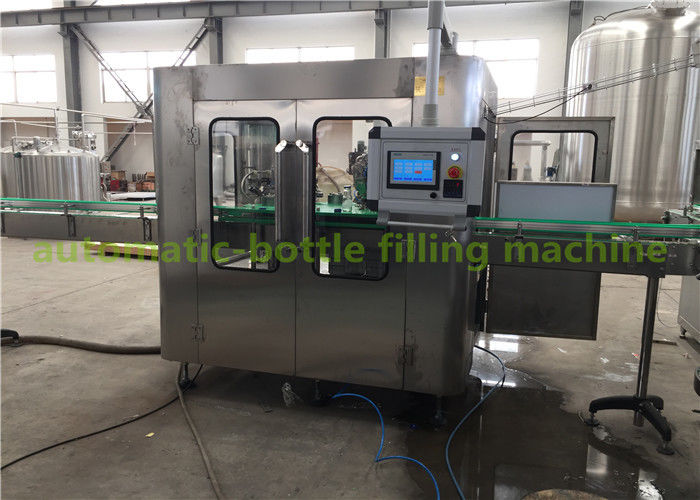

Large Image :  Rotary 8 Head Automatic MIlk Hot Filling Machine , Milk / Juice Packing Machine

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF8-8-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden Boxes
Delivery Time: 30-45 working days
Payment Terms: L/C, T/T
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Bottle Type: Glass Bottle Bottle Volume: 200ml-1L(adjustable)
Overall Dimension(L*W*H): 2000*1800*2200mm Capacity: 3000BPH(500ml)
Warranty: One Year Filling Temperature: Hot Filling
Control System: PLC Control+touch Screen Automatic Grade: Fully-automatic

Rotary 8 Head Automatic MIlk Hot Filling Machine , Milk / Juice Packing Machine


Basic information
Hot filling machine is the standard 3-in-1 monoblock. But to the special production condition, another sanitizer rinsing could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics( such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.

Quick details
1. Capacity:3000 bottles per hour
2. glass bottle washing filling capping 3-in-1 monoblock machine.
3. Small milk filling machine
4. Hot filling machine

Technique parameter

ModelRCGF8-8-3
Productivity3000BPH
Washing Head8
Filling Head8
Capping Head3
Bottle Volume350ml~2000ml±10ml
Bottle Diameterφ50-92mm
Bottle Height150-310 mm
Filling Tolerance±2%
Cap Size28mm and 30mm PE Standard Caps
Air Pressure0.6MPa
Air Consumption500 L/min
Filling Water Consumption3 m3/h
Rinsing Water Consumption1 m3/h
Motor Power6.68kW
Voltage380V
Dimension(L×W×H) 2250*1800*2200mm
Weight3000kg
Filling PrincipleGravity Filling


Characters
1, Full filling is to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
2, Reasonable structured storage hopper and material supply system keep the material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.
3, The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
4, Sanitary filling head system is of umbrella structure, high filling speed.
5, Perfect filling temperature control system.
6, Return tank system has the function of supplying the material automatically.
7, Perfect CIP system


Bottle sample
Rotary 8 Head Automatic MIlk Hot Filling Machine , Milk / Juice Packing Machine

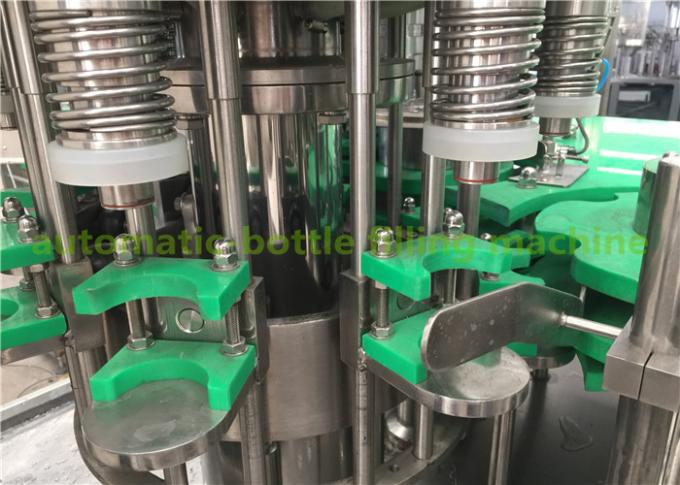

Glass bottle holder
Rotary 8 Head Automatic MIlk Hot Filling Machine , Milk / Juice Packing Machine

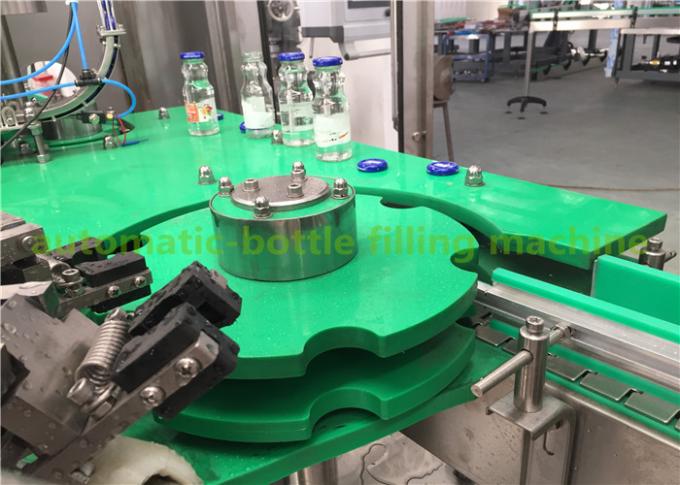

The green guide plate

Rotary 8 Head Automatic MIlk Hot Filling Machine , Milk / Juice Packing Machine

When you send inquiry, please also included the capacity and bottle volume you need to work on the machine, it is easy and accurate for us to recommend proper machine model.
We can also design the machines according to your requirement.
Welcome to visit our factory to check the machine! Jinyate Staff are glad to be at your service!
