250 - 1000ml Glass Bottle Drink Hot Filling Plant / Fruit Juice Processing Line

China 250 - 1000ml Glass Bottle Drink Hot Filling Plant / Fruit Juice Processing Line supplier
250 - 1000ml Glass Bottle Drink Hot Filling Plant / Fruit Juice Processing Line supplier 250 - 1000ml Glass Bottle Drink Hot Filling Plant / Fruit Juice Processing Line supplier 250 - 1000ml Glass Bottle Drink Hot Filling Plant / Fruit Juice Processing Line supplier 250 - 1000ml Glass Bottle Drink Hot Filling Plant / Fruit Juice Processing Line supplier 250 - 1000ml Glass Bottle Drink Hot Filling Plant / Fruit Juice Processing Line supplier

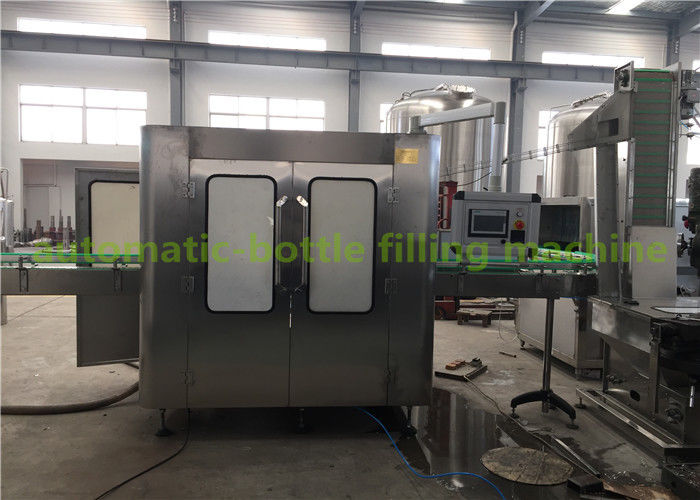

Large Image :  250 - 1000ml Glass Bottle Drink Hot Filling Plant / Fruit Juice Processing Line

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF8-8-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Driven Type: Electric Bottle Volumn: 250-1000ml
Automatic Grade: Fully-automatic Weight: 2000kg
Dimension: 2450*1800*2200mm Machiner Material: Stainless Steel 304
Filling Temperature: Hot Temperature Capacity: 3000BPH(500ML)

Glass Bottle Juice Drink Hot Filling Processing Plant / Juice Bottling Plant



Introduction
The machine is for filling green tea,black tea and fruit juice drink and integrates washing,filling and capping together ,and adopts block bottle-neck hanging work state design and filling valve rise-drop design.
It can meet the requirements of hot filling of below 95 degrees Celsius. It adopts man-machine interface touch screen,PLC,transducer ,etc.

Features
1. Bottles are delivered by suspension type clip bottle mouth conveying structure (except bottle out star wheel), bottle in adopts air conveying device, in the bottle washing station with flexible bottleneck clamp clamping, so that machine is more stable during operation , reliable, high-speed operation to adapt to the requirements of the machine. Simply adjust the conveyor of different bottle height and a small amount of change attachment, so for bottle faster, and effort.
2. Filling machine uses normal pressure filling technology is filling fast, reliable, non-drip, level accuracy. The machine has no bottle no filling characteristics.
3. Juice Filling Machine:Cap arranging device ensure the cover arrange speed, no damage to the cover surface. Comprehensive testing device can guarantee no bottle no cover, lack of cover down, full cover without cover conveying of functions.
4. The Juice Filling Machine main electrical, pneumatic components are imported components.
5. The frequency changing technology is used to adjust the operation speed. The production capacity can be displayed digitally and can be adjusted conveniently.

6. Adopting efficient cap settling system which carried perfect cap feeding and protection device.
7. It is adopted spiral descent fashion for the support plate for bottom of bottle at the outlet thumb wheel. And to adjust the input height is not necessary for exchanging model of bottle.
8. Carried the perfect protection system to overload, it can be used to protect facilities and operators efficiently.
9. Because of applying touch screen for operation, it is possible to realize man-machine conversation whereas the status of device running is clear at a glance.
10. The primary electric components such as touch screenPLCtransducer etc. Are all adopted with world famous products.



Technique parameter

Model RCGF8-8-3
Rinsing Head 8
Filling Head 8
Capping Head 3
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Gas Consumption 0.4 m3/min
Motor Power 9.18kW
Voltage 380V



250 - 1000ml Glass Bottle Drink Hot Filling Plant / Fruit Juice Processing Line

250 - 1000ml Glass Bottle Drink Hot Filling Plant / Fruit Juice Processing Line

250 - 1000ml Glass Bottle Drink Hot Filling Plant / Fruit Juice Processing Line
