Glass Bottle Grape Juice Liquid Hot Filling And Packing machine / Plant

China Glass Bottle Grape Juice Liquid Hot Filling And Packing machine / Plant supplier
Glass Bottle Grape Juice Liquid Hot Filling And Packing machine / Plant supplier Glass Bottle Grape Juice Liquid Hot Filling And Packing machine / Plant supplier Glass Bottle Grape Juice Liquid Hot Filling And Packing machine / Plant supplier Glass Bottle Grape Juice Liquid Hot Filling And Packing machine / Plant supplier Glass Bottle Grape Juice Liquid Hot Filling And Packing machine / Plant supplier

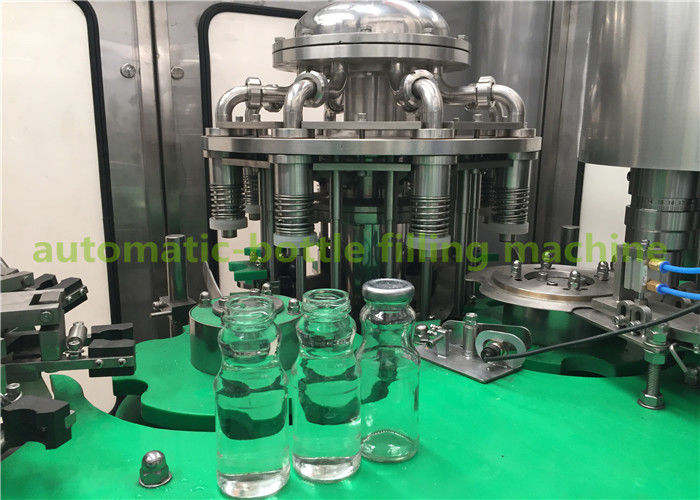

Large Image :  Glass Bottle Grape Juice Liquid Hot Filling And Packing machine / Plant

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF8-8-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Driven Type: Electric Bottle Volumn: 250-1000ml
Automatic Grade: Fully-automatic Weight: 2000kg
Dimension: 2450*1800*2200mm Machiner Material: Stainless Steel 304
Filling Temperature: Hot Temperature Capacity: 3000BPH(500ML)

Glass Bottle Grape Juice Liquid Hot Filling And Packing machine / Plant



Character
The material of the bottles can be PET,glass and so on.The functiion of fluent and fast filling action, high filling precision, reliable capping and low material loss makes it effectively prevent secondary polluction of the neck with high automation in the whole process. It can achieve the replacement of different bottles only by exchanging equivalent parts.

Feature
1.This machine has a compact structure, perfect control system, easy to operate and highly automated.
2.The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.
3.By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
4.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
5.This machine has a high efficient cap arranging system, perfect cap feeding and protection device.
6.Equipped with perfect clean management system to ensure the bottle clean.
7.Only by changing the star-wheel, can realize to fill the changed bottle shape.
8.The machine adopts perfect overload protective device can ensure the operator and machine safe.
9.This machine adopts adjustable frequency converter.
10.The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
11.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
12.The electric components and pneumatic components are all introduced from world famous brand products.



Technique parameter

Model RCGF8-8-3
Rinsing Head 8
Filling Head 8
Capping Head 3
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Gas Consumption 0.4 m3/min
Motor Power 9.18kW
Voltage 380V



Glass Bottle Grape Juice Liquid Hot Filling And Packing machine / Plant

Glass Bottle Grape Juice Liquid Hot Filling And Packing machine / Plant

Glass Bottle Grape Juice Liquid Hot Filling And Packing machine / Plant
