Glass Bottle Filling Machine Plant for Juice / Beer / Carbonated Drink

China Glass Bottle Filling Machine Plant for Juice / Beer / Carbonated Drink supplier
Glass Bottle Filling Machine Plant for Juice / Beer / Carbonated Drink supplier Glass Bottle Filling Machine Plant for Juice / Beer / Carbonated Drink supplier Glass Bottle Filling Machine Plant for Juice / Beer / Carbonated Drink supplier Glass Bottle Filling Machine Plant for Juice / Beer / Carbonated Drink supplier Glass Bottle Filling Machine Plant for Juice / Beer / Carbonated Drink supplier

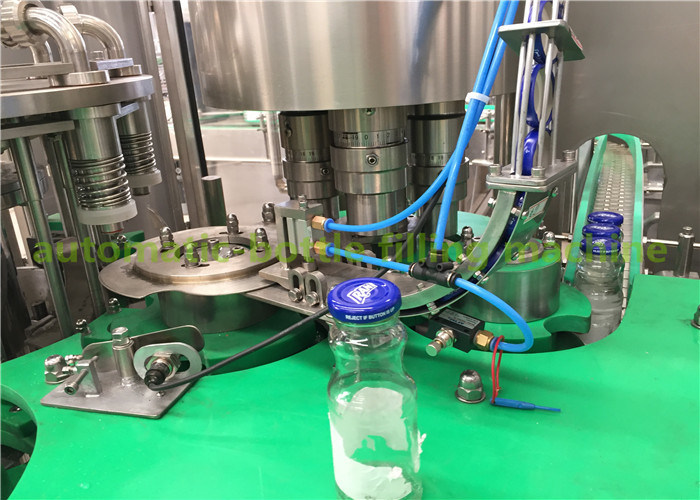

Large Image :  Glass Bottle Filling Machine Plant for Juice / Beer / Carbonated Drink

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF8-8-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Type: Filling Machine Bottle Volumn: 250-1000ml
Automatic Grade: Fully-automatic Weight: 2000kg
Dimension: 2450*1800*2200mm Machiner Material: Stainless Steel 304
Warranty: 1 Year Capacity: 3000BPH(500ML)

Glass Bottle Filling Machine Plant for Juice / Beer / Carbonated Drink



Introduction

The machine is mainly used for washing/filling/capping PET bottle juice, tea drinks and all kinds of energy drink for hot filling. Only need to change a few spare parts, that can suitable for filling pure water and mineral water.


Features
1.The washing part using high-strength stainless steel bottles of spring -loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of sidewall and bottom to make the bottle very clean.
2.Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearings support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.
3.Using a low vacuum filling valve, hydraulic cylinder liquid surface of the float by automatic control, to maintain a constant level surface, when the filling valve injection liquid into the bottle shot, after the exhaust gasket sealed bottle the beginning moment that the establishment of the negative pressure (vacuum). At this time, the liquid cylinder in the wine (drink) poured into the bottle under the action of the gland, when the surfact you have not seen wine sucker rod stomata, the pumping stops, filling synchronization stops, filling valve upgrade into the sealed.
4.When the bottles from the filling machine to send over later, the bottle made from a material under a cap. Screw cap plunger under the action of the cam track to the decline in membership and then help promote capping head for screw cap operation.
5.All the materials in contact with valves, tanks and pipes are made of stainless steel 304. Inside and outside of the wall of mirror polished to ensure it's healthness and sanitation.
6.The whole operation adopts advanced man-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology. WIth no bottle, no filling. no cap no sealing, and othe security protection.



Technique parameter

Model RCGF8-8-3
Rinsing Head 8
Filling Head 8
Capping Head 3
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Gas Consumption 0.4 m3/min
Motor Power 9.18kW
Voltage 380V



Glass Bottle Filling Machine Plant for Juice / Beer / Carbonated Drink

Glass Bottle Filling Machine Plant for Juice / Beer / Carbonated DrinkGlass Bottle Filling Machine Plant for Juice / Beer / Carbonated Drink
