Glass Bottle 3-In-1 Liquid Juice Hot Filling Machine With Stainless Steel 304 5.88kw

Certification
Good quality Water Bottle Filling Machine for sales
Good quality Water Bottle Filling Machine for sales
Customer Reviews
Your machine quality is very good and technical team very professional, hope our products sell well!

—— Shiferaw Habte

I have worked with them for five years, their juice and carbonated machine help me spread my busniess acorss Africa, this year we place an 24000BPH carbonated line, looking forward to the machine installation in our factory early.

—— Umesh

I'm Online Chat Now

Glass Bottle 3-In-1 Liquid Juice Hot Filling Machine With Stainless Steel 304 5.88kw

China Glass Bottle 3-In-1 Liquid Juice Hot Filling Machine With Stainless Steel 304 5.88kw supplier
Glass Bottle 3-In-1 Liquid Juice Hot Filling Machine With Stainless Steel 304 5.88kw supplier Glass Bottle 3-In-1 Liquid Juice Hot Filling Machine With Stainless Steel 304 5.88kw supplier Glass Bottle 3-In-1 Liquid Juice Hot Filling Machine With Stainless Steel 304 5.88kw supplier Glass Bottle 3-In-1 Liquid Juice Hot Filling Machine With Stainless Steel 304 5.88kw supplier Glass Bottle 3-In-1 Liquid Juice Hot Filling Machine With Stainless Steel 304 5.88kw supplier

Large Image :  Glass Bottle 3-In-1 Liquid Juice Hot Filling Machine With Stainless Steel 304 5.88kw

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF8-8-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Driven Type: Electric Type Weight: 2000KG
Overall Dimension: 1800*1200*2150mm Power: 5.88kw
Processing Type: Water,juice,tea,milk,non-carbonated Beverage Capacity: 3000BPH(500ml)
Bottle Material: Glass Bottle Warranty: One Year For Free

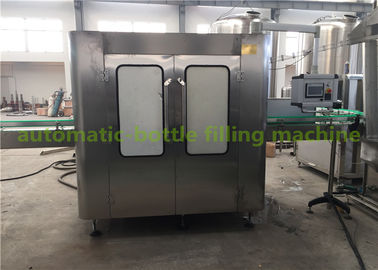

Glass Bottle 3-In-1 Liquid Juice Hot Filling Machine With Stainless Steel 304



Introduction:
The machine is for filling green tea,black tea and fruit juice drink and integrates washing,filling and capping together ,and adopts block bottle-neck hanging work state design and filling valve rise-drop design.
It can meet the requirements of hot filling of below 95 degrees Celsius. It adopts man-machine interface touch screen,PLC,transducer ,etc.

Features:
1.Bottles are delivered by suspension type clip bottle mouth conveying structure (except bottle out star wheel), bottle in adopts air conveying device, in the bottle washing station with flexible bottleneck clamp clamping, so that machine is more stable during operation , reliable, high-speed operation to adapt to the requirements of the machine. Simply adjust the conveyor of different bottle height and a small amount of change attachment, so for bottle faster, and effort.
2. Filling machine uses normal pressure filling technology is filling fast, reliable, non-drip, level accuracy. The machine has no bottle no filling characteristics.
3.Juice Filling Machine:Cap arranging device ensure the cover arrange speed, no damage to the cover surface. Comprehensive testing device can guarantee no bottle no cover, lack of cover down, full cover without cover conveying of functions.
4. The Juice Filling Machine main electrical, pneumatic components are imported components.
5. The frequency changing technology is used to adjust the operation speed. The production capacity can be displayed digitally and can be adjusted conveniently.



IF you want to the detailed quotation,please leave me these message
1, bottle vlolume
2, bottle materail (machines for glass bottle and plastic bottle are different)
3, how many bottles per hour you want to produce ?
4, do you need this water filling machines only or whole water production line



Technique parameter

Model RCGF8-8-3
Rinsing Head 8
Filling Head 8
Capping Head 3
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Gas Consumption 0.4 m3/min
Motor Power 9.18kW
Voltage 380V



Glass Bottle 3-In-1 Liquid Juice Hot Filling Machine With Stainless Steel 304 5.88kw

Glass Bottle 3-In-1 Liquid Juice Hot Filling Machine With Stainless Steel 304 5.88kw

Glass Bottle 3-In-1 Liquid Juice Hot Filling Machine With Stainless Steel 304 5.88kw
