5 Gallon 20 liter Water Filling Production Line Full Automatic

Certification
Good quality Water Bottle Filling Machine for sales
Good quality Water Bottle Filling Machine for sales
Customer Reviews
Your machine quality is very good and technical team very professional, hope our products sell well!

—— Shiferaw Habte

I have worked with them for five years, their juice and carbonated machine help me spread my busniess acorss Africa, this year we place an 24000BPH carbonated line, looking forward to the machine installation in our factory early.

—— Umesh

I'm Online Chat Now

5 Gallon 20 liter Water Filling Production Line Full Automatic

China 5 Gallon 20 liter Water Filling Production Line Full Automatic supplier
5 Gallon 20 liter Water Filling Production Line Full Automatic supplier 5 Gallon 20 liter Water Filling Production Line Full Automatic supplier 5 Gallon 20 liter Water Filling Production Line Full Automatic supplier 5 Gallon 20 liter Water Filling Production Line Full Automatic supplier 5 Gallon 20 liter Water Filling Production Line Full Automatic supplier

Large Image :  5 Gallon 20 liter Water Filling Production Line Full Automatic

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: QGF300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Driven Type: Electric Dimension(L*W*H): 3800*1300*1600mm
Capacity: 300barrels Per Hour Bottle Volume: 3-5gallon
Power: 3.8kw Weight: 1200kg
Warranty: One Year For Free Material: SS304

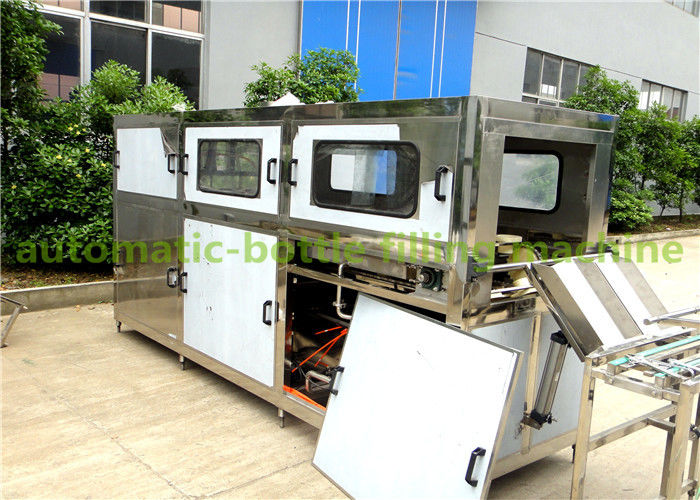

Full Automatic QGF-300 5 Gallon 20liter Water Filling Bottling Production Machine



Detailed Product Description
The 5 gallon or 3 gallon filler includes the washer, filler and capper for the production of 5&3 gallon

barreled drinking water. The washing process include alkali liquid inside and outside washing by dirty remover. Inside and outside washing by disinfectant fluid, inside and outside washing by pure water, the alkali and disinfectant fluid can be used cyclically. The whole washing, filling and sealing process is controlled by PC, and has the safe device for interlock,signal and self-detection.


The whole unit is made of the stainless steel, meets the demands of food hygiene, with the feature of reasonable structure, easy in operation, exact action, its the ideal equipment for the barreled water.



Mostly electric components are adopt Siemens, OMRON etc famous company. Electric component adopt import Air TAC famous brand product. The machine is advanced in construction, occupying small area, steady in performance, high in produce efficiency, high in automatization degree. Easy in operation, which integrates machinery, electricity and pneumatics technologies together into one unit full automatic

barreling machine.
It is especially used for 5 Gallon barrel pure water washing, filling, capping production line.

The parts with touch water adopt high-quality stainless steel. The cylinder gear runs smoothly and the fixed position is correct. It adopts inserting-type washing technology to remove washing blind angle.
This 5 gallon or 3 gallon filler (QGF300) information:
The washing head: 2*12
The filling head: 2
The capping head: 1



Main parameter

Model QGF-150 QGF-300 QGF-450 QGF-600 QGF-900
Filling heads 1 2 3 4 6
Volume 18.9 18.9 18.9 18.9 18.9
Barrel size 270*490 270*490 270*490 270*490 270*490
Capacity 150 300
Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
Gas consumption 0.37 0.6 0.8 1 1.2
Motor power 1.75 3.8 3.8 7.5 9
Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Weight 700 1200 1600 2000 3500
Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

4200*2300*1600

2800*1000*1600

5 Gallon 20 liter Water Filling Production Line Full Automatic

5 Gallon 20 liter Water Filling Production Line Full Automatic

5 Gallon 20 liter Water Filling Production Line Full Automatic
