300BPH 5 Gallon Bucket Water Filling Machine / Water Bottle Plant SS304

300BPH 5 Gallon Bucket Water Filling Machine /  Water Bottle Plant SS304
300BPH 5 Gallon Bucket Water Filling Machine /  Water Bottle Plant SS304

Large Image :  300BPH 5 Gallon Bucket Water Filling Machine / Water Bottle Plant SS304

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: QGF300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Color: Silver Gray Dimension(L*W*H): 3800*1300*1600mm
Capacity: 300barrels Per Hour Bottle Volume: 3-5gallon
Power: 3.8kw Weight: 1200kg
Voltage: 380V/50Hz Material: SS304
High Light:

20 ltr water jar filling machine

,

fully automatic filling machine

300BPH 5 Gallon Bucket Water Filling Machine / 20liter Water Bottling Plant SS304

Products Description

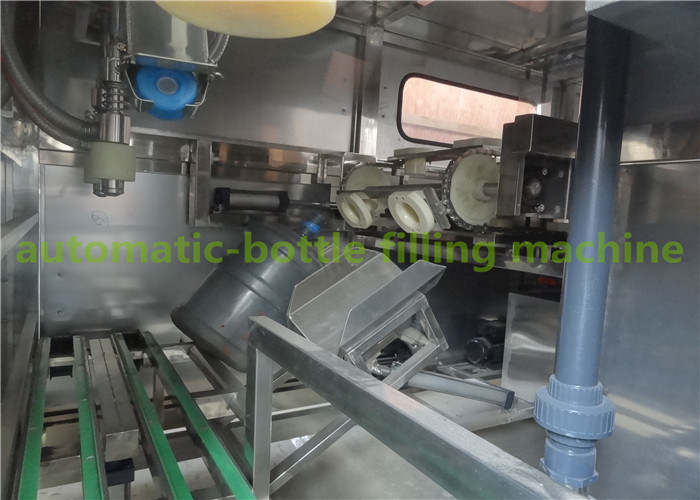

QGF-300 barrel filling machine is main frame for filling 5 gallon barreled water. It consists of frame, water tank, pipeline, water pump, air tank, transmission machine, electric machine, can finish empty barrel washing , filling , capping .The whole working process was control by PLC, realize stability washing effect, accurate filling capacity and perfect capping effect.
This line equips with water spraying device in order to ensure those caps sterile and clean. It also can automatically carry out barrel, washing, sterilizing, filling, capping, counting and discharging. With complete function, modern design and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatic technologies together.



Feature
1. QGF type auto barreled water production line is specially used in 3 gallon5 gallon barreled water producing.
2. The complete line has washerfillercapper three function in one body, it is the ideal equipment for pure water, mineral water.
3. Total line is made by SUS304.
4. The main electric parts use Japanese Mitsubishi, Omron and so on.
5. The air pressure system adopts Taiwan Airtac brand product.
6. This machine has features as compact structure, low floor area, high efficiency.
7. 5 Gallon barreled production line is popular in South American.



Main parameter

Model QGF-150 QGF-300 QGF-450 QGF-600 QGF-900
Filling heads 1 2 3 4 6
Volume 18.9 18.9 18.9 18.9 18.9
Barrel size 270*490 270*490 270*490 270*490 270*490
Capacity 150 300
Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
Gas consumption 0.37 0.6 0.8 1 1.2
Motor power 1.75 3.8 3.8 7.5 9
Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Weight 700 1200 1600 2000 3500
Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

4200*2300*1600

2800*1000*1600
