|Capacity:||150barrels Per Hour||Bottle Volume:||3-5gallon|

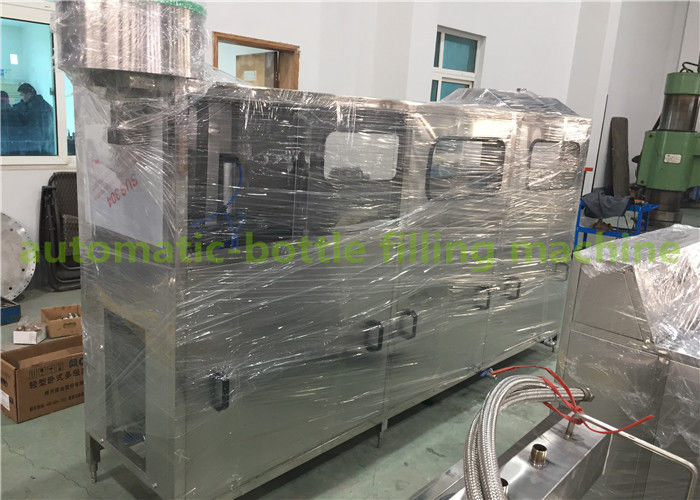

The production line is designed for 3-5 gallon barreled drinking water, with different capacity QGF-150,QGF-300,QGF-450,QGF-600,QGF-900 for optional. It combined bottle washing, filling capping in one unit. In order to achieve the purpose of washing and sterilizing, the washing machine uses multi-washing liquid spray and thimerosal spray. The thimerosal can be used circularly. The capping machine can cap barrel automatically. This line equips with water spraying device in order to ensure those caps sterile and clean. It also can automatically carry out barrel, washing, sterilizing, filling, capping, counting and discharging. With complete function, modern design and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatic technologies together.
(1) This filling line specially produces 3&5 gallons barreled drinking water.
(2)This series barreled filling production line integrates bottle washer, filler and sealer into one unit.
(3) In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
(4) This filling line equips with water spraying device to sterilize caps of bottles in order toensure those caps are aseptic and healthy.
(5) This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.
(6) It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.
2).Advanced PLC control system
3).The key parts are imported and their quality is reliable.
4).Barreled water production line machine is made of stainless steel.
5).Its structure is reasonable and its operation is convenient.
6).Easy cleaning and corrosion.
If you want to see the video of how this machine works,please click here:
|Gas pressure||0.4 -0.6||0.4 -0.6||0.4 -0.6||0.4 -0.6||0.4 -0.6|
