Pure Drinking Water Filling Machine / 5 Gallon Filling Line Electric Driven type

China Pure Drinking Water Filling Machine / 5 Gallon Filling Line Electric Driven type supplier
Pure Drinking Water Filling Machine / 5 Gallon Filling Line Electric Driven type supplier Pure Drinking Water Filling Machine / 5 Gallon Filling Line Electric Driven type supplier Pure Drinking Water Filling Machine / 5 Gallon Filling Line Electric Driven type supplier Pure Drinking Water Filling Machine / 5 Gallon Filling Line Electric Driven type supplier Pure Drinking Water Filling Machine / 5 Gallon Filling Line Electric Driven type supplier

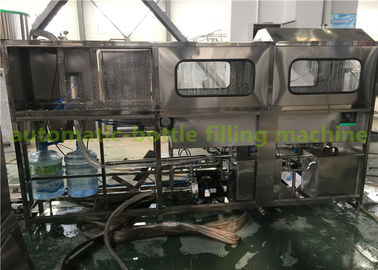

Large Image :  Pure Drinking Water Filling Machine / 5 Gallon Filling Line Electric Driven type

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: QGF-150

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Color: Silver Gray Dimension(L*W*H): 2800*1100*1600mm
Driven Type: Electric Bottle Volume: 3-5gallon
Power: 1.78kw Weight: 700kg
Voltage: 380V/50Hz Warranty: One Year For Free

20 Liter Bottled Pure Drinking Water Filling Machine For 5 Gallon Filling Line

Description

The production line is designed for 3-5 gallon barreled drinking water, with different capacity QGF-150,QGF-300,QGF-450,QGF-600,QGF-900 for optional. It combined bottle washing, filling capping in one unit. In order to achieve the purpose of washing and sterilizing, the washing machine uses multi-washing liquid spray and thimerosal spray. The thimerosal can be used circularly. The capping machine can cap barrel automatically. This line equips with water spraying device in order to ensure those caps sterile and clean. It also can automatically carry out barrel, washing, sterilizing, filling, capping, counting and discharging. With complete function, modern design and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatic technologies together.

Features

1) Our barreled water producing line is specially designed for 3-5 gallon drinking water;

2) The machine have the function of rinsing barrel, filling water into barrel, capping for the barrel after filling water;

3) Barrel packing is different from small PET bottle packing, usually the barrel is recycle using, so the barrel cleaning is very important as the first step. In our rinsing machine, the barrel will be cleaned by multiple liquid, from alkali water to disinfecting water, and then to the pure water, to ensure every barrel can be cleaned absolutely. And then the filling machine and capping machine will start to work automatically

4) In our capping machine, there is pure water spraying device, to sterilize the caps, avoid any pollution to the beverage;

5) Our producing line can carry out the bottle washing, sterilizing, filling, capping, counting, heat shrink labeling, packing, discharging



If you want to see the video of how this machine works,please click here:

https://youtu.be/F5XKJSwRdIU
https://youtu.be/JUJqhn9P6GI



Main parameter

Model QGF-150 QGF-300 QGF-450 QGF-600 QGF-900
Filling heads 1 2 3 4 6
Volume 18.9 18.9 18.9 18.9 18.9
Barrel size 270*490 270*490 270*490 270*490 270*490
Capacity 150 300
Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
Gas consumption 0.37 0.6 0.8 1 1.2
Motor power 1.75 3.8 3.8 7.5 9
Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Weight 700 1200 1600 2000 3500
Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

4200*2300*1600

2800*1000*1600



Pure Drinking Water Filling Machine / 5 Gallon Filling Line Electric Driven type

Pure Drinking Water Filling Machine / 5 Gallon Filling Line Electric Driven type

Pure Drinking Water Filling Machine / 5 Gallon Filling Line Electric Driven type
