Automatic Mineral Water 5 Gallon Bucket Filling Machine With PLC Control

China Automatic Mineral Water 5 Gallon Bucket Filling Machine With PLC Control supplier
Automatic Mineral Water 5 Gallon Bucket Filling Machine With PLC Control supplier Automatic Mineral Water 5 Gallon Bucket Filling Machine With PLC Control supplier Automatic Mineral Water 5 Gallon Bucket Filling Machine With PLC Control supplier Automatic Mineral Water 5 Gallon Bucket Filling Machine With PLC Control supplier Automatic Mineral Water 5 Gallon Bucket Filling Machine With PLC Control supplier

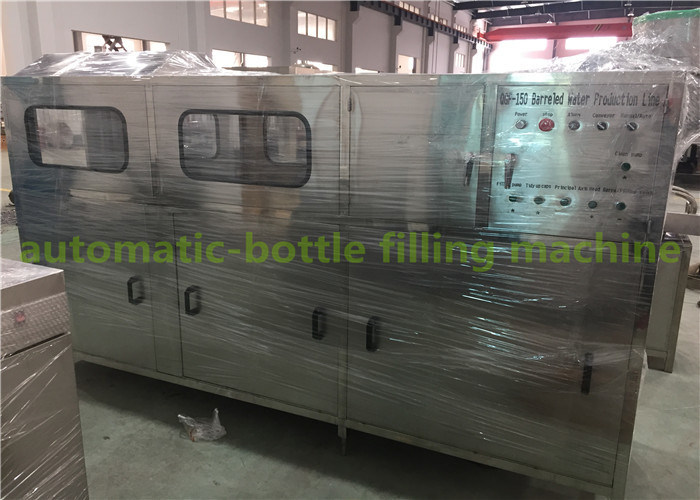

Large Image :  Automatic Mineral Water 5 Gallon Bucket Filling Machine With PLC Control

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: QGF-150

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Material: Stainless Steel 304 Dimension(L*W*H): 2800*1100*1600mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas Color: Silver Gray
Processing Type: Water Weight: 700kg
Driven Type: Electric Warranty: One Year For Free



Automatic Mineral Water 5 Gallon Bucket Filling Machine / Plant For Small Business

Description

QGF-150 5 gallon mineral water bottling line is mainframe for produce 5 gallon barreled water. It consist of frame, water tank, pipeline, water pump, air tank, transmission machine, electric machine, can finish empty barrel washing , filling , capping through several washing , fit quantify filling and auto wear lid and capping. The whole working process was control by PLC, realize stability washing effect, accurate filling capacity and perfect capping effect

Features

1,This Barreled Water Production Line specially produce 3-5 gallons barreled drinking water, those types(barrels/hour)are:150 type, 300 type,450 type, 600 type, 750 type,900 type.

2,It is controlled by PLC and made of food grade SUS304.

3,It integrates bottle washer, filler and sealer into one unit.

4,In order to achieve the purpose of washing and sterilizing ,washing machine use multi-washing liquid spray and-thimerosal soray, this merosal can be used circularly.

5,The sealer can seal barrel caps automatically. This line equips with water spraying device in order to ensure those caps sterile and clean, also this line can automatically carry out barrel, washing, sterilizing, filling, capping, counting and products discharging.



Main parameter

Model QGF-150 QGF-300 QGF-450 QGF-600 QGF-900
Filling heads 1 2 3 4 6
Volume 18.9 18.9 18.9 18.9 18.9
Barrel size 270*490 270*490 270*490 270*490 270*490
Capacity 150 300
Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
Gas consumption 0.37 0.6 0.8 1 1.2
Motor power 1.75 3.8 3.8 7.5 9
Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Weight 700 1200 1600 2000 3500
Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

4200*2300*1600

2800*1000*1600



Please click here to see the video of testing this 150BPH 5 gallon water filling machine

https://youtu.be/F5XKJSwRdIU
https://youtu.be/JUJqhn9P6GI



Cap loader
Automatic Mineral Water 5 Gallon Bucket Filling Machine With PLC Control

Filling part

Automatic Mineral Water 5 Gallon Bucket Filling Machine With PLC Control

Barrel loading machine

Automatic Mineral Water 5 Gallon Bucket Filling Machine With PLC Control






"This QGF-450 5 gallon water filling machine is designed for our Russian customer"

Our Five Star after-sales Service

1.One year warranty for the whole system.

2.Free equipment installation and debugging.

3.After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.

4.We can provide internship service and help you train the operator and mechanic.

5.Free beverage production technology and process configuration.

6.We can help you to design the product line, workshop and provide turn-key project.
