Rotary Type Automatic Split 2 in 1 Juice Can Filling and Sealing Machine

China Rotary Type Automatic Split 2 in 1 Juice Can Filling and Sealing Machine supplier
Rotary Type Automatic Split 2 in 1 Juice Can Filling and Sealing Machine supplier Rotary Type Automatic Split 2 in 1 Juice Can Filling and Sealing Machine supplier Rotary Type Automatic Split 2 in 1 Juice Can Filling and Sealing Machine supplier Rotary Type Automatic Split 2 in 1 Juice Can Filling and Sealing Machine supplier Rotary Type Automatic Split 2 in 1 Juice Can Filling and Sealing Machine supplier

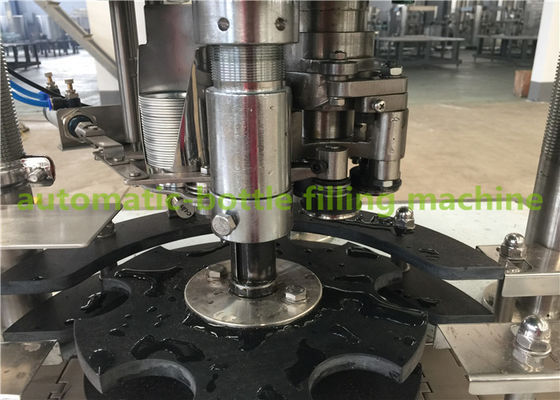

Large Image :  Rotary Type Automatic Split 2 in 1 Juice Can Filling and Sealing Machine

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE ISO SGS
Model Number: CYG-12 FXZ-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Filling Type: Negative Pressure Filling Driven Typr: Electric
Warranty: One Year For Free Can Material: Aluminum Can,tin Can,pet
Power: 2.5kw Color: Silver Gray
Weight: 500kg Capacity: 1000-2000CPH

Rotary Type Automatic Split 2 in 1 Juice Can Filling and Sealing Machine



Introduction

The machine is a device developed exclusively by Fillex machinery on the basis of digesting and absorbing domestic and international (still) pop can filling and seaming machine (sealing machines). It adopts the negative pressure filling principle. After it passes through the dialing wheel, the empty can will enter into the lift can supporting disc, and the filling valve is aligned with the empty can, which will rise for sealing. Meanwhile, the valve port of the filling valve is automatically opened. When the filling can will be conveyed to the sealing machine head by the hook chain. The cap will be sent onto the can mouth by the cap rises, the pressing head presses he can mouth, the sealing wheel carries out pre-sealing and then real sealing. After it is sealed, the can is pushed out by the beating head of the cap beating mechanism and then enters into the can discharging procedure.



GFP Series negative pressure filler

The filler can accurately fill drink which does not contain gas, such as white spirit fruit wine, juice and fruit syrum. It can also fill other liquid such as vinegar, milk, and pesucide. It has advantages of no broken bottle, no clepsydra, and convenient maintenance and others. It also has overload protection and LCD. As the filler works in fully sealed condition and no pollution comes. It meets the requirements of FOOD Stuff Sanitation Law.



Technical parameter

Model QSG16 can rinsing machine GFP-12 FXZ-1
Production capacity 2000 2000 2000
Bottle/can type ∅40-80 ∅40-90 H50-340 ∅50-67 H90-200
Power(kw) 0.55 1.1 0.75
Overall dimensions(mm) 1900*530*1100 810*1050*2050 930*700*1850
Weight(kg) 480 500 500



Rotary Type Automatic Split 2 in 1 Juice Can Filling and Sealing Machine

Rotary Type Automatic Split 2 in 1 Juice Can Filling and Sealing Machine

Rotary Type Automatic Split 2 in 1 Juice Can Filling and Sealing Machine
