| Voltage: | 380V/50Hz | Automatic Grade: | Fully-automatic |
|---|---|---|---|
| Weight: | 3500kg | Material: | SS304 |
| Warranty: | One Year For Free | Function: | Bottle Washing Filling Capping |
| Driven Type: | Electric | Power: | 5.03kw |
| High Light: | mineral water filling machine,automatic water filling machine |
||
Introduction
The bottle filling machine is based on the introduction of foreign technology,combined with our years of manufacturing experience .The water filling machine combines Washing,Filling and Capping from jst machinery ,with scientific and rationaldesign,beautiful shape.it is easy in maintenance ,with automation.This water packaging machinery is mainly used for water filling .
Features

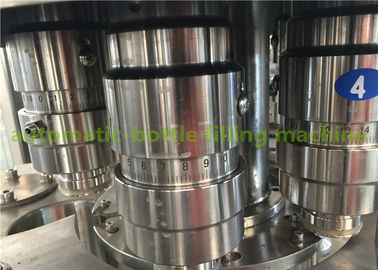

1. Rinsing empty bottle, filling, and capping functions from jst machinery are integrated in one system, fully automatic synchronized working.
2. Bottle travels on neck to neck from in-feed till out-feed resulting scratch free movement of bottle.

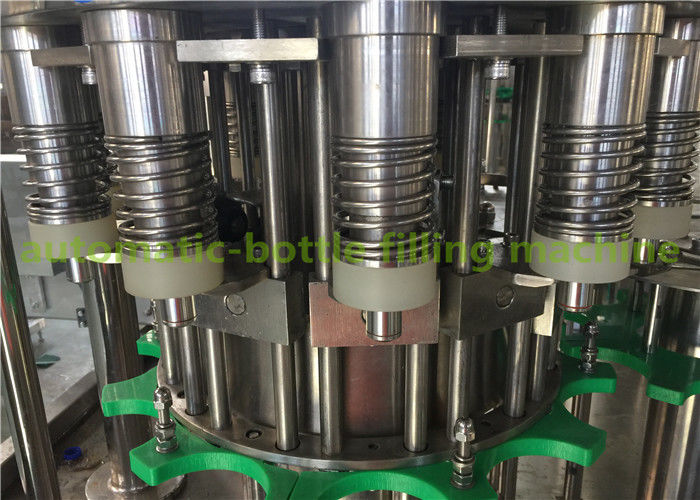

3. Pressure filling nozzles deliver fast, efficient, and accurate dispensing with minimal dripping and leakage.
4. No Bottle No Filling, no caps no capping, no caps auto stops
5. When bottle jam auto stop, machine accident auto stop
6. Open the window when machine running, machine auto paused
7. Heavy duty stainless steel filling pump & rinsing pump
8. Food grade 316L or 304stainless steel contact parts, smooth & fine polish,no dead angles
9. Adopted first class component from Mitsubishi, OMRON, SIEMENS, With PLC, invertors control, touch screen, sensor, switch and other electric parts.
10. Machine and cable arrangement designed according to CE standard and all safety standard.
11. CGF16-12-6 .Filling speed : 4000bph @500ml
12. Suitable bottle size :200ml-2000ml
After you see all these details' photos ,why do you still hesitate not to contact us ?
We have strong after-sales service team for this Automatic Bottle Water Filling Machine
:1) engineers abroad to install the complete filling line .
:2).We have one years' machine guarantee time
:3) We can help you design the bottles ,also labels, and calculate PE film size.
:4) We have good English translators to communicate with you .
:5) We have client cases in different countries , we can provide their production working video for you .
Technical parameters
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
| Production capacity(500ml)(b/h) | 2000-4000 | 4000-6000 | 8000-10000 | 12000-15000(0.5L) |
| Filling precision | ≤±5MM(Liquid Level) | |||
| Polyester bottle standard(mm) | Bottle diameter40-80; | |||
| Height | Height:130-280 | (Height):150-320 | ||
| Suitable cap shape | Plastic Screw Cap | |||
| Water pressure of Washing bottle(MPa) | 0.18 | |||
| Water consumption for Water bottle (kg/h) | 800 | 1600 | 2500 | 3500 |
| Spraying position | 5 | 5 | 6 | 12 |
| Dripping bottle position | 3 | 3 | 3.5 | 7 |
| Gas source pressure(Mpa) | normal pressure | |||
| Gas consumption(m3/mm) | 0.3 | 0.3 | 0.4 | 0.5 |
| Total power | 4.23 | 5.03 | 6.57 | 8.63 |
| Total weight | 2000 | 3500 | 5500 | 8000 |
| Dimension(L*W*H)mm | 2100×1500×2200 | 2450×1800×2200 | 2750×2180×2200 | 3500×2200×2250 |
