3 In 1 Plastic Mineral / Water Bottle Filling Machine With 12 Heads

China 3 In 1 Plastic Mineral / Water Bottle Filling Machine With 12 Heads supplier
3 In 1 Plastic Mineral / Water Bottle Filling Machine With 12 Heads supplier 3 In 1 Plastic Mineral / Water Bottle Filling Machine With 12 Heads supplier 3 In 1 Plastic Mineral / Water Bottle Filling Machine With 12 Heads supplier 3 In 1 Plastic Mineral / Water Bottle Filling Machine With 12 Heads supplier 3 In 1 Plastic Mineral / Water Bottle Filling Machine With 12 Heads supplier

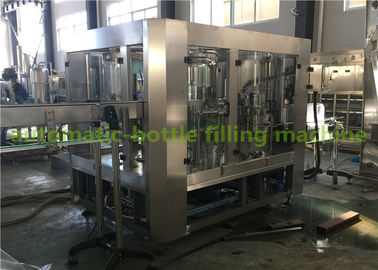

Large Image :  3 In 1 Plastic Mineral / Water Bottle Filling Machine With 12 Heads

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF16-12-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Capacity: 4000BPH(500ml) Control System: PLC Control+touch Screen
Automatic Grade: Fully-automatic Weight: 2000kg
Material: SS304 Warranty: One Year For Free
Function: Bottle Washing Filling Capping Driven Type: Electric

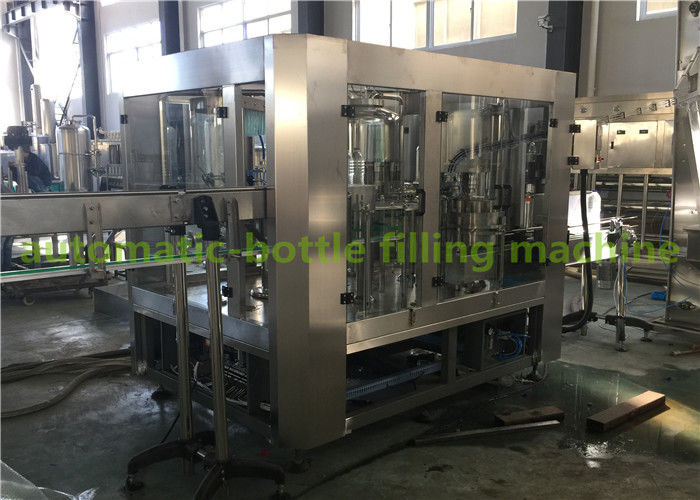

3 In 1 Plastic Mineral / Water Bottle Filling Machine With 12 Heads




Introduction

1. The 3 in 1 Plastic bottle water filling machine / mineral water bottling machine is used for filling drinking water, pure water, mineral water in plastic bottle with screw cap.
2. Bottle from 200-2000ml with same bottle mouth is avaliable to one machine, don't need any bottle change part, easy to share and operation.
3. The machine is monoblock with bottle washing, filling capping parts, 3 in 1 machine, with 16 washing heads, 12 filling heads, 6 capping heads, more convenient to use.
4.The bottle pure water filling machine is full automatic with PLC touch screen control system, speed is adjustable.
5. The machine main adopts high quality of stainless steel of
6. The machine filling capacity is 4000BPH, filling pressure is normal pressure.
7. The machine is set with 2m air conveyor and 2m chain conveyor.
8. The machine is with bottle washing, filling, capping, cap sorting, cap loading function, no bottle no filling control system, no cap no work function.



Rinser of water bottle filling machine

Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

Rinsing machine adopts JST original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.

Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angleensures to wash all side of the bottle, and can save the water

Filler of water bottle filling machine

2mm (subject to bottle design).The filling valve material is SUS304.The filling system has liquid level automatic control from JST Machinery .Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck,it starts to fill.Bottle is conveying by the wheel in the filling part.

Capping machine detail

Screw capping machine is most precision part in the 3-in-1 machine,it has a big influence to the goods stability and defective rate. our screw capping has following feature.

1)JST machinery import of advanced technology of screw capping,improve the stability and reliability of the screw capping machine. The magnetic torque is used for screw capping. Thepower of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged

2) In the screw capping part. it installed photoelectrical control , when it has no cap ,or the cap is bad, the machine will stop automatically.



Technical parameters

Model CGF16-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10
Production capacity(500ml)(b/h) 2000-4000 4000-6000 8000-10000 12000-15000(0.5L)
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80;
Height Height:130-280 (Height):150-320
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa) 0.18
Water consumption for Water bottle (kg/h) 800 1600 2500 3500
Spraying position 5 5 6 12
Dripping bottle position 3 3 3.5 7
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.3 0.3 0.4 0.5
Total power 4.23 5.03 6.57 8.63
Total weight 2000 3500 5500 8000
Dimension(L*W*H)mm 2100×1500×2200 2450×1800×2200 2750×2180×2200

3500×2200×2250



3 In 1 Plastic Mineral / Water Bottle Filling Machine With 12 Heads

3 In 1 Plastic Mineral / Water Bottle Filling Machine With 12 Heads

3 In 1 Plastic Mineral / Water Bottle Filling Machine With 12 Heads
