Product Details:
Payment & Shipping Terms:
|
| Filling Volume: | 200-2000ml | Overall Dimension(L*W*H): | 3500*2200*2250mm |
|---|---|---|---|
| Capacity: | 12000BPH(500ml) | Filling Temperature: | Room Temperature |
| Control System: | PLC Control+touch Screen | Automatic Grade: | Fully-automatic |
| Weight: | 6000kg | Color: | Silver Gray |
| High Light: | mineral water filling machine,automatic water filling machine |
||
The water filling machine will base on
1, the production capacity per hour
2, bottle type: plastic bottle, glass bottle or another
3, cap type: plastic screw cap, aluminum screw cap or another
Please send us the inquiry with above points so that we can help to send better quotation for reference
Features
| Machine structure |
1. washing, filling and capping part in one unit; 2. one driving system makes the speed more stable 3. need one person to operate the machine 4. no noisy while running 5. more compact 6. different bottles can be applied in same machine (the bottle neck should be the same) |
| Washing part |
1.the star wheel to hold the bottle neck to avoid damage the bottle mouth 2.there is nylon grip to protect bottle mouth |

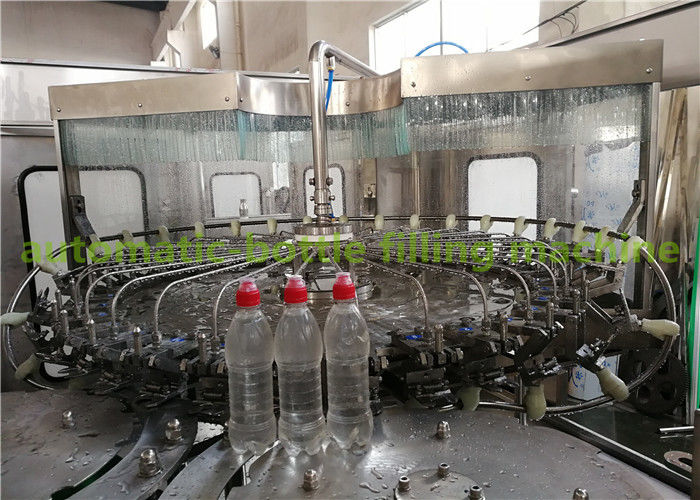

| Filling part |
1.round liquid tank, no residual after filling 2.the valves are stainless steel 304 3.no bottle no filling 4.filling level can be adjusted |
| Capping part |
1.there is anti-rotary blade to fix the bottle without moving 2.the capping torque can be adjusted |
| Control system |
1.PLC control 2Touch screen |
| Electric part | All the electric parts are well-known brand |
Technical parameters
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
| Production capacity(500ml)(b/h) | 2000-4000 | 4000-6000 | 8000-10000 | 12000-15000(0.5L) |
| Filling precision | ≤±5MM(Liquid Level) | |||
| Polyester bottle standard(mm) | Bottle diameter40-80; | |||
| Height | Height:130-280 | (Height):150-320 | ||
| Suitable cap shape | Plastic Screw Cap | |||
| Water pressure of Washing bottle(MPa) | 0.18 | |||
| Water consumption for Water bottle (kg/h) | 800 | 1600 | 2500 | 3500 |
| Spraying position | 5 | 5 | 6 | 12 |
| Dripping bottle position | 3 | 3 | 3.5 | 7 |
| Gas source pressure(Mpa) | normal pressure | |||
| Gas consumption(m3/mm) | 0.3 | 0.3 | 0.4 | 0.5 |
| Total power | 4.23 | 5.03 | 6.57 | 8.63 |
| Total weight | 2000 | 3500 | 5500 | 8000 |
| Dimension(L*W*H)mm | 2100×1500×2200 | 2450×1800×2200 | 2750×2180×2200 |
3500×2200×2250 |
