Automatic Water Processing Machine For 6.57kw Mineral Pure Water Bottling Plant

China Automatic Water Processing Machine For 6.57kw Mineral Pure Water Bottling Plant supplier
Automatic Water Processing Machine For 6.57kw Mineral Pure Water Bottling Plant supplier Automatic Water Processing Machine For 6.57kw Mineral Pure Water Bottling Plant supplier Automatic Water Processing Machine For 6.57kw Mineral Pure Water Bottling Plant supplier Automatic Water Processing Machine For 6.57kw Mineral Pure Water Bottling Plant supplier Automatic Water Processing Machine For 6.57kw Mineral Pure Water Bottling Plant supplier

Large Image :  Automatic Water Processing Machine For 6.57kw Mineral Pure Water Bottling Plant

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Weight: 5500kg Dimension(L*W*H): 2750*2180*2200mm
Warranty: One Year For Free Control System: PLC+touch Screen
Filling Material: Stainless Steel 304 Atumatic Grade: Fully-automatic
Power: 6.57kw Driven Type: Electric



Automatic Water Processing Machine For 6.57kw Mineral Pure Water Bottling Plant


Introduction

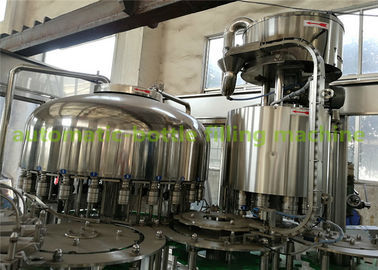

The gravity filling Mono-bloc is used to bottle pure water and mineral water. This machine is integrated with washing, filling and capping in one machine. It takes bottle handling technology, which makes changing different size bottle more easily.

It can do the bottles from size 200ml to 2000ml. And little spares are need when changing bottles. We suggest users to take same specification bottles, especially the same bottle neck.

Our mono-bloc uses high quality stainless steel 304, which makes sure the quality of the products. The washing we take reversing bottle methods. It has so many washing heads which will spray the inside of the bottle after the bottle is reversed. After washing there will approximate 2 seconds dropping water. Capping we use magnetic capper.

Features
1. The machine is easy to change the shape of bottles, which can be done by changing thethumb wheel
without adjusting the height of the machine.
2. The filling water machine case and the parts contacting with the materials are made ofstainless steel
which ensures the good external look and easy washing.
3. Each water filling machine element tha contacts with the liquid is made of high quality Stainless steel 304,
if needed,Stainless steel is also available.

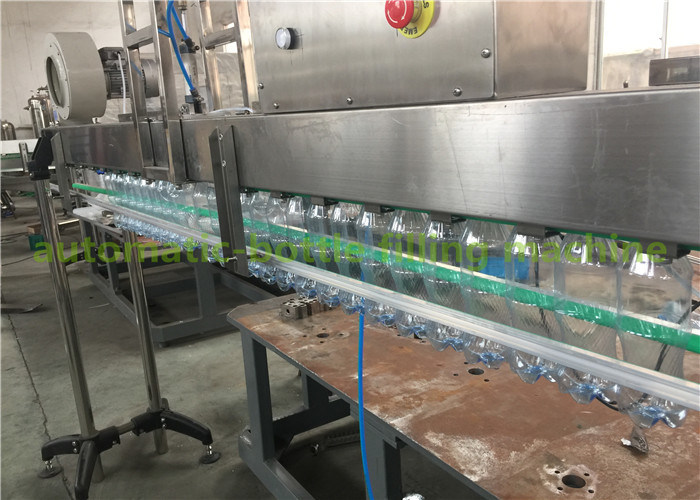

4. The water filling machine adopts bottle neck holding transmission technology to realize fully automatic
rinsing, filling and capping.
5. Most elements of the electrical system use famous international brand, for example,Mitsubish,Omron
brand .
6. The water filling machine obtain the advantages of good abrasive resistance,high stability,low failure rate,
etc. The quality of the equipments reaches the advanced level of the world.
7. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
8. Easy to operate, save the cost for workers.

Technical parameter

Model CGF24-24-8
Production capacity(500ml)(b/h) 8000-10000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80;
Height Height:130-280
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa) 0.18
Water consumption for Water bottle (kg/h) 800
Spraying position 6
Dripping bottle position 3.5
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.4
Total power 6.57
Total weight 5500
Dimension(L*W*H) 2750*2180*2200
Automatic Water Processing Machine For 6.57kw Mineral Pure Water Bottling Plant
Automatic Water Processing Machine For 6.57kw Mineral Pure Water Bottling Plant
Automatic Water Processing Machine For 6.57kw Mineral Pure Water Bottling Plant
