Rinsing Filling Capping SS304 Automatic Bottle Filling Machine For Drinking Pure Water

China Rinsing Filling Capping SS304 Automatic Bottle Filling Machine For Drinking Pure Water supplier
Rinsing Filling Capping SS304 Automatic Bottle Filling Machine For Drinking Pure Water supplier Rinsing Filling Capping SS304 Automatic Bottle Filling Machine For Drinking Pure Water supplier Rinsing Filling Capping SS304 Automatic Bottle Filling Machine For Drinking Pure Water supplier Rinsing Filling Capping SS304 Automatic Bottle Filling Machine For Drinking Pure Water supplier Rinsing Filling Capping SS304 Automatic Bottle Filling Machine For Drinking Pure Water supplier

Large Image :  Rinsing Filling Capping SS304 Automatic Bottle Filling Machine For Drinking Pure Water

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Color: Silver Gray Weight: 5500kg
Dimension(L*W*H): 2750*2180*2200mm Warranty: One Year For Free
Control System: PLC+touch Screen Filling Material: SS304
Atumatic Grade: Fully-automatic Power: 6.57kw



SS304 Automatic Bottle Filling Machine For Drinking Pure Water Complete Line



The water filling machine can be 3 in 1 monobloc, including bottle rinsing, filling, capping. It can also be matched with other machines like carton packing machines, labeling machines and date printing machine and palletizer to form one whole line.

Main Feature

1. Composition: Base, rinsing filling capping.

(P.S. : Associated equipment includies water treatment system injection machine, bottle blowing machine,

labeling machine, shrink wrapper, palletizing machine; bottle inkjet coder, inspection lamp, air conveyor, bottles conveyor, carton conveyor, carton ink-jet coder, changeable parts for various bottles can be supplied.)

2. Drive Mode: Starwheel Driven (Bottles )

3. Control System: PLC

4. Rinser/ Filler/ Capper Monobloc Introduction:

a. Rinser: Rotary; Bottle grippers on starwheel and washing water nozzles equipped; CIP system;

(Gripped bottle are turned over and mouth centred above the nozzle spraying water into the bottle, after

which bottles are turned to original position.)

b. Filler: Removable filling valves made of food-grade stainless steel and erode-resistant seal ring;

c. Capper: Rotary; Consists of cap hopper, cap feeder and cam-actuating capping heads (Able to raise or lower by a follower riding on a shaped cam).
(P.S.: For different bottles, parts of the monobloc should be changed.)

Technical parameter

Model CGF24-24-8
Production capacity(500ml)(b/h) 8000-10000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80;
Height Height:130-280
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa) 0.18
Water consumption for Water bottle (kg/h) 800
Spraying position 6
Dripping bottle position 3.5
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.4
Total power 6.57
Total weight 5500
Dimension(L*W*H) 2750*2180*2200

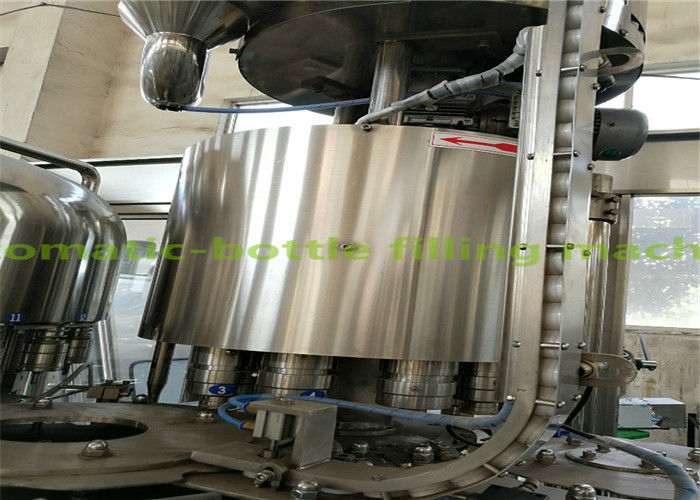

Rinsing Filling Capping SS304 Automatic Bottle Filling Machine For Drinking Pure Water

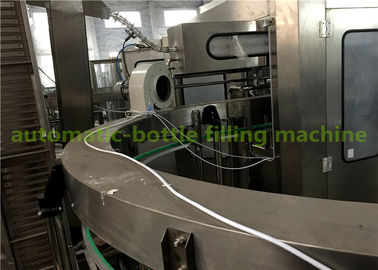

Rinsing Filling Capping SS304 Automatic Bottle Filling Machine For Drinking Pure Water
Rinsing Filling Capping SS304 Automatic Bottle Filling Machine For Drinking Pure Water
