Automatic Water Line For Bottle Washing Filling Capping Machine 2.75*2.18*2.2mm

China Automatic Water Line For Bottle Washing Filling Capping Machine 2.75*2.18*2.2mm supplier
Automatic Water Line For Bottle Washing Filling Capping Machine 2.75*2.18*2.2mm supplier Automatic Water Line For Bottle Washing Filling Capping Machine 2.75*2.18*2.2mm supplier Automatic Water Line For Bottle Washing Filling Capping Machine 2.75*2.18*2.2mm supplier Automatic Water Line For Bottle Washing Filling Capping Machine 2.75*2.18*2.2mm supplier Automatic Water Line For Bottle Washing Filling Capping Machine 2.75*2.18*2.2mm supplier

Large Image :  Automatic Water Line For Bottle Washing Filling Capping Machine 2.75*2.18*2.2mm

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Bottle Type: PET Plastic Bottle Automatic Grade: Fully-automatic
Weight: 5500kg Dimension(L*W*H): 2750*2180*2200mm
Warranty: One Year For Free Control System: PLC+touch Screen
Filling Material: SS304 Driven Type: Electric



Automatic Water Line For Bottle Washing Filling Capping Machine 2.75*2.18*2.2mm



Introduction

Complete Water Filling Plant adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping.Most elements of the electrical system employ famous brand advanced products.Each machine element that contacts with the liquid is made of high quality stainless steel.They obtain the advantages of good abrasive resistance, high stability, low failure rate etc.



Advantages

1. Automatic 3 in 1 Water Filling Machine adopt Rinsing / Filling / Capping 3-in-1 technology, PLC control, Touch Screen, it is mainly made of SUS304 or SUS316.

2. It is used for filling kinds of non-carbonated water, such as still water, drinking water. mineral water, spring water, flavored water.

3. Its usual production capacity is in 2000-24,000bph, 0.2-2L PET bottle is available.

4. Pivotal electrical part use Mitsubishi, OMRON, SIEMENS.

5. Filling accuracy is more or less than 1%.

6. We can provide water treatment machine, bottle blowing machine, bottle filling machine, labeling machine,wrapping packing machine etc.



Automatic water bottling line

A. Bottle production line (PET Resin-Injection moulding machine-Bottle blowing machine-PET bottle)
B. Water treatment system (Raw water-Pump-Silica sand filter-Carbon filter-Water softer-Reverse Osmosis-UV sterilizer-Ozone generator-Finished water tank)

C. Filling&Packing part Bottle unscrambler-Air conveyor-Washing, filling, capping 3 in 1 machine-Light checker-Blow dryer-Dater printer-Labeling machine-Packing machine-Stock.



Technical parameter

Model CGF24-24-8
Production capacity(500ml)(b/h) 8000-10000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80;
Height Height:130-280
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa) 0.18
Water consumption for Water bottle (kg/h) 800
Spraying position 6
Dripping bottle position 3.5
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.4
Total power 6.57
Total weight 5500
Dimension(L*W*H) 2750*2180*2200

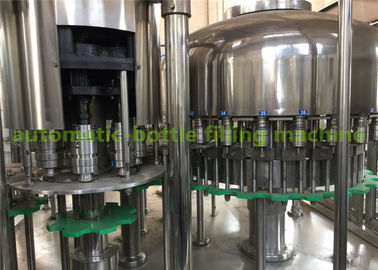

Automatic Water Line For Bottle Washing Filling Capping Machine 2.75*2.18*2.2mm

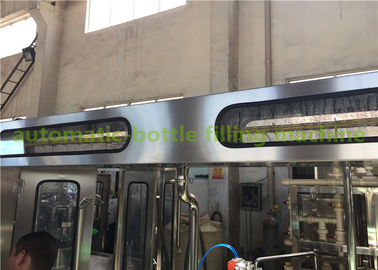

Automatic Water Line For Bottle Washing Filling Capping Machine 2.75*2.18*2.2mm



Automatic Water Line For Bottle Washing Filling Capping Machine 2.75*2.18*2.2mm
