3-In-1 Mineral Water Bottling Plant Automatic Bottle Filling Machine 5500kg

3-In-1 Mineral Water Bottling Plant Automatic Bottle Filling Machine 5500kg
3-In-1 Mineral Water Bottling Plant Automatic Bottle Filling Machine 5500kg

Large Image :  3-In-1 Mineral Water Bottling Plant Automatic Bottle Filling Machine 5500kg

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF24-24-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Bottle Type: PET Plastic Bottle Automatic Grade: Fully-automatic
Weight: 5500kg Dimension(L*W*H): 2750*2180*2200mm
Capacity: 8000-10000BPH(500ml) Warranty: One Year For Free
Control System: PLC+touch Screen Filling Material: SS304
High Light:

automatic bottling machine

,

liquid bottle filling machine



3-In-1 Mineral Water Bottling Plant For Medium Beverage Filling Line 5500kg



Introduction

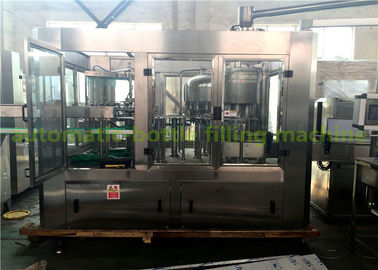

This water bottling plant / mineral filling machine is mainly used for washing, filling and capping 3 in 1 machine for mineral water,pure water and so on which is designed according to the requirements of ISO,CE. This unit is made of high quality SUS 304 stainless steel. Capping parts use the transverse torque and automatic slipping unit.

Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.water bottling plant / mineral filling machine

Main features

1. The water filling machine is automatic.It’s of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man machine communication true.

2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

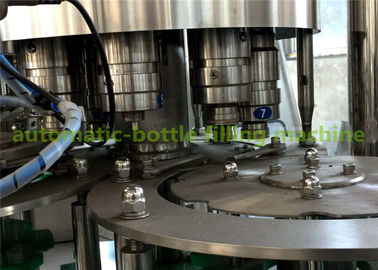

3. Filling part is composed of filling barrel, filling valves (normal temperature and normal pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, vacuum pump, etc.

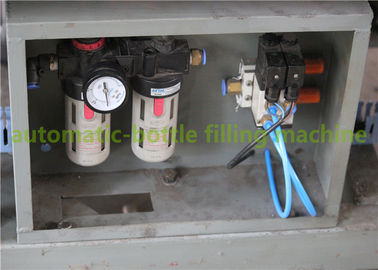

4. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.



Flow chart of complete bottled mineral water

A) Bottle production line

PET Resin--Injection moulding machine--Botlte blowing machine--PET bottle

B) Water treatment

system Raw water--Pump--Silica sand filter--Carbon filter--Water softner--Reverse Osmosis --UV sterilizer-Ozone generator--Finished water tank

C) Filling & Packing part

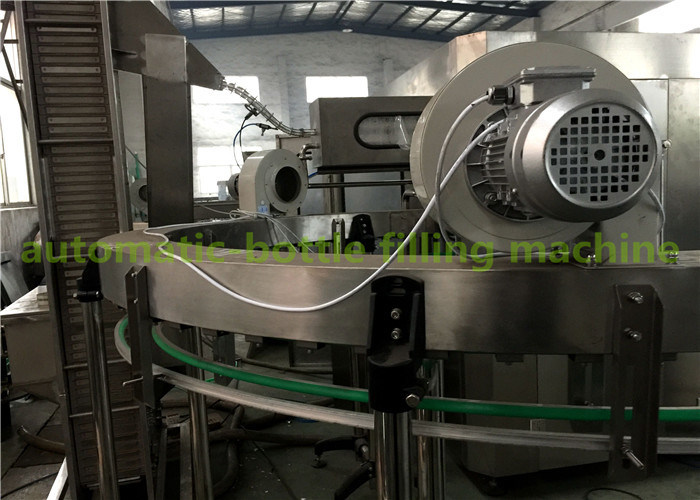

Bottle unscramble--Air conveyor--Washing, filling, capping 3in1machine—Lightchecker--Blow dryer--Dater printer --Lableing machine--Packing machine –Stock



Technical parameter

Model CGF24-24-8
Production capacity(500ml)(b/h) 8000-10000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80;
Height Height:130-280
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa) 0.18
Water consumption for Water bottle (kg/h) 800
Spraying position 6
Dripping bottle position 3.5
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.4
Total power 6.57
Total weight 5500
Dimension(L*W*H) 2750*2180*2200
