| Condition: | Fully New | Voltage: | 380V/50Hz |
|---|---|---|---|
| Weight: | 5500kg | Dimension(L*W*H): | 2750*2180*2200mm |
| Capacity: | 8000-10000BPH(500ml) | Warranty: | One Year For Free |
| Function: | Bottle Washing Filling Capping | Color: | Silver Gray |
| High Light: | automatic bottling machine,automatic bottle filling system |
||
Brief introduction

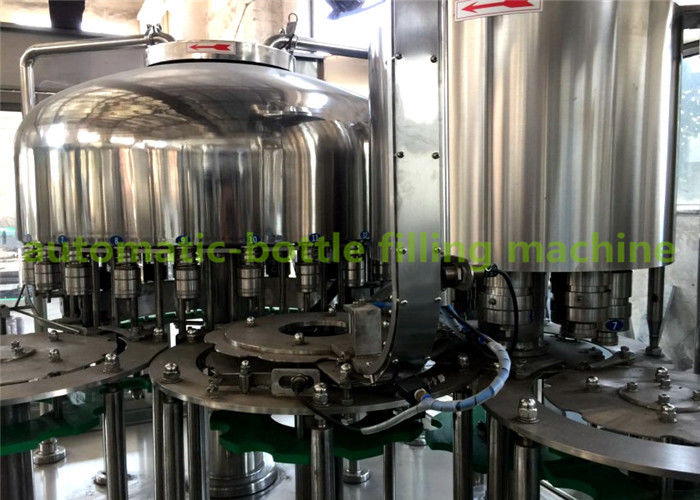

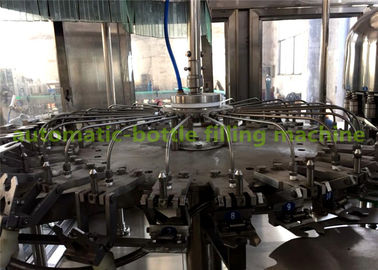

This Automatic 3-in-1 Wash-filling-capping Water Filling Machine is used to produce bottled mineral water, purified water, flavored water, alcoholic beverage and other non-gas Liquid. This Machine can be applied to all kinds of plastic products such as PET, PE. Bottles size varies from 200ml-2000ml meanwhile few changeover is needed. This series of filling machine capacity varies from 3000BPH to 20000BPH.
This water filling machine is designed for the middle capacity and big factory. It features low water and low electricity consumption, small space occupation as well as easy operation. At the same time It improves the sanitary conditions and simplifies the maintenance compared with the last generation water filling machine. it can perfectly complete the function of automatic washing, filling and capping, which has been aproved by our clients as technical matured and quality product.
Characteristic
1. intelligent contact screen, human design, easy operation.
2. High speed filling valve, avoiding drop leaking, accurate filling quantity.
3. Program logic controller(PLC), easy for changing size or modifying parameters.
4. Pneumatic elements are all famous brand, stability and reliability.
5. Photo-electric sensing and pneumatic linking control, automatic protection for shortage of bottle.
8. Pneumatic executive control valve, high efficiency and safety.
9. Close positioning design, easy governing, suitable for packing of all sizes of bottles.
10. machine is designed according to requirements of buyer's.
Technical parameter
| Model | CGF24-24-8 |
| Production capacity(500ml)(b/h) | 8000-10000 |
| Filling precision | ≤±5MM(Liquid Level) |
| Polyester bottle standard(mm) | Bottle diameter40-80; |
| Height | Height:130-280 |
| Suitable cap shape | Plastic Screw Cap |
| Water pressure of Washing bottle(MPa) | 0.18 |
| Water consumption for Water bottle (kg/h) | 800 |
| Spraying position | 6 |
| Dripping bottle position | 3.5 |
| Gas source pressure(Mpa) | normal pressure |
| Gas consumption(m3/mm) | 0.4 |
| Total power | 6.57 |
| Total weight | 5500 |
| Dimension(L*W*H) | 2750*2180*2200 |
Conveyor
