Mineral Water Automatic Bottle Filling Machine Pure Water Bottling Plant With Pet Bottle 6.57kw

China Mineral Water Automatic Bottle Filling Machine Pure Water Bottling Plant With Pet Bottle 6.57kw supplier
Mineral Water Automatic Bottle Filling Machine Pure Water Bottling Plant With Pet Bottle 6.57kw supplier Mineral Water Automatic Bottle Filling Machine Pure Water Bottling Plant With Pet Bottle 6.57kw supplier Mineral Water Automatic Bottle Filling Machine Pure Water Bottling Plant With Pet Bottle 6.57kw supplier Mineral Water Automatic Bottle Filling Machine Pure Water Bottling Plant With Pet Bottle 6.57kw supplier Mineral Water Automatic Bottle Filling Machine Pure Water Bottling Plant With Pet Bottle 6.57kw supplier

Large Image :  Mineral Water Automatic Bottle Filling Machine Pure Water Bottling Plant With Pet Bottle 6.57kw

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Bottle Type: PET Plastic/Glass Bottle/Round/flat Bottle Filling Temperature: Room Temperature
Filling Material: Food Grade Stainless Steel 304 Weight: 5500kg
Weight: 5500kg Overall Dimension(L*W*H): 2750*2180*2200mm
Capacity: 8000-10000BPH(500ml) Warranty: One Year For Free
Processing Type: Water



Mineral Water Processing Machine Pure Water Bottling Plant With Pet Bottle 6.57kw



Brief introduction

It contains washing,filling,capping three units in one body.

This series of 3 in 1 filling machines are mainly used for the Non-Aerated drink such as mineral water, pure water, non-gas wine &drink etc, with optional capacity from 3000 to 2000BPH. The machine design is shorten the time for the drink material contact with outside, Increased the sanitation condition and throughout and economy benefit.



Features

1. This type machine is mainly used in filling&packing pure water,mineral water,baverage,wine,no contains gas liquid etc,it is suitable for PET bottle.

2. The PET bottle with screw capping way, it can be equipped with iron cap,aluminum cap and plastic cap

3. The machine contains Flushing, Filling and Capping three functions together in one.

4. It runs automatic by advanced MITSUBISHI PLC controller with reliable HMI touch screem.

5. The conveyor runs by frequency changer, it synchronous with the host inverter makes bottle feeding more stable and reliable.

6. Reliable photoelectric detection, high-efficiency fully automatic production,simple operation.

7. The washing, filling and capping will be finished just by one machine. It is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.

8. Advanced programmable PLC is equipped to control the main machine. Main electronic components are all from famous international enterprises. All spare parts that may touch with water are made of high-quality stainless steel 304/316



Technical parameter

Model CGF24-24-8
Production capacity(500ml)(b/h) 8000-10000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80;
Height Height:130-280
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa) 0.18
Water consumption for Water bottle (kg/h) 800
Spraying position 6
Dripping bottle position 3.5
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.4
Total power 6.57
Total weight 5500
Dimension(L*W*H) 2750*2180*2200


Please kindly send us your requirements

1. bottle volume (Our machines are suitable for 0.2~2.0L Bottle)

2. bottle material (machines for glass bottle and plastic bottle are different)

3. how many bottles (based on 500ml bottle) per hour you want to produce?

4. do you need this water filling machines only or whole water production line ( A to Z)



Air conveyor

Mineral Water Automatic Bottle Filling Machine Pure Water Bottling Plant With Pet Bottle 6.57kw

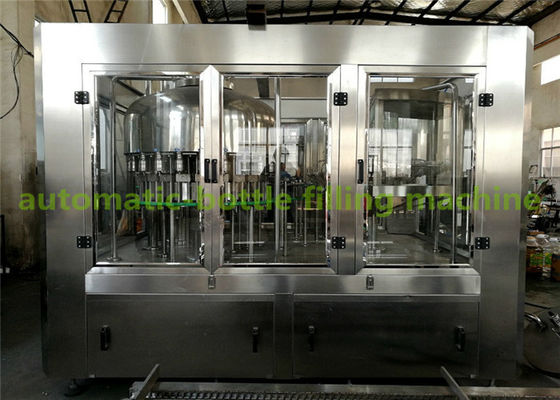

Inside look(rinsing,filling,capping)

Mineral Water Automatic Bottle Filling Machine Pure Water Bottling Plant With Pet Bottle 6.57kw

Electric box

Mineral Water Automatic Bottle Filling Machine Pure Water Bottling Plant With Pet Bottle 6.57kw

If any requirements you need from me,please feel free to



contact me!
