Automatic Bottled Water Filling And Sealing Machine, Mineral Water Production Line

Automatic Bottled Water Filling And Sealing Machine, Mineral Water Production Line
Automatic Bottled Water Filling And Sealing Machine, Mineral Water Production Line Automatic Bottled Water Filling And Sealing Machine, Mineral Water Production Line Automatic Bottled Water Filling And Sealing Machine, Mineral Water Production Line Automatic Bottled Water Filling And Sealing Machine, Mineral Water Production Line

Large Image :  Automatic Bottled Water Filling And Sealing Machine, Mineral Water Production Line

Product Details:
Place of Origin: China, mainland
Brand Name: JINYATE
Certification: ISO CE
Model Number: CGF32-32-10
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: pls inquiry
Packaging Details: standard wooden cases
Delivery Time: 35 working days
Supply Ability: 100 sets per year
Detailed Product Description
Pruduct Name: Water Bottling Plant Function: Rinser Filler Capper
Filling Material: Water, Juice, Still Drink Suitable Bottle: PET Plastic Bottle
Suitable Cap: Sports Cap Capacity: 12000-14000BPH(500ml)
Voltage: 380V 50hz 3Phases Warranty: 1 Year
High Light:

automatic bottling machine

,

automatic bottle filling system

Bottled Water Filling And Sealing Machine, Mineral Water Production Line



Introduction

This series of mineral Water Filling Machine are applied to the production of pure water, mineral water, it integrates bottle washing, filling and capping into one body. It fills PET bottle and seal sports caps, capacity is about 14000BPH(500ml).  It is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.



Main Feature

  1. Only by changing the star-wheel, can realize to fill the changed bottle shape.
  2. The machine adopts perfect overload protective device can ensure the operator and machine safe.
  3. This machine adopts adjustable frequency converter.
  4. The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
  5. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
  6. The electric components and pneumatic components are all introduced from world famous brand products.

Origin of Main Parts

Item Part Name Brand name
1 Frequency converters MITSUBISHI
2 PLC MITSUBISHI
3 Touch screen MITSUBISHI
4 Electricity panel Well organized
5 Photoelectricity Control parts OMRON
6 Pump CHINA



Main Technical parameters



Model CGF 10-10-3 CGF 18-18-6 CGF 24-24-8 CGF 32-32-10 CGF 40-40-12 CGF 50-50-15
Rinsing nozzles 10 18 24 32 40 50
Filling nozzles 10 18 24 32 40 50
Capping nozzles 3 6 8 10 12 15
Output(@500ml) 4000BPH 6000BPH 8000BPH 14000BPH 18000BPH 24000BPH
Applicable bottle size Diameter=50~108mm, H=170~340mm, 330~2250ml
Pressure of air source 0.7MPa 0.7MPa 0.7MPa 0.7MPa 0.7MPa 0.7MPa
Air Consumption 0.25M3/min 0.8 0.8 0.8 0.8 1
Pressure of spraying water 0.2-0.25MPa
Consumption of rinsing water 1T/H 1.2T/H 1.2T/H 2T/H 2.2T/H 2.5T/H
Pressure of filling 0.2-0.3MPa
Power consumption 2.5kw 3.5kw 4kw 5.5kw 6.5kw 8kw
Machine body SS304
Machine size(L*W*H,mm) 2100*1800*2400 2300*2200*2400 3000*2200*2800 4000*2600*2800 4700*2900*2800 5100*4800*3000
Machine weight(kg) 2500 3000 4000 5000 6000 7500
PLC Japan Mitsubishi



Machine Pictures

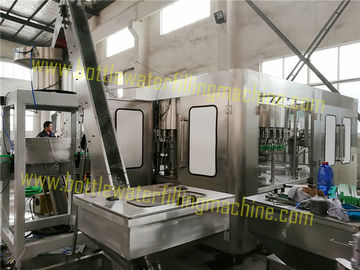

rinser

Automatic Bottled Water Filling And Sealing Machine, Mineral Water Production Line 0

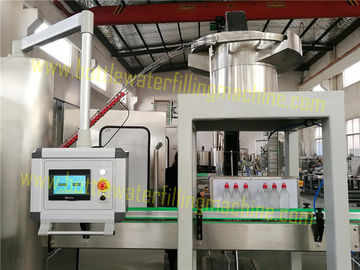

filler

Automatic Bottled Water Filling And Sealing Machine, Mineral Water Production Line 1

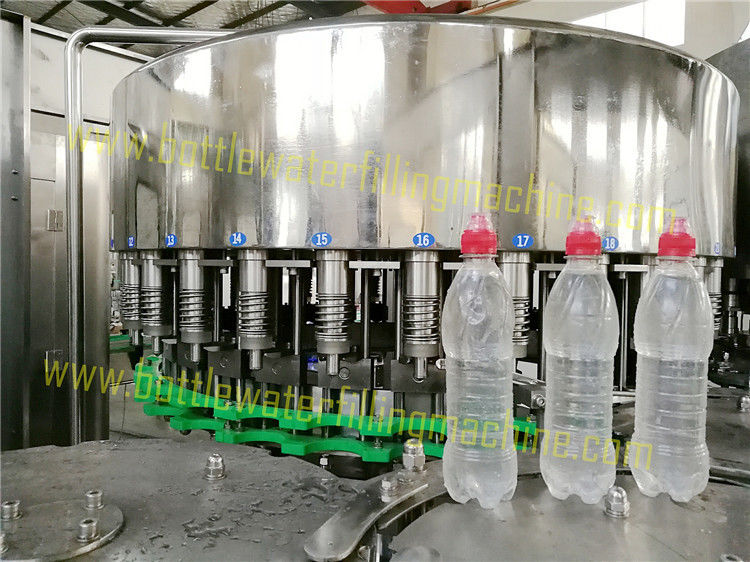

capper

Automatic Bottled Water Filling And Sealing Machine, Mineral Water Production Line 2



If your inquiry, pls tell me your capacity and other request.. ...
