| Automatic Grade: | Fully-automatic | Power: | 8.07kw |
|---|---|---|---|
| Control: | PLC+Touch Screen | Filling Pressure: | Balanced Pressure Filling |
| Weight: | 5000kg | Capacity: | 8000-1000BPH(500ml ) |
| Voltage: | 380V 50Hz | Application: | Beverage, Commodity, Food |
| High Light: | soda bottling machine,carbonated beverage bottling equipment |
||
Details
Washer Station
All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
304 stainless steel washing pumps
Filler Station:
The filling station using all metal (not plastic) 304 stainless steel contact parts gives consistent accurate, high precision filling nozzle together with vacuum pump regurgitant system, to ensure the high filling precision, ensure same filling level
Filling temperature is adjustable.
Centre 304L stainless steel filling nozzle used which are designed for maximum flow rate and minimum bottle distortion during filling.
All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
Capper station:
Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304stainless steel construction
No bottle no capping,
Automatic stop when lack of caps
Description
DGCF seires soft drink filling machine,integrating with washing,filling and capping part,it realizes full automation in the whole process,suitable for polyester bottle and plastic bottle filling of carbonated beverage,like:soda,cola and so on.The bottle types applicable for various parts are easily,conveniently and rapidly adjustable.It adopts new pressure filling.Compared with the machines of the same specification,the capacity of this machine is larger.
Advantage
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, Siemens.
Technique parameter
| Model: | DCGF16-12-6 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | DCGF40-40-12 | ||
| Production Capacity(500ml)(B/H) | 2000-4000 | 4000-6000 | 6000-8000 | 8000-10000 | 10000-12000 | ||
| Bottle standard (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm | ||||||
| Suitable Cap shape |
Plastic srew cap
|
||||||
| Filling precision |
≤±5mm
|
||||||
| Filling pressure(Mpa) | <0.4 | ||||||
| Water pressure of Washing bottle(Mpa) | 0.18-0.25 | ||||||
| Water consumption for water bottle(kg/h) | 1300 | 2000 | 2500 | 3000 | 3000 | ||
| Spraying Position | 5 | 5 | 6 | 12 | 12 | ||
| Dripping Bottle Position | 2.5 | 3.0 | 3.5 | 7 | 7 | ||
| Gas source Pressure(Mpa) | 0.4 | ||||||
| Gas consumption(m³/min) | 0.3 | 0.4 | 0.4 | 0.5 | 0.5 | ||
| Total power(kw) | 5.03 | 5.03 | 6.57 | 8.07 | 8.07 | ||
| Overall size:(mm) | 2100*1500*2200 | 2450*1800*2200 | 2750*2180*2200 | 3600*2200*2600 | 3600*2200*2600 | ||
| Weight: (kg) | 2000 | 3000 | 4000 | 5000 |
5000 |
||

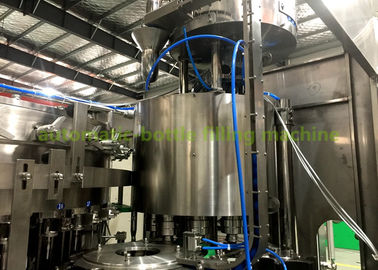

Photoview
