SUS304 SS Water Purification Machine Strong Adsorption Capacity Of Activated Carbon

SUS304 SS Water Purification Machine Strong Adsorption Capacity Of Activated Carbon
SUS304 SS Water Purification Machine Strong Adsorption Capacity Of Activated Carbon SUS304 SS Water Purification Machine Strong Adsorption Capacity Of Activated Carbon SUS304 SS Water Purification Machine Strong Adsorption Capacity Of Activated Carbon SUS304 SS Water Purification Machine Strong Adsorption Capacity Of Activated Carbon

Large Image :  SUS304 SS Water Purification Machine Strong Adsorption Capacity Of Activated Carbon

Product Details:
Place of Origin: China(mainland)
Brand Name: JINYATE
Certification: CE SGS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: standard wooden cases
Delivery Time: 35 working days
Detailed Product Description
Product Name: Water Treatment Filter Application: Drinking Water
Material: SUS304 Component: Multi Medium Filter, Active Carbon Filter, Sodium Ion Filter
Condition: New Warranty: 1 Year
High Light:

liquid bottle filling machine

,

automatic bottle filling system

Water Purification Machines, Water Treatment System Pure Water​



Technology instruction:

First stage pretreatment.(Sand filter)

The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment,

manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the

above 20UM of substances hazardous to health. The effluent turbidity is less than 0.5NTU, CODMN less

than 1.5mg / L, iron content of less than 0.05mg / L, SDI less than or equal to 5. Water filter is a kind of

"physical - chemical" process, the water through granular materials when isolated filter water impurities

and colloidal suspensions. Filter is an effective water purification and treatment of the main process in the

preparation of pure water is an indispensable process.


Second stage pretreatment (Carbon filter)

Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and

biological organisms, reducing the residual value of water and pesticide pollution and other harmful

pollutants. The structure of activated carbon filters and quartz sand filters, the difference is placed inside

the strong adsorption capacity of activated carbon for removal by the quartz sand filter without the filter

out organic material, adsorption of residual chlorine in the water, using water more than less than or equal

to chlorine 0.1ML/M3, SDI less than or equal to 4, are strong oxidants chlorine, there are various types of

membrane damage, in particular, reverse osmosis membranes are more sensitive to chlorine. In addition,

the activation process, the surface of activated carbon to form non-crystalline parts of some oxygen-

containing functional groups, these functional groups can have a chemical adsorption of activated carbon

catalytic oxidation of bad news, to restore the performance, can effectively remove a number of metal ions

in water.


Third stage pretreatment (Resin softener)

Cationic resin used for water softening, primarily to remove hardness of water. The hardness of water is a

major calcium (Ca2 +), magnesium (Mg2 +) ion composition, when containing the raw water hardness ions

through the resin layer, the water of the Ca2 +, Mg2 + was exchanged resin adsorption, and other objects

at the same time the quality of the release of sodium Na + ions flow from the softener in the water is

removed from the softened water hardness ions. So as to effectively prevent the reverse osmosis

membrane fouling.System can automatically recoil, and so is red.



Specification :


Model:RO-1000I(12000L/H)
Capacity of pure water:30,000 L/H 25
General power:36.5KW
Electrical power:AC 380V 68A 50Hz
RO membranes:CPA2 8040 25 items
Multi-phases pump:CR45-8(Groundfos Brand)
Beforehand filter:1800×2400 2 items
Ion exchange tube:1000×1800 2 items
PP sediment membranes filter tube:500×1000×2.0 1 items
Booster pump:CR45-2
Active carbon filter:1600kg
Quartz sand filter:5000kg
Cation:1700L
Functions of the machine:RO membranes auto wash and manual wash
RO membranes manual wash with medicine
Pure water high water level auto stop,low water level auto start
Multi-phases pump protected without water Protected when no power,poor power,short circuit,larger electric current,creepage of electricity
Out size of main machine:
Out size of beforehand filter:

6000×1400×1900mm
7000×1900

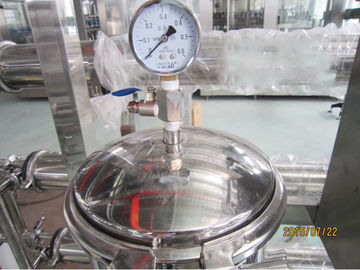

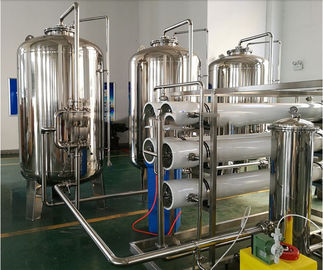

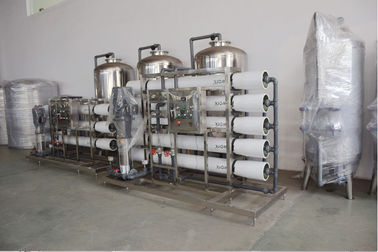

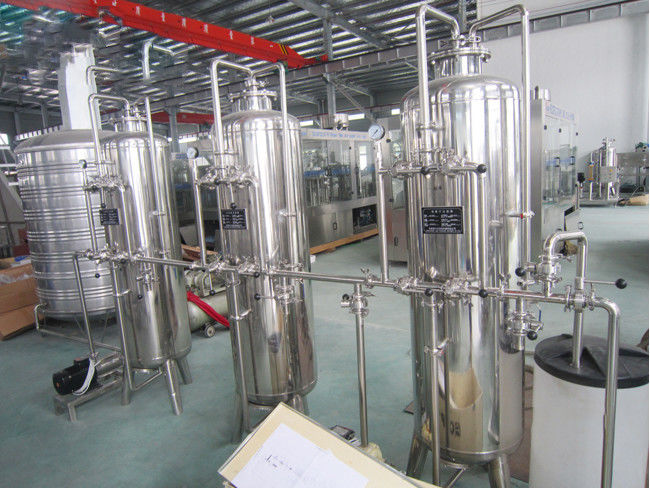

product pictures

SUS304 SS Water Purification Machine Strong Adsorption Capacity Of Activated Carbon 0

SUS304 SS Water Purification Machine Strong Adsorption Capacity Of Activated Carbon 1
SUS304 SS Water Purification Machine Strong Adsorption Capacity Of Activated Carbon 2

System introduction:

Raw water -- raw water pump -- Quartz sand filter -- Active Carbon filter -- Water softener -- PP sediment filter -- RO system -- pure water
