Automatic Water Bottle Filling Machine 3L - 7L Volume Mineral Bottling Plant

China Automatic Water Bottle Filling Machine 3L - 7L Volume Mineral Bottling Plant supplier
Automatic Water Bottle Filling Machine 3L - 7L Volume Mineral Bottling Plant supplier Automatic Water Bottle Filling Machine 3L - 7L Volume Mineral Bottling Plant supplier Automatic Water Bottle Filling Machine 3L - 7L Volume Mineral Bottling Plant supplier Automatic Water Bottle Filling Machine 3L - 7L Volume Mineral Bottling Plant supplier Automatic Water Bottle Filling Machine 3L - 7L Volume Mineral Bottling Plant supplier

Large Image :  Automatic Water Bottle Filling Machine 3L - 7L Volume Mineral Bottling Plant

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF12-12-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Bottle Type: PET Plastic Bottle Warranty: One Year For Free
Function: Bottle Washing Filling Capping Color: Silver Gray
Weight: 5000kg Overall Dimension(L*W*H): 3500*2300*2800mm
Capacity: 1500BPH(based On 5L) Bottle Volume: 3L-7L





Automatic 3L-7L Bottle Pure Water Filling Machine / Mineral Bottling







Plant







Product Description



1. The automatic 3-7L water bottle filling machine is a full-automatic,It intergrates bottle rinsing, bfilling



and capping in one unit.



2. It is used for filling natural spring water,pure water, mineral water and drinking water.



3. The line has features of unique design,new style, complete functions,multi-purpose, convenient in



operation, beautiful construction, high automatic.



4. It is the best bottling equipment in China.





Feature



1. All the water filling machine part which contact with liquid is high quality stainless steel 304. The relative



fittings are from international famous brand.



2. This machine is comprised of rinsing, filling and capping system.



    Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external



    spraying make bottles be cleaned completely.



    Filling: gravity filling with holding bottle neck; the special backflow type of the filling valve can avoid



    leakage after filling and also control liquid level accurately.



    Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the



    capping performance the best.



3. This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck



size is the same, only the output star wheel needs to be changed if bottles are different. It improves the



efficiency a lot.



4. We adopted advanced normal pressure gravity for filling, the filling effect are fast, steady, quasi and



equipped with the material recirculating system, realize backflow independently, not contact with material



and avoiding second pollution and oxidation.



5. The whole production line adopts human-machine interfaces, touch-screen, PLC computer controller



and other advanced technologies.



6. With automatic inspect system of filling temperature automatic, caps supplying material high-



temperature alarm, low-temperature shutdown and automatic retum, no bottle, no vorer, wait when lack



of bottles, lacking caps shutdown and so on, realize no bottle, no filling.





Technical parameter



Model
CGF9-9-4
CGF12-12-4
CGF16-16-4
CGF20-20-6
Heads of washing,filling,capping
9-9-4
12-12-4
16-16-4
20-20-6
Production capacity(bottle/hour)
500-1000
1000-1500
1500-2000
2500-3000
Suitable bottle diameter(mm)
Φ=110-220 H=170-380(2000-6000ml)
Spraying pressure(kg/ m2)
2-3
Motor power(kw)
(Main motor)2.2kw
(Main motor)2.2kw
(Main motor)3kw
(Main motor)5.5kw
Overall dimension(mm)
2400x1650x2500
2600x1920x2550
3100x2300x2800
3800x2800x2900
Weight(kg)
2500
3500
4500
6500

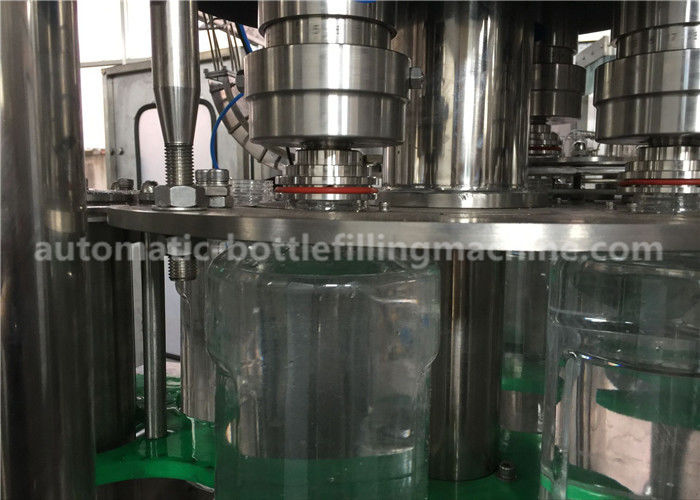

Filling part



Automatic Water Bottle Filling Machine 3L - 7L Volume Mineral Bottling Plant



Rinsing part



Automatic Water Bottle Filling Machine 3L - 7L Volume Mineral Bottling Plant



Inside apperance





Automatic Water Bottle Filling Machine 3L - 7L Volume Mineral Bottling Plant



This is Jane,If you want to see the video of how is it working,please leave



message to me.
