Automatic Pineapple Juice Bottle Filling Machine 6250*3050*2400mm Processing Plant

Automatic Pineapple Juice Bottle Filling Machine 6250*3050*2400mm Processing Plant
Automatic Pineapple Juice Bottle Filling Machine 6250*3050*2400mm Processing Plant

Large Image :  Automatic Pineapple Juice Bottle Filling Machine 6250*3050*2400mm Processing Plant

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF40-40-40-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Capacity: 16000bph Machine Material: Stainless Steel 304
Overall Dimension: 6250*3050*2400mm Weight: 5000kg
After-sales Service Provided: Engineers Available To Service Machinery Overseas Power: 9.5KW
Filling Temperature: Normal Temperature Warranty: 1 Year
High Light:

automatic bottling machine

,

liquid bottle filling machine



Automatic Pineapple Juice Processing Plant / Bottle Juice Filling











Machine







Description



1) The rotary wheel is a fully AISI304 stainless steel welded structure.



2) The machine applies unique overturning bottle clamp, which is an innovation of our company. This



bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber



gripper block of a traditional bottle clamp. Made of AISI304 stainless steel, this bottle clamp is hygienic



and durable.



3) The high efficiency atomizing spray nozzle installed on bottle clamp incorporating technology from



Spaying Systems Co. Ltd., is capable of cleaning any part of bottle inner wall, and also saves rinsing



water



4) The filler is designed and manufactured with application of Italy technology, providing hardware



guarantee for securing product quality and reducing loss.



5) Rotary wheel are fully made of stainless steel AISI304.



6) Filling valves are designed and manufactured with German technology, made of AISI316L, featuring



high filling accuracy and high filling speed.



7) Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated



by air cylinder. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free



bearing.



8) The capper is most precise part in 3 in 1 filling machine, because the quality of machine ism important



to running credibility and product quality.



9) The cover track has the device to prevent the reversal cover from passing and pick out the reversal



cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on



the track, by which it can avoid bottle without cover effectively.



10) It also has the bottle checkup switch. Together with cylinder on the joint of the cover track and cover



lift, they can control the cover flow and stop it in case no bottle to reduce the quantity of cover.





Technique parameters



Model RCGF18-18-18-6 RCGF24-24-24-8 RCGF32-32-32-10 RCGF40-40-40-12
Production capacity(500ml)(b/h) 4000-6000 8000-10000 12000-15000 16000-20000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm)



Bottle diameter:Φ50-Φ100;Height:150-320



Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa)

0.18

Water consumption for Water bottle 2000kg/h 3000kg/h 4000kg/h 5000kg/h
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.3 0.4 0.5 0.6
Total power(kw) 5.03 6.57 8.63 9.5
Total weight(kg) 3500 5500 8000 9000
Dimension(L*W*H)mm 2450×1800×2200 2750×2180×2200 3500×2200×2250 6250*3050*2400




We provide this RCGF40-40-40-12 juice filling line for our Congo's customer,these pictures are



photographed by our engineers when they installed the machines in Congo



  We can also provide you with video





Conveyor,bottle warming cooling machine,bottle inverse sterilizer machine



Automatic Pineapple Juice Bottle Filling Machine 6250*3050*2400mm Processing Plant 0

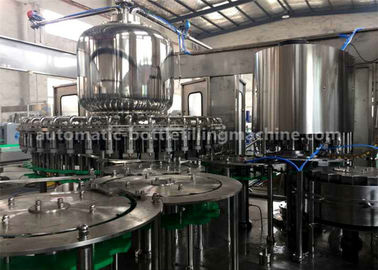

Filling capping part



Automatic Pineapple Juice Bottle Filling Machine 6250*3050*2400mm Processing Plant 1

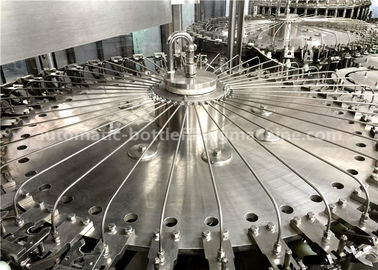

Inside look



Automatic Pineapple Juice Bottle Filling Machine 6250*3050*2400mm Processing Plant 2
