4 In 1 Liquid Bottle Filling Machine , Purified Water Filling Machines And Equipment

4 In 1 Liquid Bottle Filling Machine , Purified Water Filling Machines And Equipment
4 In 1 Liquid Bottle Filling Machine , Purified Water Filling Machines And Equipment

Large Image :  4 In 1 Liquid Bottle Filling Machine , Purified Water Filling Machines And Equipment

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF40-40-40-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Capacity: 20000bph Machine Material: Stainless Steel 304
Overall Dimension: 6250*3050*2400mm Weight: 5000kg
After-sales Service Provided: Engineers Available To Service Machinery Overseas Power: 9.5KW
Filling Temperature: Normal Temperature Filling Accuracy: ≤± 5mm (Liquid Level)
High Light:

liquid bottle filling machine

,

automatic bottle filling system



4-In-1 Automatic Bottle Purified Water Filling Machine / Bottling Line













With ISO







Description



1. This water filling machine is a unique design combining the four machines of bottle sterilizing,



washing, filling and capping in one to decrease main power, to save space and to diminish the air



pollution among the three machines.



2. The machine is easy to change the shape of bottles, which can be done by changing thethumb wheel



without adjusting the height of the machine.



3. The filling water machine case and the parts contacting with the materials are made ofstainless steel



which ensures the good external look and easy washing.



4. Each water filling machine element tha contacts with the liquid is made of high quality Stainless steel



304,if needed,Stainless steel is also available.



5. The water filling machine adopts bottle neck holding transmission technology to realize fully automatic



rinsing, filling and capping.



6. Most elements of the electrical system use famous international brand, for example,Mitsubish,Omron



brand .



7. The water filling machine obtain the advantages of good abrasive resistance,high stability,low failure



rate, etc. The quality of the equipments reaches the advanced level of the world.



8. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.



9. Easy to operate, save the cost for workers.





Technique parameters



Model CGF18-18-18-6 CGF24-24-24-8 CGF32-32-32-10 CGF40-40-40-12
Production capacity(500ml)(b/h) 4000-6000 8000-10000 12000-15000 16000-20000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm)



Bottle diameter:Φ50-Φ100;Height:150-320



Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa)

0.18

Water consumption for Water bottle 2000kg/h 3000kg/h 4000kg/h 5000kg/h
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.3 0.4 0.5 0.6
Total power(kw) 5.03 6.57 8.63 9.5
Total weight(kg) 3500 5500 8000 9000
Dimension(L*W*H)mm 2450×1800×2200 2750×2180×2200 3500×2200×2250 6250*3050*2400




We provide this CGF40-40-40-12 Water filling line for our Congo's customer,these pictures are



photographed by our engineers when they installed the machines in Congo



  We can also provide you with video

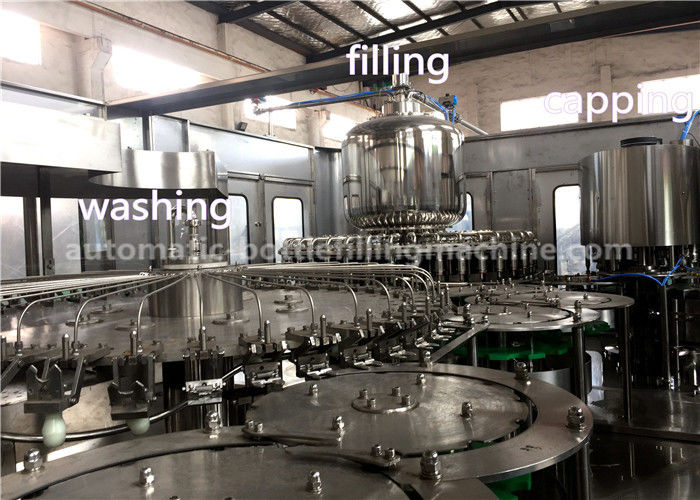

40 sterilizing and rinsing heads



4 In 1 Liquid Bottle Filling Machine , Purified Water Filling Machines And Equipment 0

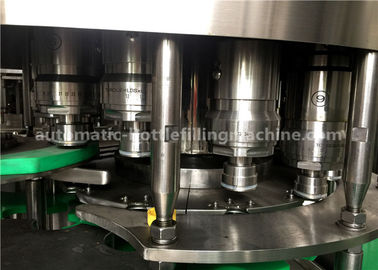

Filling part



4 In 1 Liquid Bottle Filling Machine , Purified Water Filling Machines And Equipment 1

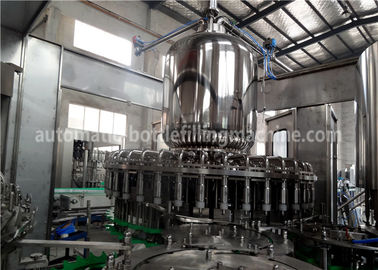

Overall apperance(figure at the crime scene of Congo)



4 In 1 Liquid Bottle Filling Machine , Purified Water Filling Machines And Equipment 2
