SUS304 / 316 Milk Bottling Equipment , Milk Filling And Sealing Machine High Production Speed

SUS304 / 316 Milk Bottling Equipment , Milk Filling And Sealing Machine High Production Speed
SUS304 / 316 Milk Bottling Equipment , Milk Filling And Sealing Machine High Production Speed SUS304 / 316 Milk Bottling Equipment , Milk Filling And Sealing Machine High Production Speed SUS304 / 316 Milk Bottling Equipment , Milk Filling And Sealing Machine High Production Speed SUS304 / 316 Milk Bottling Equipment , Milk Filling And Sealing Machine High Production Speed

Large Image :  SUS304 / 316 Milk Bottling Equipment , Milk Filling And Sealing Machine High Production Speed

Product Details:
Place of Origin: China(mainland)
Brand Name: JINYATE
Certification: CE SGS
Model Number: MFS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: standard wooden cases
Delivery Time: 35 working days
Detailed Product Description
Product Name: Milk Filling Machine Function: Filling Capping
Suitable Bottle: Glass Bottle Suitable Cap: Plastic Cap
Filling Heads: 18 Capping Heads: 6
Material: SUS304/316 Warranty: 1 Year
High Light:

liquid bottle filling machine

,

automatic bottle filling system



Automatic Glass Bottle Liquid Cow Milk Filling Sealing



Machinery Cost





product description



This machine is a monobloc one, it integrates filling and capping two funtions in one machine. It's



used tofill glass bottle cow milk, soybean milk or other non-gas liquid. It has 18 filling heads and 6



capping heads, can reach 6000 bottles per hour.



technical parameter



1. Model: MFS18-6



2. Filling Heads: 18



3. Sealing Heads:6



4. Filling capacity: 250ml -1000ml



5. Production speed: 6000bottles/H(500ml)



6. Bottle height: 110-340mm



7. Bottle diameter: 38-120mm



8. Main motor power: 5.03Kw



9. Power supply: 3N-50Hz, 380V/220V



10. Air consumption: 1.6m3/Min



11. Overall dimension: 2450×1800×2200mm



12. Weight: 1500Kg

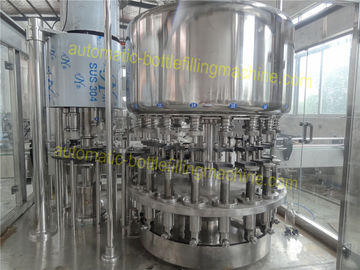

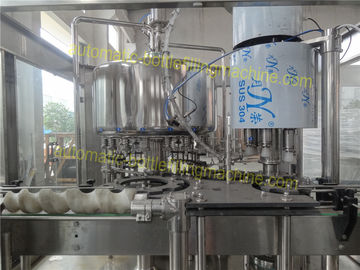

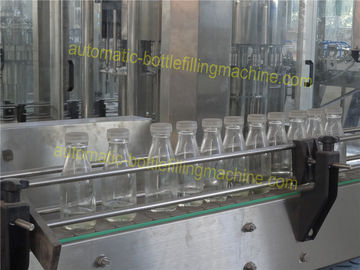

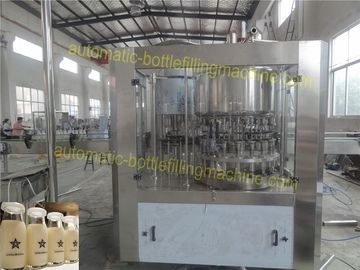

product pictures



SUS304 / 316 Milk Bottling Equipment , Milk Filling And Sealing Machine High Production Speed 0

SUS304 / 316 Milk Bottling Equipment , Milk Filling And Sealing Machine High Production Speed 1

SUS304 / 316 Milk Bottling Equipment , Milk Filling And Sealing Machine High Production Speed 2



Besides this 6000B/H machine, we also have other capacity



Model

Washing

heads

Filling

heads

Capping

heads

Capacity(b/h)

500ml

Motor power

(KW)

Overall dimension

(mm)

CFG14-12-5 14 12 5 1000bph 1.5KW 2100x1400x2500
CFG18-18-6 18 18 6 2000bph 2.2KW 2460x1720x2650
CFG24-24-8 24 24 8 3000bph 3KW 3100x2100x2650
CFG32-32-10 32 32 10 6000bph 4KW 3500x2500x2650
CFG40-40-10 40 40 10 8000bph 7.5KW 4600x1800x2650
CFG48-48-12 48 48 12 9000bph 9.5KW 5200x4500x3400
CFG60-60-15 60 60 15 12000bph 12KW 6500x4500x3400
