5L Plastic Bottle Fruit Juice Filling Machine 220V / 380V For Mango Pulp Juice

China 5L Plastic Bottle Fruit Juice Filling Machine 220V / 380V For Mango Pulp Juice supplier
5L Plastic Bottle Fruit Juice Filling Machine 220V / 380V For Mango Pulp Juice supplier 5L Plastic Bottle Fruit Juice Filling Machine 220V / 380V For Mango Pulp Juice supplier 5L Plastic Bottle Fruit Juice Filling Machine 220V / 380V For Mango Pulp Juice supplier 5L Plastic Bottle Fruit Juice Filling Machine 220V / 380V For Mango Pulp Juice supplier 5L Plastic Bottle Fruit Juice Filling Machine 220V / 380V For Mango Pulp Juice supplier

Large Image :  5L Plastic Bottle Fruit Juice Filling Machine 220V / 380V For Mango Pulp Juice

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RGF9-9-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Color: Silver Gray Weight: 4500kg
Overall Dimension(L*W*H): 3100*2300*2800mm Packaging Type: Bottles,Cartons
Sealing Way: Plastic Screw Cap Automatic Grade: Fully-automatic
Material: Food Grade Stainless Steel Condition: New New





5L Plastic Bottle Mango Pulp Juice Filling / Making Capping Machine





Voltage 220V / 380V





Introduction



This series 5L bottle production line collected washing,filling, capping together, it is suitable for kinds of



beverage production, like juice, tea production, simultaneously only change some spare parts, then it can



be used in the pure water, automatic mineral water production line. We adopted advanced normal



pressure gravity for filling,the filling effect are fast, steady, quasi and equipped with the material



recirculating system, realize backflow independently, not contact with material and avoiding second



pollution and oxidation. This equipment can satisfy with filling request of lower than 95℃ hot filling, filling



valves and pipes material are according to sanitation standard,at the same time, there CIP self-cleaning



interface there is RO water rinsing device before capping ensure bottle mouth is clean. we adopt magnetic



torque capping head. labeling machine is designed by our self with stainless steel frame. The whole



production line adopts human-machine interfaces, touch-screen, PLC computer controller and other



advanced technologies. With automatic inspect system of filling temperature automatic, caps supplying



material high-temperature alarm, low-temperature shutdown and automatic return, no bottle, no cap



feeding, wait when lack of bottles, lacking caps shutdown and so on. realize no bottle,no filling.





Features



1. Air Conveyor connects with bottle-in star wheels. Bottle neck holding transferred.



2. Clamp transferring technology varied from bottle types.



3. With little abrasion. Stable Transferring. Easy to change bottles.



4. With ring type pressure bearing hydraulic cylinder.



5. With high filling speed and exact liquid level.



6. The bottle-out star wheel is of screw down shape. No need to adjust transferring chain's height to



different bottles.



7. This liquid filling machine is easy to operate and maintain.



8. PLC and transducers and other main electric parts are of world famous brands, such as OMRON,



MITSUBISHI etc





Technical parameters:



Model
RGF9-9-4
RGF12-12-4
RGF16-16-4
Heads of washing,filling,capping
9-9-4
12-12-4
16-16-4
Production capacity(bottle/hour)
500-1000
1000-1200
1500-2000
Suitable bottle diameter(mm)
Φ=110-220 H=170-380(2000-6000ml)
Spraying pressure(kg/ m2)
2-3
Motor power(kw)
(Main motor)2.2kw
(Main motor)2.2kw
(Main motor)3kw
Overall dimension(mm)
2400x1650x2500
2600x1920x2550
3100x2300x2800
Weight(kg)
2500
3500
4500



Final product



5L Plastic Bottle Fruit Juice Filling Machine 220V / 380V For Mango Pulp Juice

Rinsing part



5L Plastic Bottle Fruit Juice Filling Machine 220V / 380V For Mango Pulp Juice

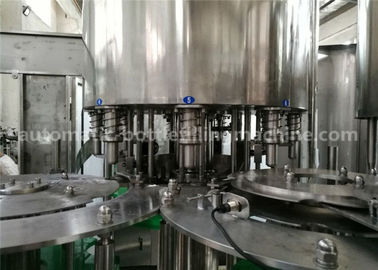

Filling and capping part



5L Plastic Bottle Fruit Juice Filling Machine 220V / 380V For Mango Pulp Juice
