Mini Mineral Water Automatic Bottle Filling Machine Magnetic Torque System For Smooth Capping

Mini Mineral Water Automatic Bottle Filling Machine Magnetic Torque System For Smooth Capping
Mini Mineral Water Automatic Bottle Filling Machine Magnetic Torque System For Smooth Capping Mini Mineral Water Automatic Bottle Filling Machine Magnetic Torque System For Smooth Capping Mini Mineral Water Automatic Bottle Filling Machine Magnetic Torque System For Smooth Capping Mini Mineral Water Automatic Bottle Filling Machine Magnetic Torque System For Smooth Capping

Large Image :  Mini Mineral Water Automatic Bottle Filling Machine Magnetic Torque System For Smooth Capping

Product Details:
Place of Origin: China(mainland)
Brand Name: JINYATE
Certification: CE SGS
Model Number: CGF8-8-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: standard wooden cases
Delivery Time: 35 working days
Supply Ability: 99 sets per year
Detailed Product Description
Product Name: Water Bottling Machine Function: Rising Filling Capping
Model: CGF8-8-3 Capacity: 3000B/H (for 500ml)
Machint Type: Monobloc Rotary Machine Suitable Bottle: PET Bottle
Bottle Size: 250-1000ml Filling Material: Mineral Water, Purified Water
High Light:

liquid bottle filling machine

,

automatic bottle filling system



Mini Mineral Water Plant, Automatic Small Production Filling



Machinery Price







technical parameter



Model: CGF8-8-3
Capacity:500ml(b/h) 3000
Suitable Bottle Height(mm) 130-280
Suitable Bottle Body Diameter(mm) Φ40-φ80
Suitable Cap Shape Plastic Screw Cap
Filling Precision ≤±5mm(Liquid Level)
Power: (KW) 3
Filling Temperature: Room Temperature
Water Pressure of Washing Bottle(Mpa) 0.18
Water Consumption for Washing Bottle(kg/hr) 800
Gas Source Pressure(Mpa) Normal Pressure
Gas Consumption(m 3 /min) 0.3
Size L×W×H (mm) 1900x1400x2350
Total Weight:(kg) 1500
Power Supply 380V/50HZ





product pictures

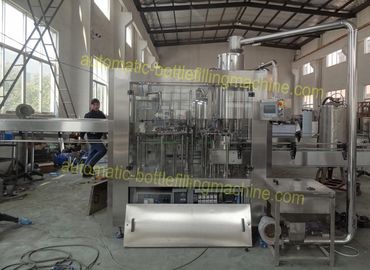

This is the smallest capacity monobloc water machine, it has 8 rising heads, 8 filling



heads and 3 capping heads, the max capacity can reach 3000 bottles per hour ( for



500ml),it is suitable for PET bottle, mineral water, purified water, still water, flavor water



or other non-gas liquid.

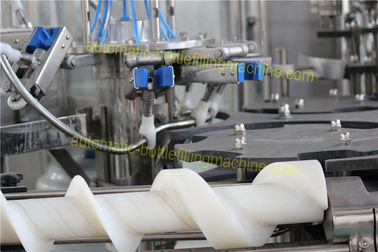

Mini Mineral Water Automatic Bottle Filling Machine Magnetic Torque System For Smooth Capping 0

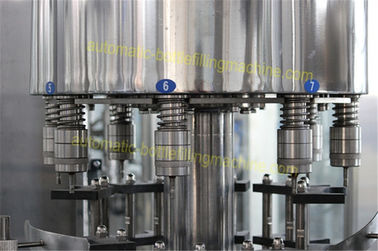

filling



The internationally accepted and approved VENT PIPE filling principle ensures accurate level filling



without spillage. The filling accuracy is ± 5 ml. The fill tank level is regulated automatically by a PLC



controlled electronic probe which reduces the machine speed in the vent of disrupted input product water



supply. The machine speed is then restored to normal once the water supply is replenished.

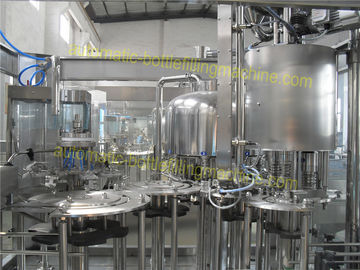

Mini Mineral Water Automatic Bottle Filling Machine Magnetic Torque System For Smooth Capping 1



eletrical system



Mini Mineral Water Automatic Bottle Filling Machine Magnetic Torque System For Smooth Capping 2



Silent Features of Our Machines



- All the electrical / electronic components are of Multi National renowned companies like Mitsubishi,



Schneider, Atonics



- Heavy Duty and Long life Motors are Used



- Filling tank with level sensor to control water level automatically



- Magnetic Torque system for smooth capping



- High speed & precision filling valves to control liquid level accurately and ensure accurate filling



- All Contact Parts made of SS 304 / SS 316 material
