Small Capacity Fully Automatic Bottle Filling Machines 3 In 1 For Still / Flavor Water CGF8-8-3

Certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
Customer Reviews
Your machine quality is very good and technical team very professional, hope our products sell well!

—— Shiferaw Habte

I have worked with them for five years, their juice and carbonated machine help me spread my busniess acorss Africa, this year we place an 24000BPH carbonated line, looking forward to the machine installation in our factory early.

—— Umesh

I'm Online Chat Now

Small Capacity Fully Automatic Bottle Filling Machines 3 In 1 For Still / Flavor Water CGF8-8-3

Small Capacity Fully Automatic Bottle Filling Machines 3 In 1 For Still / Flavor Water CGF8-8-3
Small Capacity Fully Automatic Bottle Filling Machines 3 In 1 For Still / Flavor Water CGF8-8-3 Small Capacity Fully Automatic Bottle Filling Machines 3 In 1 For Still / Flavor Water CGF8-8-3 Small Capacity Fully Automatic Bottle Filling Machines 3 In 1 For Still / Flavor Water CGF8-8-3 Small Capacity Fully Automatic Bottle Filling Machines 3 In 1 For Still / Flavor Water CGF8-8-3

Large Image :  Small Capacity Fully Automatic Bottle Filling Machines 3 In 1 For Still / Flavor Water CGF8-8-3

Product Details:
Place of Origin: China(mainland)
Brand Name: JINYATE
Certification: CE SGS
Model Number: CGF8-8-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: standard wooden cases
Delivery Time: 35 working days
Supply Ability: 99 sets per year
Detailed Product Description
Product Name: Water Bottling Machine Function: Rising Filling Capping
Model: CGF8-8-3 Capacity: 3000B/H (for 500ml)
Machint Type: Monobloc Rotary Machine Suitable Bottle: PET Bottle
Bottle Size: 250-1000ml Filling Material: Mineral Water, Purified Water
Material: SUS304
High Light:

automatic bottling machine

,

liquid bottle filling machine



8-8-3 The Cheapest 3 In 1 PET Bottled Drinking/Pure/Mineral/Water



Filling Machine







product description



This is the smallest capacity monobloc water machine, it has 8 rising heads, 8 filling



heads and 3 capping heads, the max capacity can reach 3000 bottles per hour ( for



500ml),it is suitable for PET bottle, mineral water, purified water, still water, flavor water



or other non-gas liquid.



features



1.The bottle water filling equipment adopts advanced human-machine interface control. High



quality international name brand key components.



2. Suspension bottle neck catcher structure allows the machine change the bottle type easily. By



changing the valves, it also can be used as hot filling machine.



3. Spring type rinsing catcher can wash both inside and outside of the bottle.



4. High accuracy pressure water filling mechanism, ensure the height and quatity of the water



filling.



5. Magnetic powered cap device ensures tightness and prevents damage of the caps.



6. Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps



thus eliminating uncapped bottle spillage.



7. Built-in safeguard mechanism ensures the safety of operator and machine.



8. High efficient air clean filter system ensures high sanitary requirements.



9. Low overall machine noise



10. Self-lubricating system imported from America provides continuous smooth operation.



11. This machine is designed for bottling non-air drinks,such as pure water,mineral water etc, it



integrates bottle washing, filling and capping into one monobloc unit.





technical parameter



Model: CGF8-8-3
Capacity:500ml(b/h) 3000
Suitable Bottle Height(mm) 130-280
Suitable Bottle Body Diameter(mm) Φ40-φ80
Suitable Cap Shape Plastic Screw Cap
Filling Precision ≤±5mm(Liquid Level)
Power: (KW) 3
Filling Temperature: Room Temperature
Water Pressure of Washing Bottle(Mpa) 0.18
Water Consumption for Washing Bottle(kg/hr) 800
Gas Source Pressure(Mpa) Normal Pressure
Gas Consumption(m 3 /min) 0.3
Size L×W×H (mm) 1900x1400x2350
Total Weight:(kg) 1500
Power Supply 380V/50HZ





product pictures

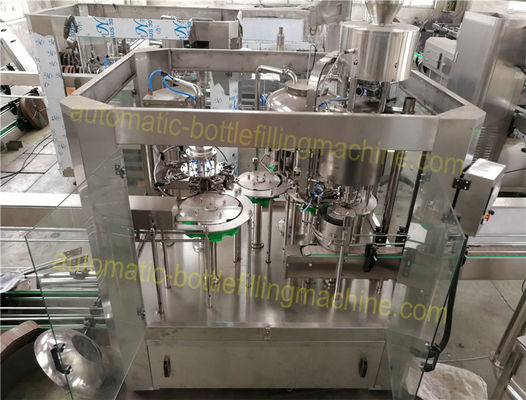

ovreall look



Small Capacity Fully Automatic Bottle Filling Machines 3 In 1 For Still / Flavor Water CGF8-8-3 0

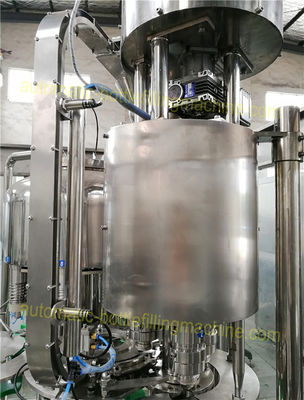

internal look



Small Capacity Fully Automatic Bottle Filling Machines 3 In 1 For Still / Flavor Water CGF8-8-3 1



exit conveyor



Small Capacity Fully Automatic Bottle Filling Machines 3 In 1 For Still / Flavor Water CGF8-8-3 2
