| Product Name: | Water Bottling Machine | Function: | Rising Filling Capping |
|---|---|---|---|
| Model: | CGF8-8-3 | Capacity: | 3000B/H (for 500ml) |
| Machint Type: | Monobloc Rotary Machine | Suitable Bottle: | PET Bottle |
| Bottle Size: | 250-1000ml | Filling Material: | Mineral Water, Purified Water |
| Material: | SUS304 | ||
| High Light: | automatic bottling machine,liquid bottle filling machine |
||
3000BPH 250-2000ml Bottled Purified Water Making Rotary
Machine / Production Line
product description
This is the smallest capacity monobloc water machine, it has 8 rising heads, 8 filling
heads and 3 capping heads, the max capacity can reach 3000 bottles per hour ( for
500ml),it is suitable for PET bottle, mineral water, purified water, still water, flavor water
or other non-gas liquid.
technical parameter
| Model: | CGF8-8-3 |
| Capacity:500ml(b/h) | 3000 |
| Suitable Bottle Height(mm) | 130-280 |
| Suitable Bottle Body Diameter(mm) | Φ40-φ80 |
| Suitable Cap Shape | Plastic Screw Cap |
| Filling Precision | ≤±5mm(Liquid Level) |
| Power: (KW) | 3 |
| Filling Temperature: | Room Temperature |
| Water Pressure of Washing Bottle(Mpa) | 0.18 |
| Water Consumption for Washing Bottle(kg/hr) | 800 |
| Gas Source Pressure(Mpa) | Normal Pressure |
| Gas Consumption(m 3 /min) | 0.3 |
| Size L×W×H (mm) | 1900x1400x2350 |
| Total Weight:(kg) | 1500 |
| Power Supply | 380V/50HZ |

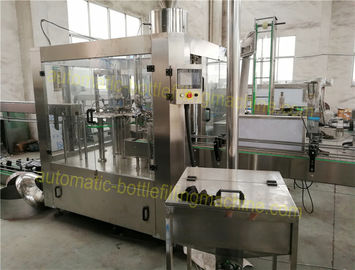

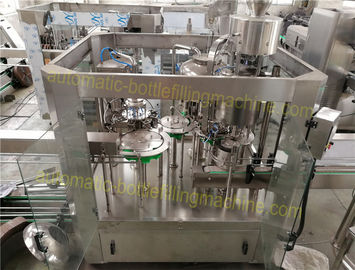

product pictures

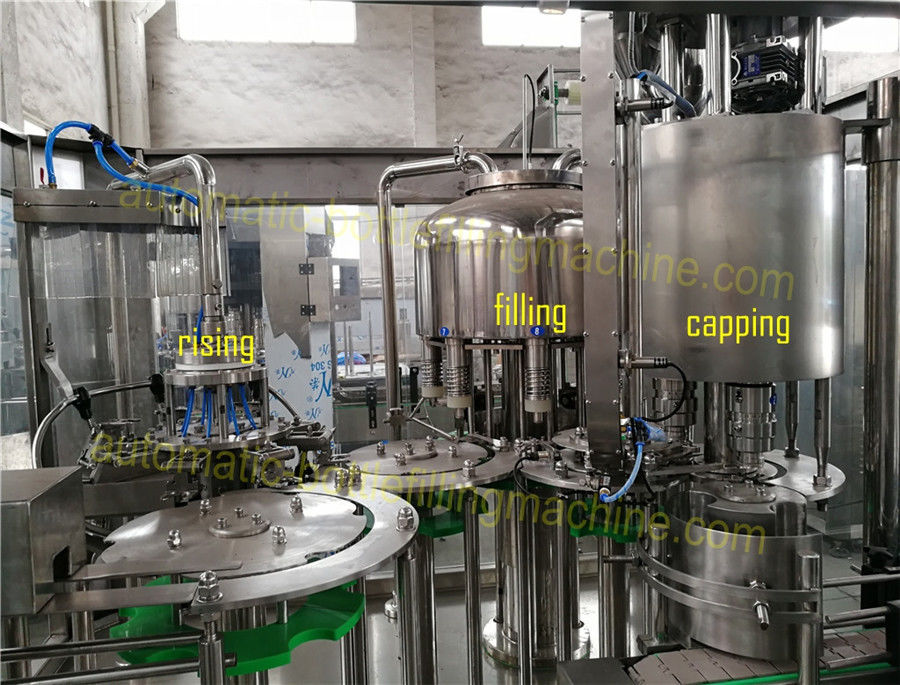

rising
filling
capping
features
1.The bottle water filling equipment adopts advanced human-machine interface control. High
quality international name brand key components.
2. Suspension bottle neck catcher structure allows the machine change the bottle type easily. By
changing the valves, it also can be used as hot filling machine.
3. Spring type rinsing catcher can wash both inside and outside of the bottle.
4. High accuracy pressure water filling mechanism, ensure the height and quatity of the water
filling.
5. Magnetic powered cap device ensures tightness and prevents damage of the caps.
6. Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps
thus eliminating uncapped bottle spillage.
7. Built-in safeguard mechanism ensures the safety of operator and machine.
8. High efficient air clean filter system ensures high sanitary requirements.
9. Low overall machine noise
10. Self-lubricating system imported from America provides continuous smooth operation.
11. This machine is designed for bottling non-air drinks,such as pure water,mineral water etc, it
integrates bottle washing, filling and capping into one monobloc unit.
