Touch Screen Automatic Milk Filling Machine With Bottle Neck Holding Transmission Technology

Certification
Good quality Water Bottle Filling Machine for sales
Good quality Water Bottle Filling Machine for sales
Customer Reviews
Your machine quality is very good and technical team very professional, hope our products sell well!

—— Shiferaw Habte

I have worked with them for five years, their juice and carbonated machine help me spread my busniess acorss Africa, this year we place an 24000BPH carbonated line, looking forward to the machine installation in our factory early.

—— Umesh

I'm Online Chat Now

Touch Screen Automatic Milk Filling Machine With Bottle Neck Holding Transmission Technology

China Touch Screen Automatic Milk Filling Machine With Bottle Neck Holding Transmission Technology supplier
Touch Screen Automatic Milk Filling Machine With Bottle Neck Holding Transmission Technology supplier Touch Screen Automatic Milk Filling Machine With Bottle Neck Holding Transmission Technology supplier Touch Screen Automatic Milk Filling Machine With Bottle Neck Holding Transmission Technology supplier Touch Screen Automatic Milk Filling Machine With Bottle Neck Holding Transmission Technology supplier Touch Screen Automatic Milk Filling Machine With Bottle Neck Holding Transmission Technology supplier

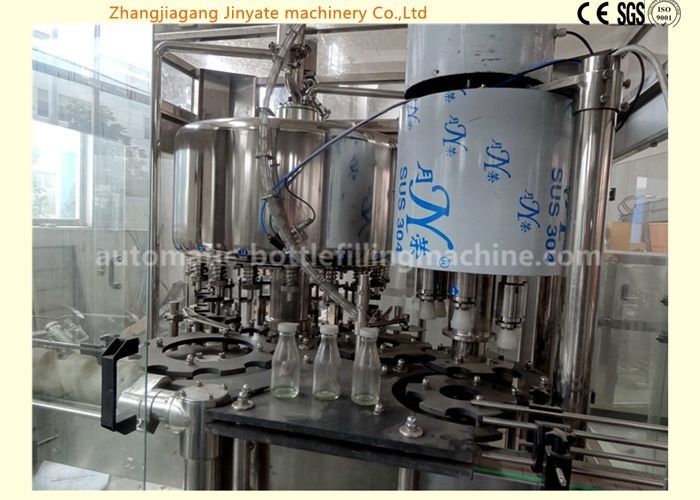

Large Image :  Touch Screen Automatic Milk Filling Machine With Bottle Neck Holding Transmission Technology

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF18-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden Boxes
Delivery Time: 30-45 working days
Payment Terms: L/C, T/T
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Bottle Type: Glass Bottle Overall Dimension(L*W*H): 2000*1800*2200mm
Filling Temperature: Room Temperature Control System: PLC Control+touch Screen
Function: Bottle Filling Capping Material: SS304/316
Voltage: Subject To Client's Country Power Condition: New New



Pure Milk Glass Bottle Sealing Machine Manufacturing Plant Filling



Machine



Brief introduction



1. This hot filling equipment adopts bottle neck holding transmission technology to realize fully automatic



filling and capping .



2. It is equipped with perfect temperature control system , reverse -flow system ,automatic cleaning system



and control program .



3. Each machine element that contacts with the liquid is made of hight quality stainless steel and good



grade rubber .





Product Description:



(1) The milk filling machine has two functions for bottle filling and capping, which are composed in one



body of the machine . The whole process is full automatic.



(2) This machine is used in filling milk,mineral water, drinking water, flavor water, etc. in bottles made of



polyester and plastics .



(3) The filling packaging operation is faster and more stable because the micro pressure filling operation



of the new type is adopted . There the output and benefit of the machine is higher than the machinery of



the same specifications .



(4) PLC control, full automatic working .



(5) Touch-screen control panel, easy operation.



(6) Singel positional adjustable central transmission post, more stable lable transmission .



(7) Screw rod of separate bottle: stable transportation of bottles.



(8) Label control sensor shelf: original creation tail surface and sensor are combined to improce the



precision of cutting the material .





Technique parameter



Model RGF18-6
Productivity 6000BPH
Filling Head 18
Capping Head 6
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 3 m3/h
Rinsing Water Consumption 1 m3/h
Motor Power 6.68kW
Voltage 380V
Dimension (L×W×H) 2450*1800*2200mm
Weight 3000kg
Filling Principle Gravity Filling


Touch-screen control panel



Touch Screen Automatic Milk Filling Machine With Bottle Neck Holding Transmission Technology



Conveyor


Touch Screen Automatic Milk Filling Machine With Bottle Neck Holding Transmission Technology



Inner look



Touch Screen Automatic Milk Filling Machine With Bottle Neck Holding Transmission Technology



If you want the detailed quotation including price,and the video of the



machine or complete line,please kindly leave me the following



information!!!!!!!


1, bottle vlolume


2, bottle materail (machines for glass bottle and plastic bottle are different)


3, how many bottles per hour you want to produce ?


4, do you need this water filling machines only or whole production line
