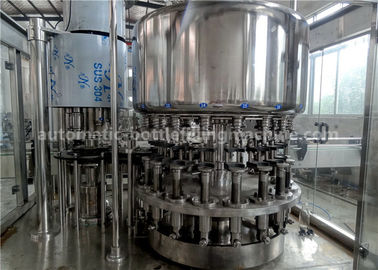

PLC Control Glass Milk Bottle Filling Machine 6000BPH 500ML For Beverage Factory

PLC Control Glass Milk Bottle Filling Machine 6000BPH 500ML For Beverage Factory
PLC Control Glass Milk Bottle Filling Machine 6000BPH 500ML For Beverage Factory

Large Image :  PLC Control Glass Milk Bottle Filling Machine 6000BPH 500ML For Beverage Factory

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF18-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden Boxes
Delivery Time: 30-45 working days
Payment Terms: L/C, T/T
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Bottle Type: Glass Bottle Bottle Volume: 200ml-2L(adjustable)
Overall Dimension(L*W*H): 2000*1800*2200mm Capacity: 6000BPH(500ml)
Warranty: One Year Filling Temperature: Room Temperature
Control System: PLC Control+touch Screen Automatic Grade: Fully-automatic
High Light:

milk bottle filling machine

,

milk processing equipment

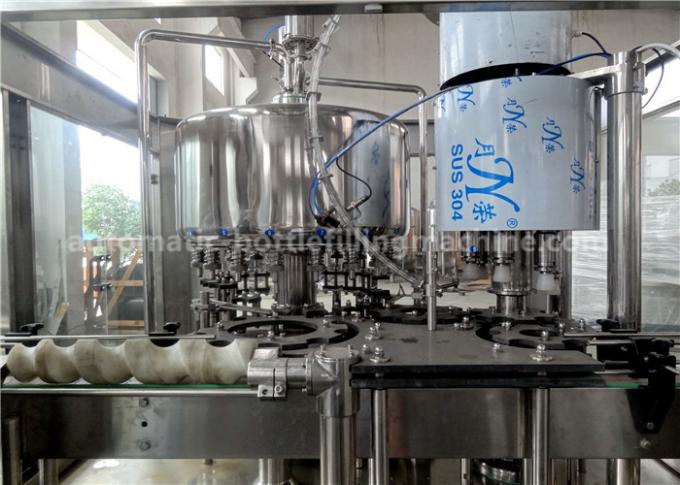

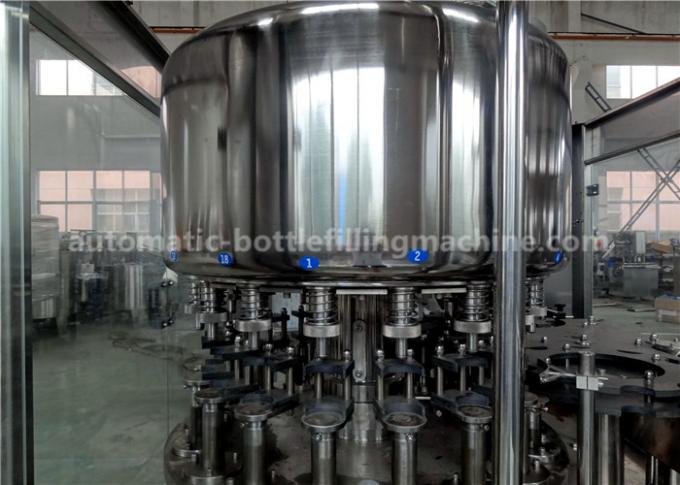

Automatic Glass Bottle UHT Milk Filling And Capping Machine For



Beverage Factory


Specification

1. Capacity:6000 bottles per hour

2. glass bottle filling capping 2-in-1 monoblock machine.

3. UHT type Ultra temperature Instantaneous Sterilizer


Feature

The machine is mainly used in beverage filling operations,the two functions of bottle filling and capping

are composed in one body of the machine

The 2-in-1 monoblock filling machine is suitable for fill milk,juice,water,tea with glass bottle

The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control

technology

The machine can be connected with UHT, CIP control center and bottle-invert sterilizer

The machine structure is reasonable and firm, the running state is stable

The suspension bottle neck catcher allows the machine change the bottle type easily Safe protective

devices ensure safety of operator and machine

Unique control mechanism keeps circumfluence volume below 5%

High efficient clean air filter circulation system ensures high sanitary requirements


Technique parameter

Model RGF18-6
Productivity 6000BPH
Filling Head 18
Capping Head 6
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 3 m3/h
Rinsing Water Consumption 1 m3/h
Motor Power 6.68kW
Voltage 380V
Dimension (L×W×H) 2450*1800*2200mm
Weight 3000kg
Filling Principle Gravity Filling


Customized service

1. We can design the machines according your requirements (materil ,power,filling type,bottles, and so

on),at the same time we will give you our professional suggestion,as you know,we have been in this

industry for many years.

2. We offer free technical support and consultation,such as draw the factory layout for you, alalyze the

source water report and so on.

After-sales service

1. We will delivery the machine and provide the bill of load on time to make sure you can get the machine

quickly.

2. When you finish the Preparation conditions ,our fast and professional after service engineer teamwill go

to your factory to install the machine,give you the operating manual ,and train your employee until they

can operate the machine well.

3. We provide one year warranty with spare parts free.

4. We ask the feedback from our customer and offer some help when the machine have been used for

some time.
